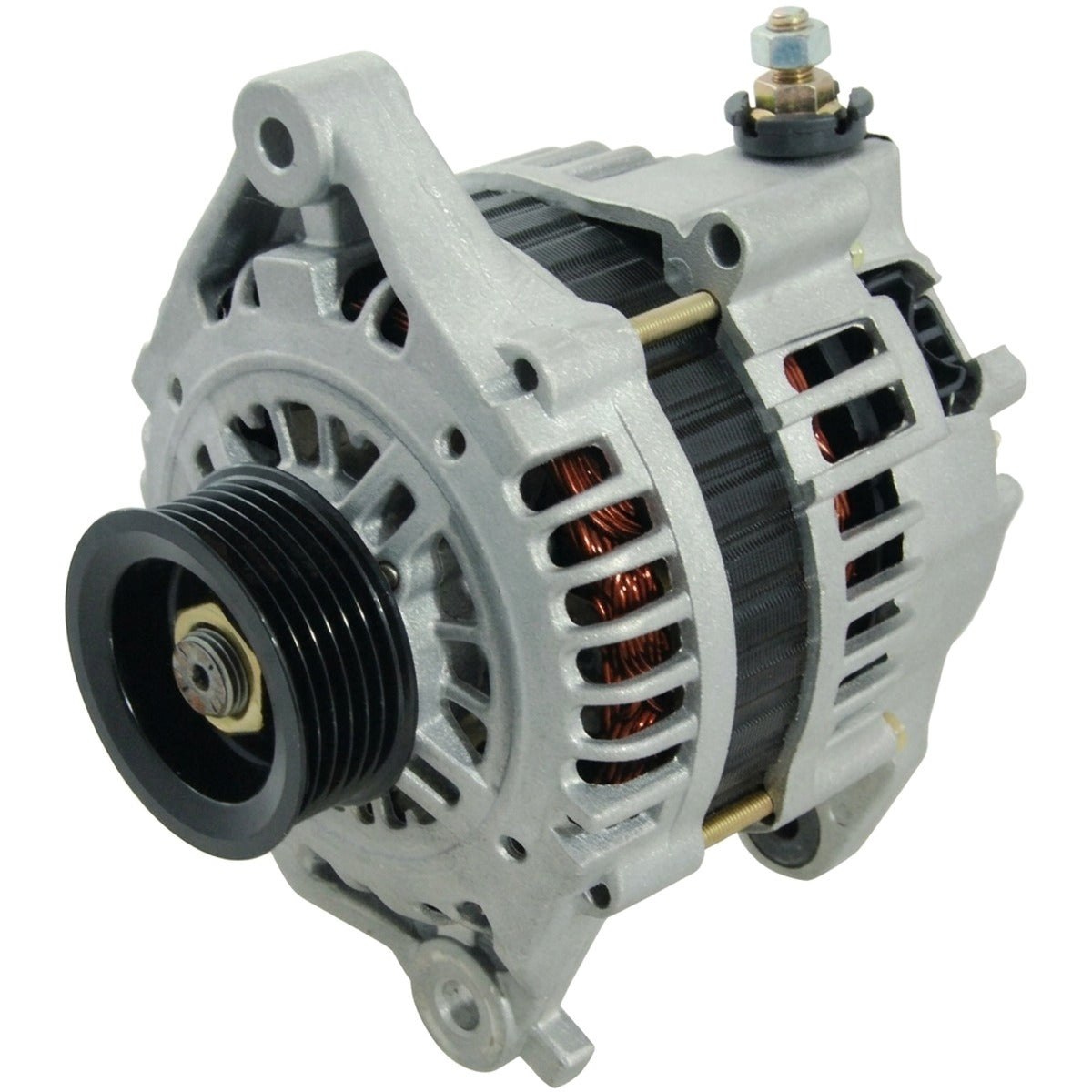

High Output Alternator for Nissan Sentra (2000-2006) 1.8L

High-Output 200 Amp Alternator for 2000-2006 Nissan Sentra (B15)

What it Does: The high output 200-amp alternator replaces the low-capacity factory charging unit on the 2000-2006 Sentra to stabilize electrical system voltage and supply sufficient current for high-draw aftermarket accessories.

The Stock Nissan Sentra Charging Limitation

The factory B15 platform relies on an undersized 80-to-100-amp alternator that struggles under increased current draw. When accessories such as aftermarket amplifiers, onboard electronics, or auxiliary lighting are installed, the stock stator and diodes quickly reach thermal saturation. This electrical bottleneck leads to substantial voltage drop at hot idle, dimming headlamps, sluggish accessory operation, and accelerated battery wear due to constant deep cycling.

The Engineering Solution

This Made in USA 200-amp high-output unit solves current starvation by delivering over double the amperage of the OEM unit. Built with precision heavy-gauge copper windings, premium dual-sealed bearings, and a heavy-duty internal rectifier using high-amperage avalanche diodes, it maintains an optimal 14.4-volt charging baseline across the entire rev range. The housing maintains direct factory mounting geometry for the QG18DE engine, providing clean, bolt-on electrical stability without bracket fabrication.

What's Included

• 1 Alternator (200 Amp)

Technical Specifications

Compatibility

• 2000-2006 Nissan Sentra XE 1.8L L4
• 2000-2006 Nissan Sentra GXE 1.8L L4
• 2004-2006 Nissan Sentra Base 1.8L L4
• 2004-2006 Nissan Sentra S 1.8L L4

Frequently Asked Questions & Fitment Warnings

Does this fit the B15 Sentra?

Yes, this is a direct fit for the 2000-2006 Nissan Sentra equipped with the QG18DE 1.8L engine. This alternator does not fit Sentra models equipped with the 2.0L SR20DE or 2.5L QR25DE engines.

Do I need to upgrade my charging cables for a 200-amp alternator?

Yes, installing a "Big 3" electrical upgrade using 0-gauge or 4-gauge OFC wiring is strongly recommended to safely carry 200 amps without excessive resistance or risk to factory harness wires.

The Nissan Standard

Keep your JDM commuter running smoothly with clean, uninterrupted electrical power designed to protect ignition systems, ECUs, and aftermarket components under high continuous demand.
