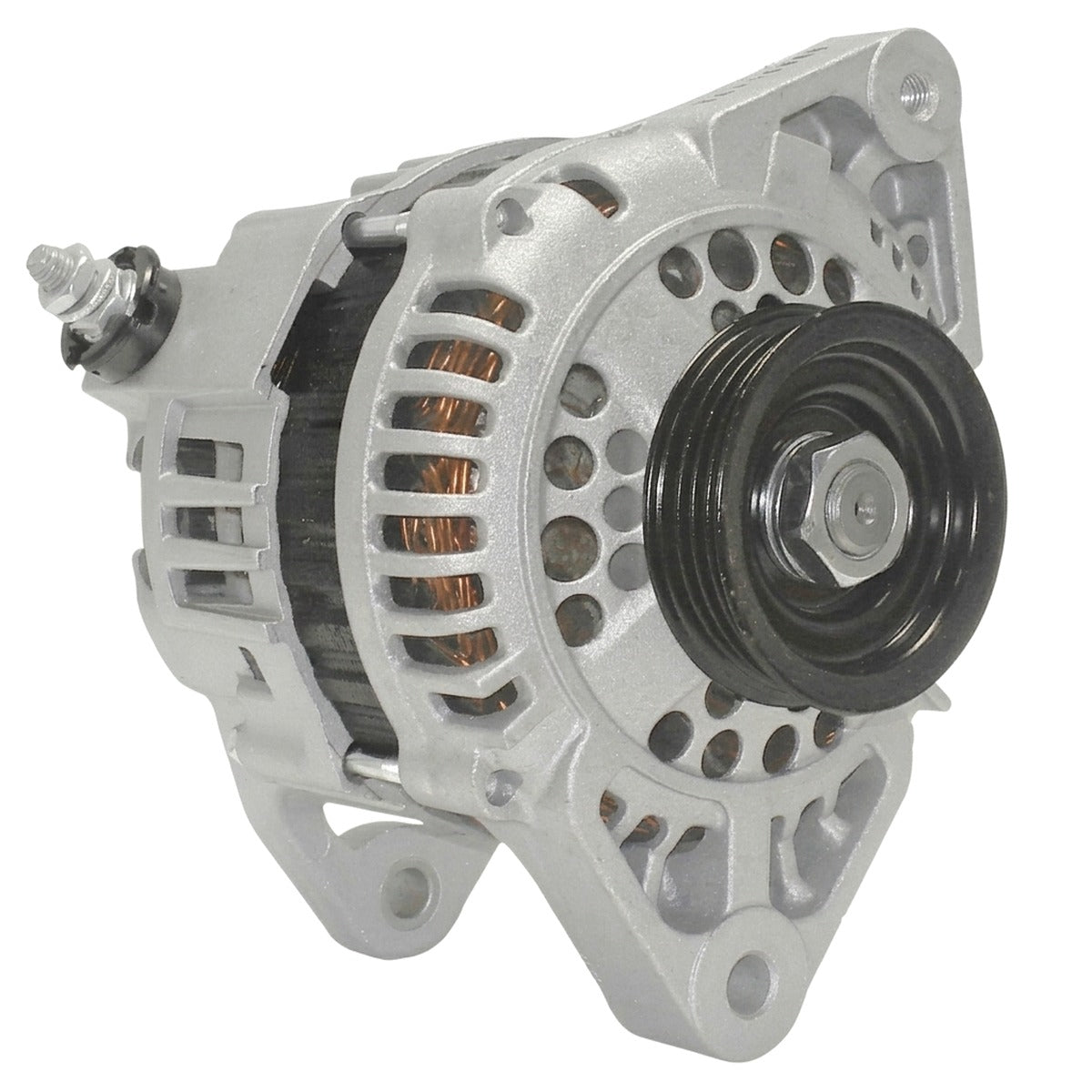

High Output Alternator for Nissan 240SX (1995-1998) 2.4L

High-Amp 180A Direct-Fit Alternator for 1995-1998 Nissan 240SX (S14)

What it Does: The 180 Amp High Output Alternator replaces the factory low-output charging unit on the 1995-1998 Nissan 240SX to eliminate voltage drop and deliver consistent electrical current to demanding aftermarket electronics and ignition systems.

The Stock Nissan 240SX Charging Deficiency

The OEM charging system on the S14 chassis utilizes an aging 80 to 90-amp alternator engineered exclusively for basic factory electronics. When modern performance upgrades are introduced—such as high-flow dual electric fans, high-draw auxiliary fuel pumps, standalone ECUs, and high-energy ignition coils—the factory stator core cannot sustain required amperage at idle. This deficit results in severe system voltage drops below 12.5V, causing ignition misfires, fluctuating fuel pressures, erratic sensor signals, and premature diode failure driven by thermal saturation.

The Engineering Solution

Engineered and assembled in the USA, this high-output direct-replacement unit delivers a sustained 180 amps to stabilize the 12-volt bus under peak electrical loads. Built with a high-efficiency copper stator winding, heavy-duty internal rectifiers, and premium avalanche diodes, it significantly improves heat dissipation and resists thermal breakdown. The rotor and stator balance provides exceptional idle-current generation, maintaining a steady 14.2V–14.6V charging threshold to protect sensitive engine management electronics on your KA24DE.

What's Included

• 1 x 180 Amp High Output Alternator

Technical Specifications

Compatibility

• 1995 Nissan 240SX Base, SE (2.4L L4 KA24DE)
• 1996 Nissan 240SX Base, SE (2.4L L4 KA24DE)
• 1997 Nissan 240SX Base, SE, LE (2.4L L4 KA24DE)
• 1998 Nissan 240SX Base, SE, LE (2.4L L4 KA24DE)

Frequently Asked Questions & Fitment Warnings

Does this fit the S14 240SX?

Yes, this is a direct bolt-on fit for the 1995-1998 Nissan 240SX equipped with the KA24DE 2.4L engine.

Should I upgrade my charging wiring with this alternator?

Yes, running an upgraded 4-gauge battery-to-alternator fused charge lead ("Big 3" upgrade) is highly recommended to safely handle the continuous 180-amp capacity without bottlenecking.

The Nissan Track-Caliber Standard

On high-performance rear-wheel-drive builds, consistent operating voltage is the difference between solid ignition performance and engine-damaging misfires under full throttle.
