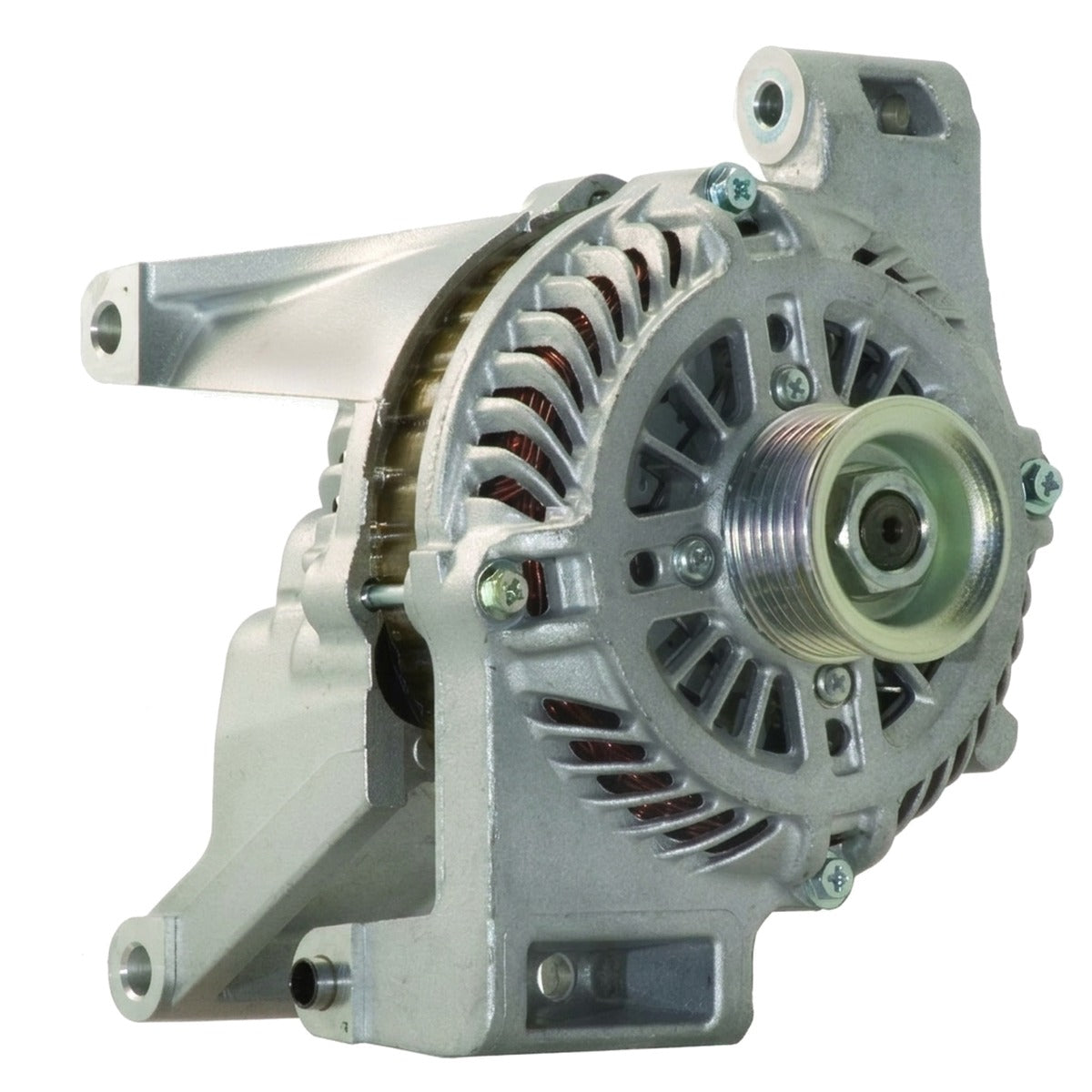

High Output Alternator for Mazda 5 (2006-2007) 2.3L

High-Output 250-Amp Alternator for 2006-2007 Mazda 5 (CR)

What it Does: The high-output 250-amp alternator replaces the low-output factory charging unit on the 2006-2007 Mazda 5 to deliver continuous electrical stability, eliminate voltage sag, and support heavy auxiliary loads.

The Stock Mazda 5 Charging Limitations

The original factory charging unit on the CR chassis delivers a baseline 90 to 110 amps, leaving almost zero headroom beyond powering basic engine management, dual power sliding doors, and cabin blower motors. Under heavy load or when driving auxiliary electronic equipment, the factory stator windings face rapid thermal saturation. This severe underhood heat soak increases internal resistance, precipitating diode breakdown, stator burn-out, and noticeable idle-speed voltage drops that starve the MZR L3-VE ignition coils of optimal operating voltage.

The Engineering Solution

Manufactured in the USA, this high-amperage 250-amp platform replaces delicate OEM-spec internals with heavy-duty hairpin copper windings, low-resistance avalanche diodes, and a high-efficiency bridge rectifier. This design guarantees aggressive current generation even at curb idle while dramatically minimizing rotor drag and thermal buildup. Built into a precise direct-fit cast housing, it retains factory mounting points and OEM serpentine belt geometry while replacing OEM references LF50-18-300, LF50-18-300A, and 11008 without custom brackets.

What's Included

• 1x 250-Amp High-Output Alternator

Technical Specifications

Compatibility

• 2006 Mazda 5 2.3L 4-Cylinder (Sport, Touring)
• 2007 Mazda 5 2.3L 4-Cylinder (Sport, Touring, Grand Touring)

Frequently Asked Questions & Fitment Warnings

Does this fit the CR 5?

Yes, this is a direct fit for the 2006-2007 Mazda 5 equipped with the 2.3L MZR L3-VE engine.

Do I need to upgrade wiring during installation?

Yes, executing a 4-gauge or 1/0-gauge "Big 3" charging wire upgrade from the alternator positive post to the battery and chassis ground is strongly recommended to safely carry 250 amperes.

The Mazda Performance Standard

Purpose-built to support demanding JDM tuner electronics, high-draw audio setups, and severe electrical demands, this charging upgrade supplies clean, uninterrupted power across the entire RPM range of the MZR engine.
