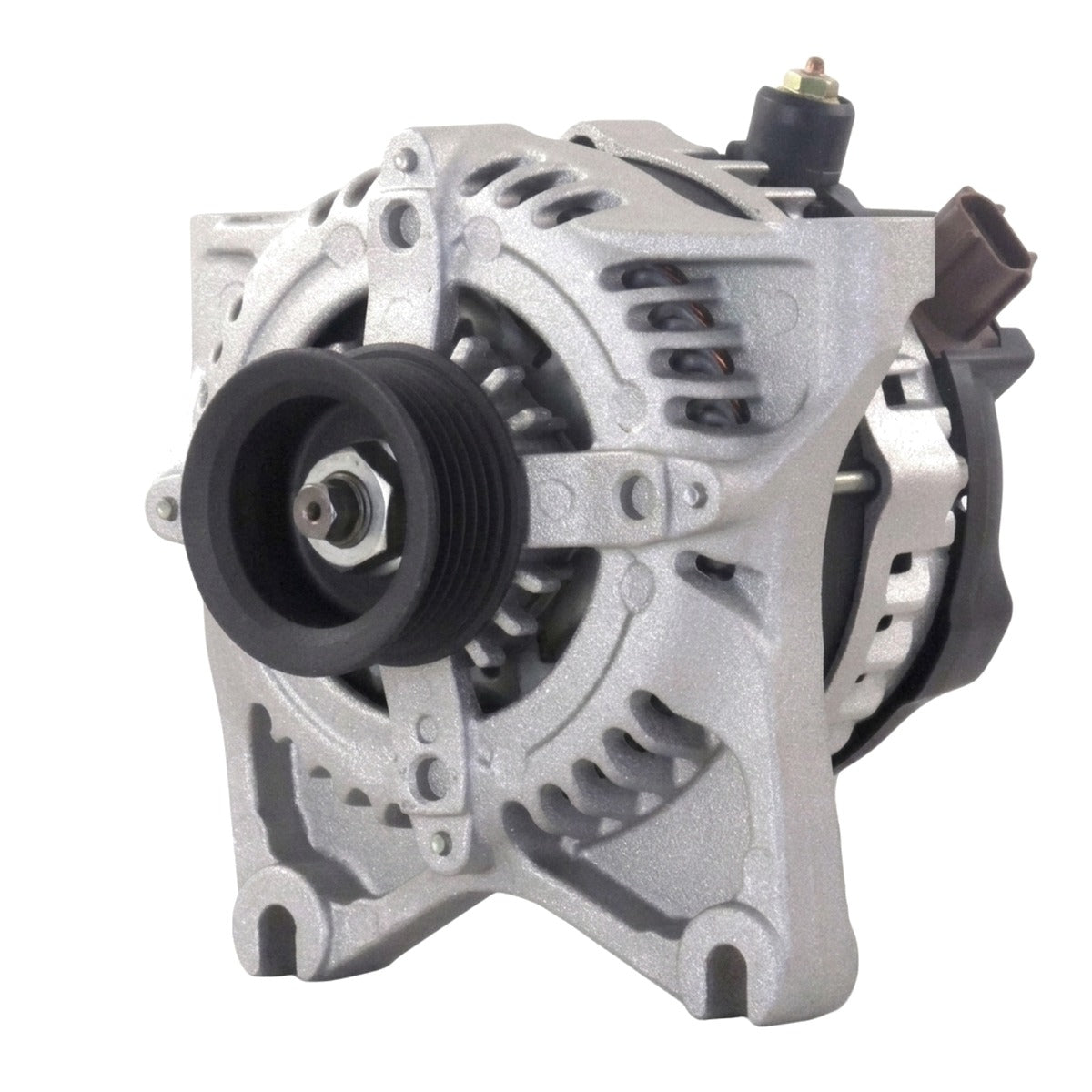

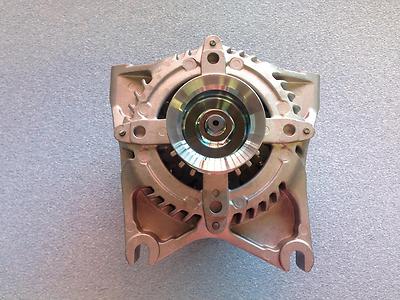

High Output Alternator for Lincoln Navigator (2005-2009) 5.4L

Heavy-Duty 250-Amp High Output Alternator for 2005-2009 Lincoln Navigator (U228 / U326)

What it Does: The 250-amp high output alternator replaces the lower-capacity stock charging unit on the 2005-2009 Navigator to provide continuous, high-amperage stability and prevent system voltage drops under heavy auxiliary draw.

The Stock Lincoln Navigator Charging System Deficiencies

Factory charging systems on the U228 and U326 chassis rely on standard-output 130-amp to 150-amp units that frequently suffer thermal saturation under elevated electrical demands. The 5.4L Triton 3V platform supports significant onboard electronics, including rear-seat entertainment modules, multi-zone HVAC blowers, and air suspension compressors. When running secondary audio systems, off-road lighting, or towing brake controllers, the OEM unit experiences extreme heat soak, resulting in rotor winding degradation, diode failure, and severe voltage drops at idle speeds.

The Engineering Solution

Engineered as a heavy-duty bolt-on replacement, this 250-amp unit utilizes dense heavy-gauge copper windings and high-temp precision-balanced rotors to generate maximum current transfer with minimal parasitic drag. Heavy-duty avalanche silicon diode rectifiers and high-efficiency dual internal cooling fans dissipate heat rapidly, eliminating thermal throttling during prolonged idle conditions. This design delivers clean, spike-free electrical flow directly through the primary circuit, protecting vital onboard control modules and sensitive sensors.

What's Included

• 1x 250-Amp High Output Alternator

Technical Specifications

Compatibility

• 2005-2006 Lincoln Navigator Base 5.4L V8 (Chassis: U228)
• 2007-2009 Lincoln Navigator Base & L 5.4L V8 (Chassis: U326)

Frequently Asked Questions & Fitment Warnings

Does this fit the U228 / U326 Navigator?

Yes, this is a direct bolt-in fit for the 2005-2009 Lincoln Navigator equipped with the 5.4L Triton 3V engine using factory mounting geometry and harness connectors.

Do I need to upgrade my electrical wiring?

A 0/1-gauge "Big 3" charging cable upgrade is strongly recommended to safely transfer the full 250-amp capacity without overloading the factory wiring harness.

The Lincoln Towing and Luxury Standard

Built for luxury platforms tasked with demanding towing and payload duty cycles, this high-output charging unit ensures rock-solid 14.4-volt power stability across all operating temperatures.
