High Output Alternator for Lincoln Mark LT (2006-2008) 5.4L

High-Amp Heavy-Duty Alternator for 2006-2008 Lincoln Mark LT (P221)

What it Does: The 250-Amp High Output Alternator replaces the low-output factory charging unit on the 2006-2008 Lincoln Mark LT to deliver stable system voltage and prevent electrical starvation under severe accessory loads.

The Stock Lincoln Mark LT Charging Deficiencies

Factory charging systems on the P221 chassis were equipped with standard 110-amp to 130-amp alternators designed strictly for base vehicle draw. When operating the 5.4L Triton 3V under severe conditions, thermal soak inside the tight engine bay degrades the stock internal diode rectifiers, precipitating brush bounce and significant voltage drop at low idle RPM. Adding modern auxiliary components—such as aftermarket audio systems, supplemental lighting, onboard power inverters, or towing gear—readily exceeds factory stator capacity, leading to battery starvation, erratic electronic throttle control operation, and premature charging failure.

The Engineering Solution

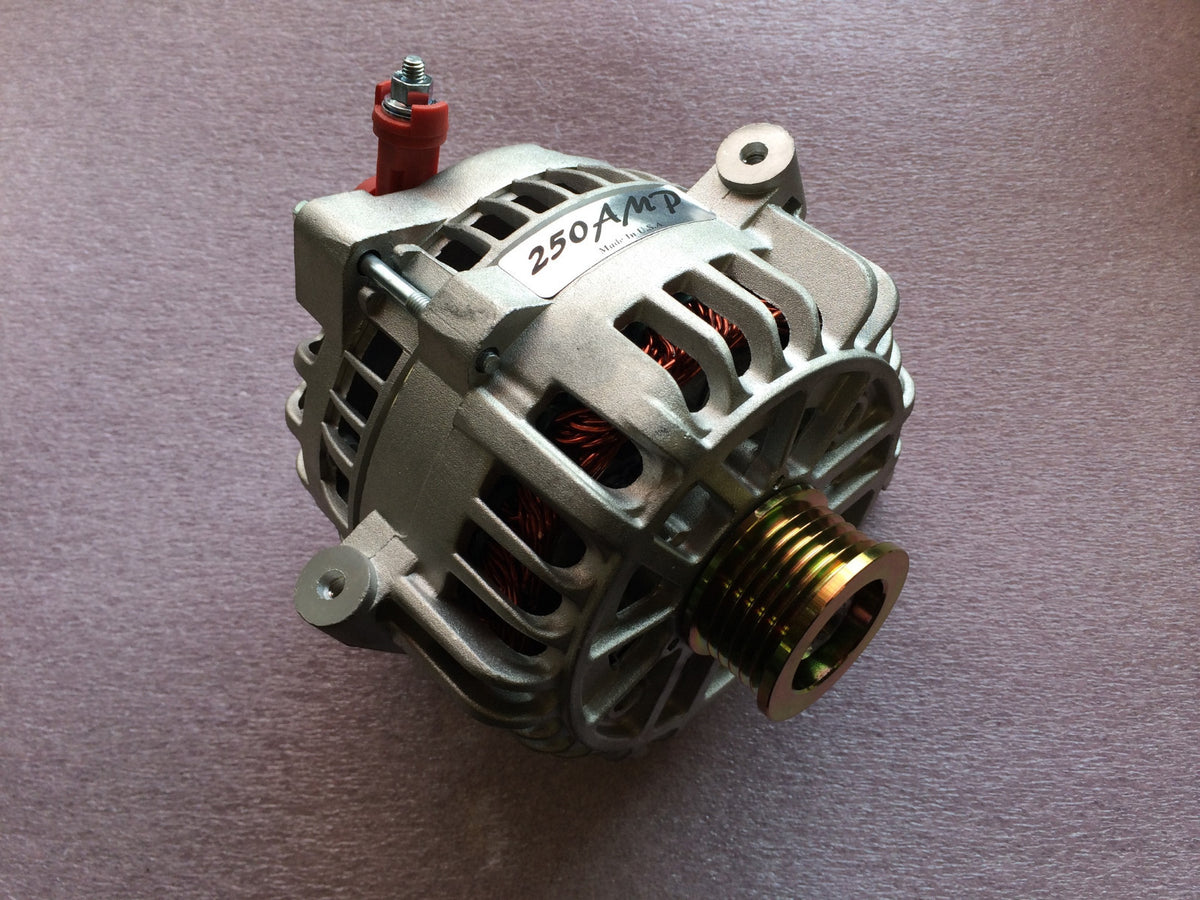

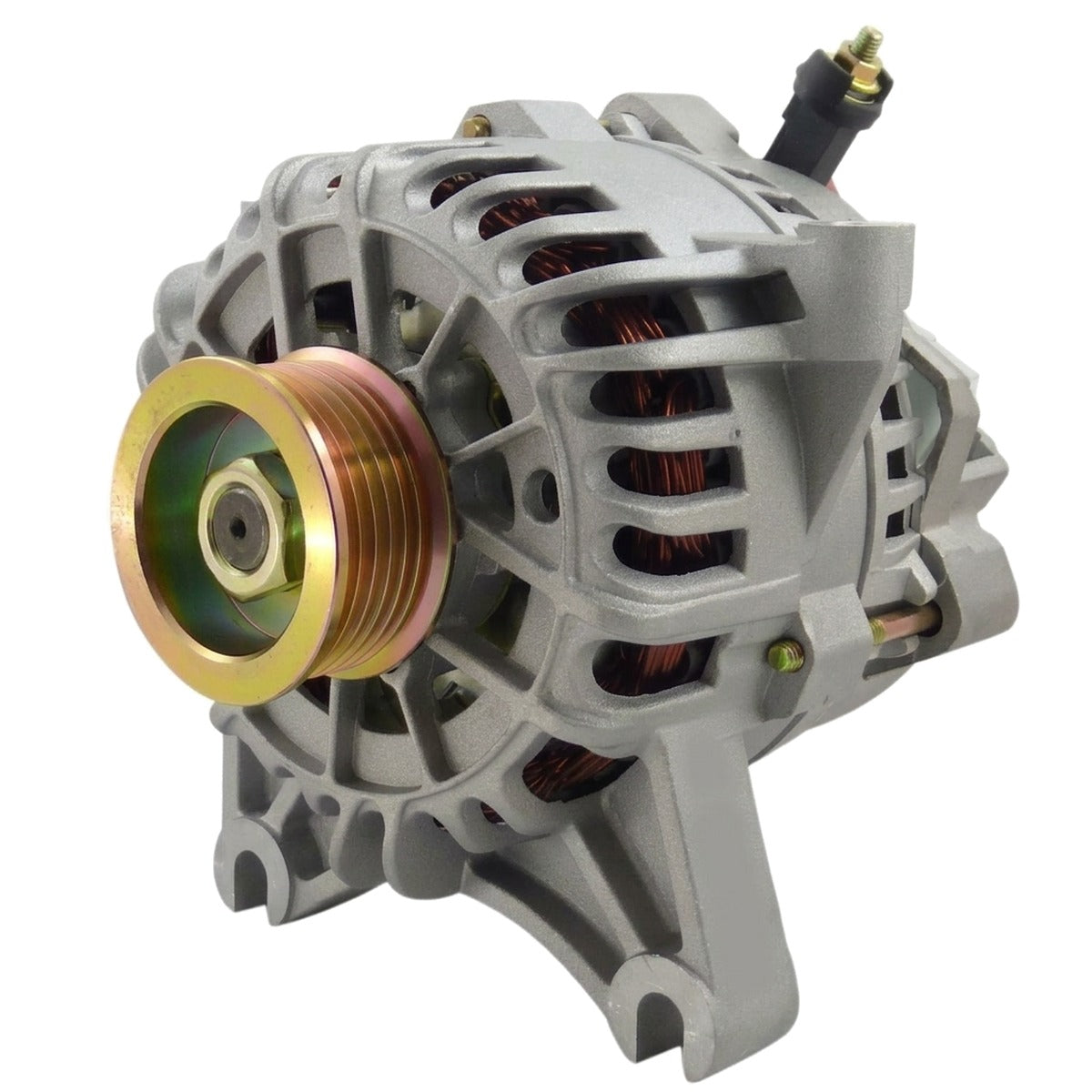

Engineered and assembled in the USA, this 250-amp heavy-duty charging unit provides a direct bolt-in electrical upgrade. Built using high-temperature copper hairpin stator windings, heavy-gauge internal lead wires, and an oversized avalanche diode rectifier bridge, this unit dissipates heat efficiently while maintaining maximum efficiency. The custom rotor and stator combination yields up to 165 amps at curb idle and peaks at 250 amps above 2,000 engine RPM, delivering clean DC current without strain on factory serpentine belt routing.

What's Included

• 1 250-Amp High Output Alternator

Technical Specifications

Compatibility

• 2006 Lincoln Mark LT Base 5.4L V8 (Modular 3-Valve SOHC)
• 2007 Lincoln Mark LT Base 5.4L V8 (Modular 3-Valve SOHC)
• 2008 Lincoln Mark LT Base 5.4L V8 (Modular 3-Valve SOHC)

Frequently Asked Questions & Fitment Warnings

Does this fit the P221 Mark LT?

Yes, this is a direct bolt-on fit for the 2006-2008 Lincoln Mark LT equipped with the 5.4L Triton 3V engine using OEM mounting brackets and wiring plugs.

Do I need to upgrade my main battery charge wire?

Yes, running an upgraded 1/0 or 4-gauge "Big 3" fused positive charge lead directly to the battery is strongly recommended to safely transmit 250 amps.

The Lincoln Durability Standard

Built for luxury workhorses, this high-output unit ensures your Mark LT retains full electrical stability during heavy towing, winch operation, and high-amperage payload runs without taxing the ignition or sensor systems.
