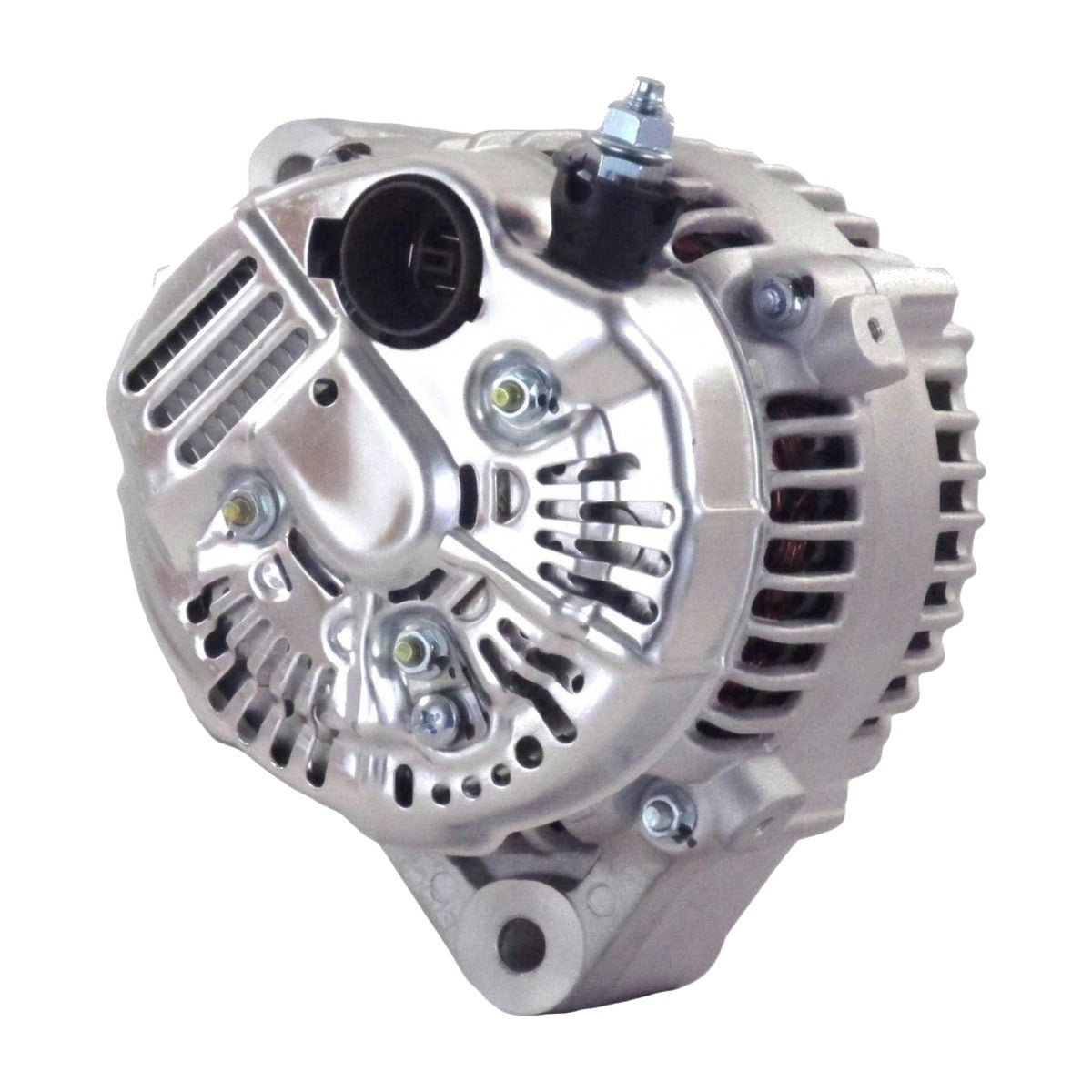

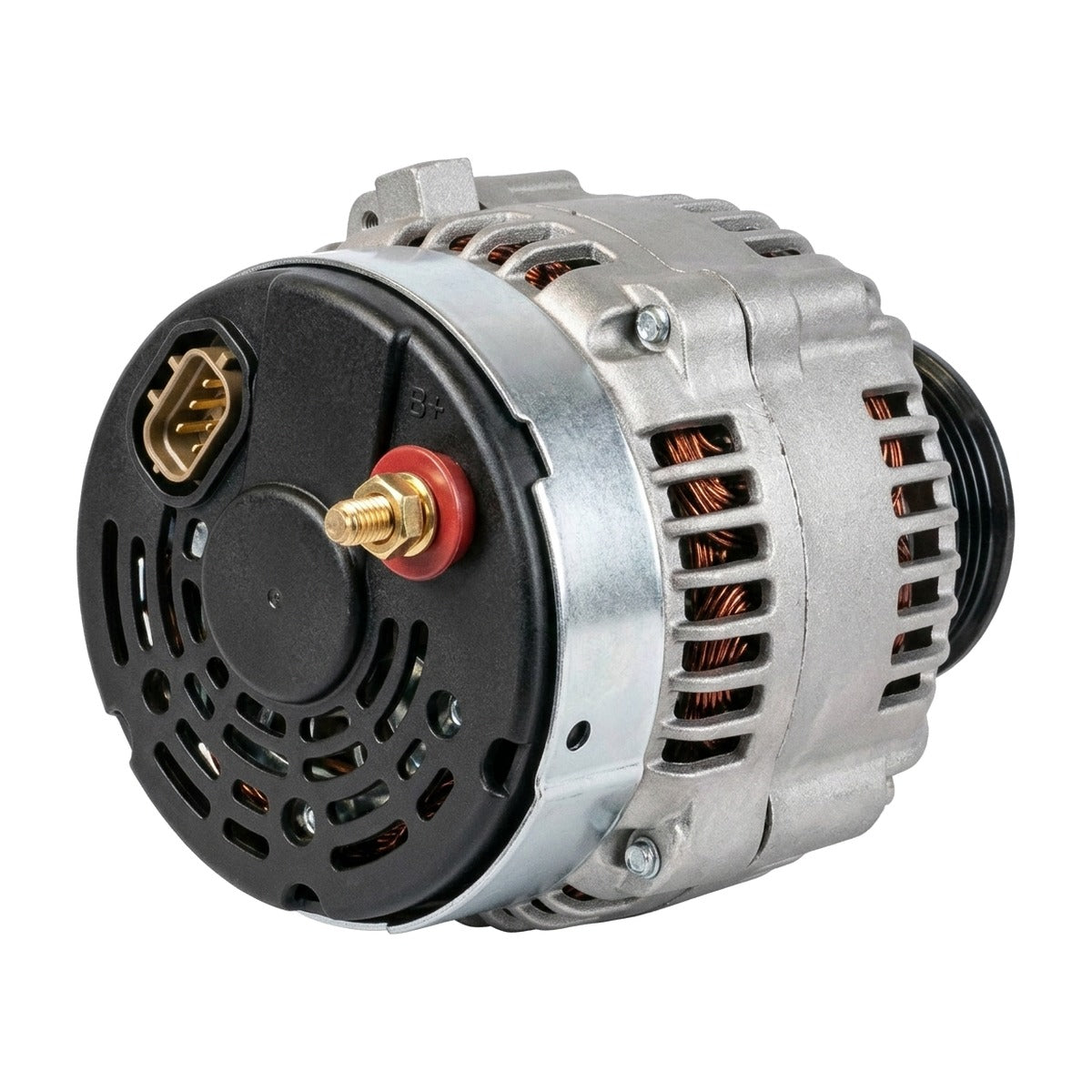

High Output Alternator for Lexus SC300 (1992-1994) 3.0L

High-Output 150A Alternator for 1992-1994 Lexus SC (Z30)

What it Does: The High Output Alternator replaces the low-output factory charging unit on the 1992-1994 Lexus SC300 to supply 150 amps of steady current and eliminate voltage drop under heavy electrical loads.

The Stock Lexus SC Charging Limitations

Factory alternators on the Z30 chassis were engineered for standard 1990s base loads, delivering limited amperage that struggles to support modern electronics. Over time, thermal fatigue and brush wear cause internal diode breakdown, resulting in fluctuating voltage, dimming dash instrumentation, and parasitic battery drain. Under low-RPM idle conditions, the stock unit cannot sustain upgraded audio setups, aftermarket electric cooling fans, or auxiliary lighting, starving the ignition circuit.

The Engineering Solution

This 150-amp direct replacement is wound with heavy-gauge oxygen-free copper stator wiring and features a precision-balanced rotor to minimize harmonic vibration at elevated RPM. Outfitted with high-temp sealed bearings and an integrated solid-state voltage regulator, it maintains a constant 13.5V to 14.5V output curve across the entire rev range. It retains OEM bracket alignment, drive pulley offset, and the factory plug interface for straightforward installation without harness alteration.

What's Included

• 1 Brand-New 150A High-Output Alternator

Technical Specifications

Compatibility

• 1992-1994 Lexus SC300 3.0L Inline-6 (2JZ-GE)

Frequently Asked Questions & Fitment Warnings

Does this fit the Z30 SC?

Yes, this is a direct fit for the 1992-1994 Lexus SC equipped with the 2JZ-GE engine. Does not fit 4.0L 1UZ-FE V8 models due to different bracket geometry and terminal plug orientation.

Should I upgrade my power cables with this alternator?

While compatible with factory wiring, upgrading the primary B+ charging lead and ground straps to 4-gauge wire is recommended to fully utilize the 150-amp capacity without thermal resistance.

The Lexus JDM Performance Caliber

Engineered to match the bulletproof architecture of the legendary inline-six platform, this charging unit supplies the clean, uninterrupted power required to run modern electronics without sapping engine output.
