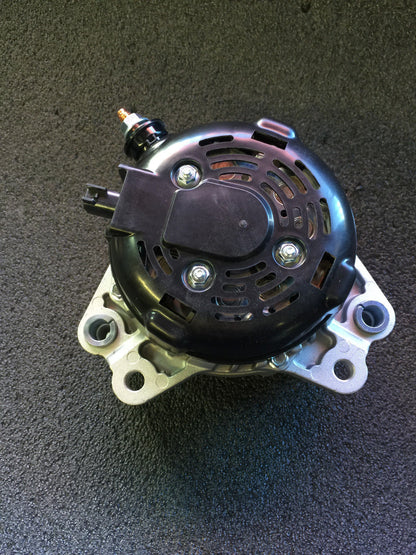

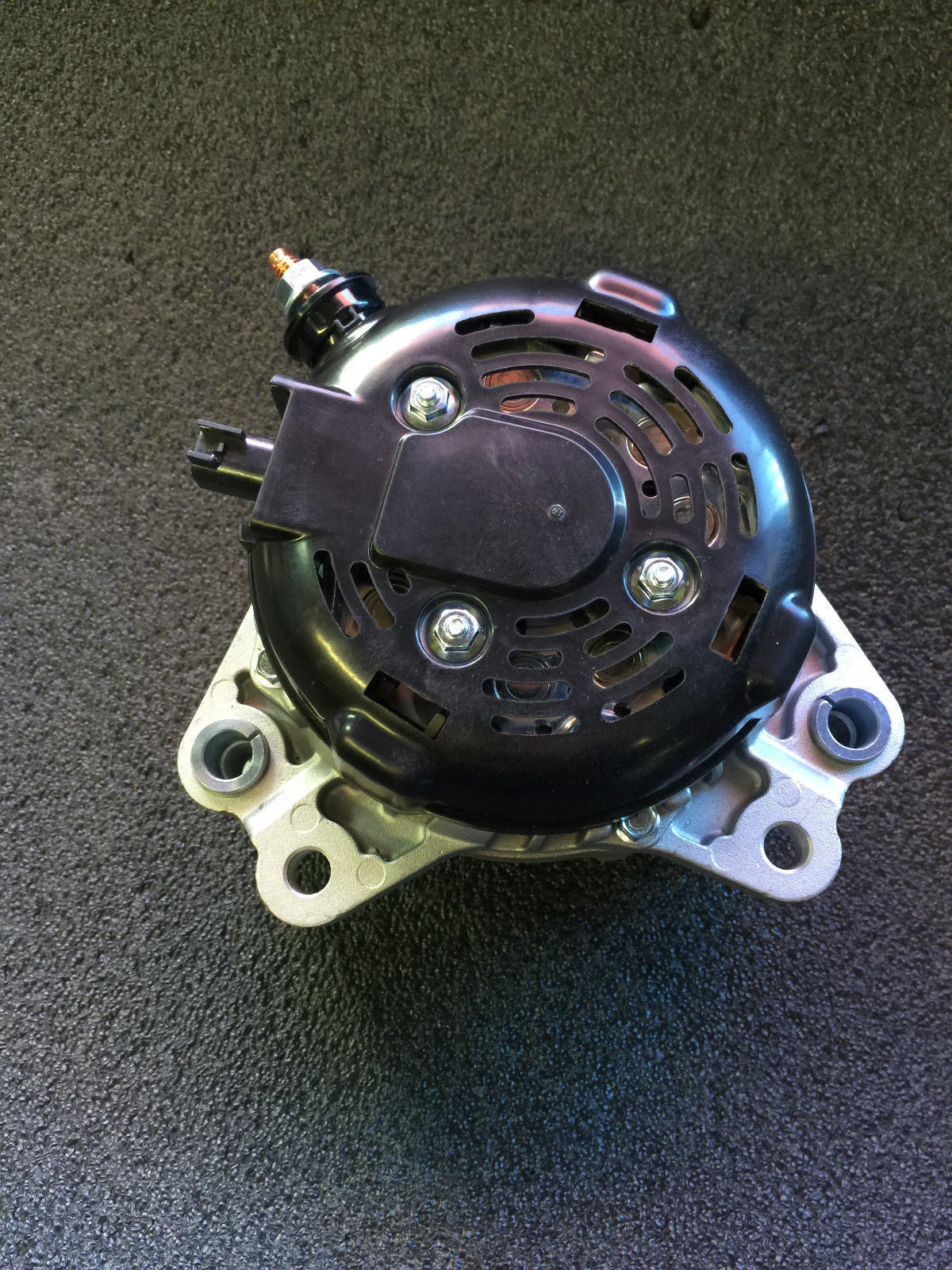

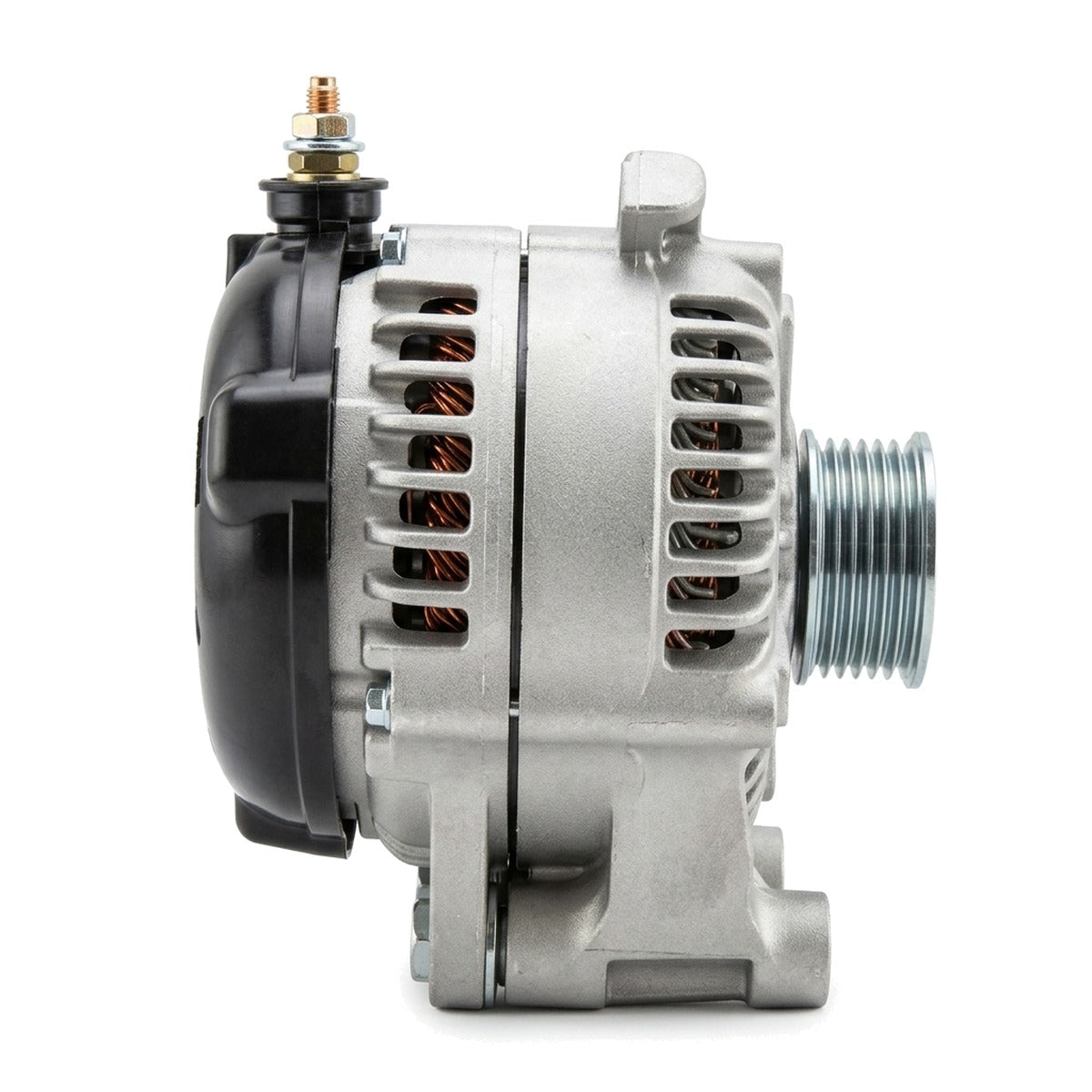

High Output Alternator for Jeep Wrangler (2012-2018) 3.6L

High-Output 350-Amp Alternator for 2012-2018 Jeep Wrangler (JK)

What it Does: The 350-amp high-output alternator replaces the factory charging unit on 2012-2018 Wrangler JK models to supply clean, high-amperage current for high-draw winches, auxiliary lighting, and onboard electronics without voltage drop.

The Stock Jeep Wrangler Electrical Bottleneck

The factory charging system on the JK platform yields between 140 and 160 amps, which becomes an immediate failure point once demanding overland accessories are introduced. Heavy winch operations regularly draw in excess of 400 amps under load, while high-output LED light bars, communication gear, and 12V trail refrigeration rapidly deplete available reserve capacity. When electrical consumption outpaces OEM alternator output, system voltage drops below 12.6V, triggering severe battery sulfation, rotor and stator thermal breakdown, and communication dropouts across sensitive CAN-bus powertrain control modules.

The Engineering Solution

Proudly manufactured in the USA, this direct-replacement 350-amp unit is engineered to resolve high electrical draw demands at low idle and highway speeds alike. Designed with high-temperature precision hairpin stators, heavy-gauge pure copper windings, and oversized internal heat sinks paired with dual avalanche diodes, it mitigates heat soak under severe duty cycles. It installs cleanly into the factory Pentastar 3.6L accessory drive bracket, preserving OEM serpentine belt geometry while replacing OEM references 68078950AA and 421000-0810 without requiring bracket alterations.

What's Included

• 1x 350-Amp High Output Alternator

Technical Specifications

Compatibility

• 2012-2018 Jeep Wrangler 3.6L V6 (Sport, Sahara, Rubicon, Unlimited)

Frequently Asked Questions & Fitment Warnings

Does this fit the JK Wrangler?

Yes, this is a direct fit for the 2012-2018 Jeep Wrangler equipped with the Pentastar 3.6L engine.

Do I need to upgrade my battery charging cables?

Executing a 1/0 AWG fused power and ground wire upgrade ("Big 3") is strongly recommended to safely deliver the full 350-amp charging potential without thermal resistance.

The Jeep Durability Standard

Built to handle harsh rock crawling, deep water crossings, and sustained winching recoveries, this high-output alternator delivers continuous electrical reliability in severe trail environments.
