High Output Alternator for Jeep Grand Cherokee (2001-2004) 4.0L

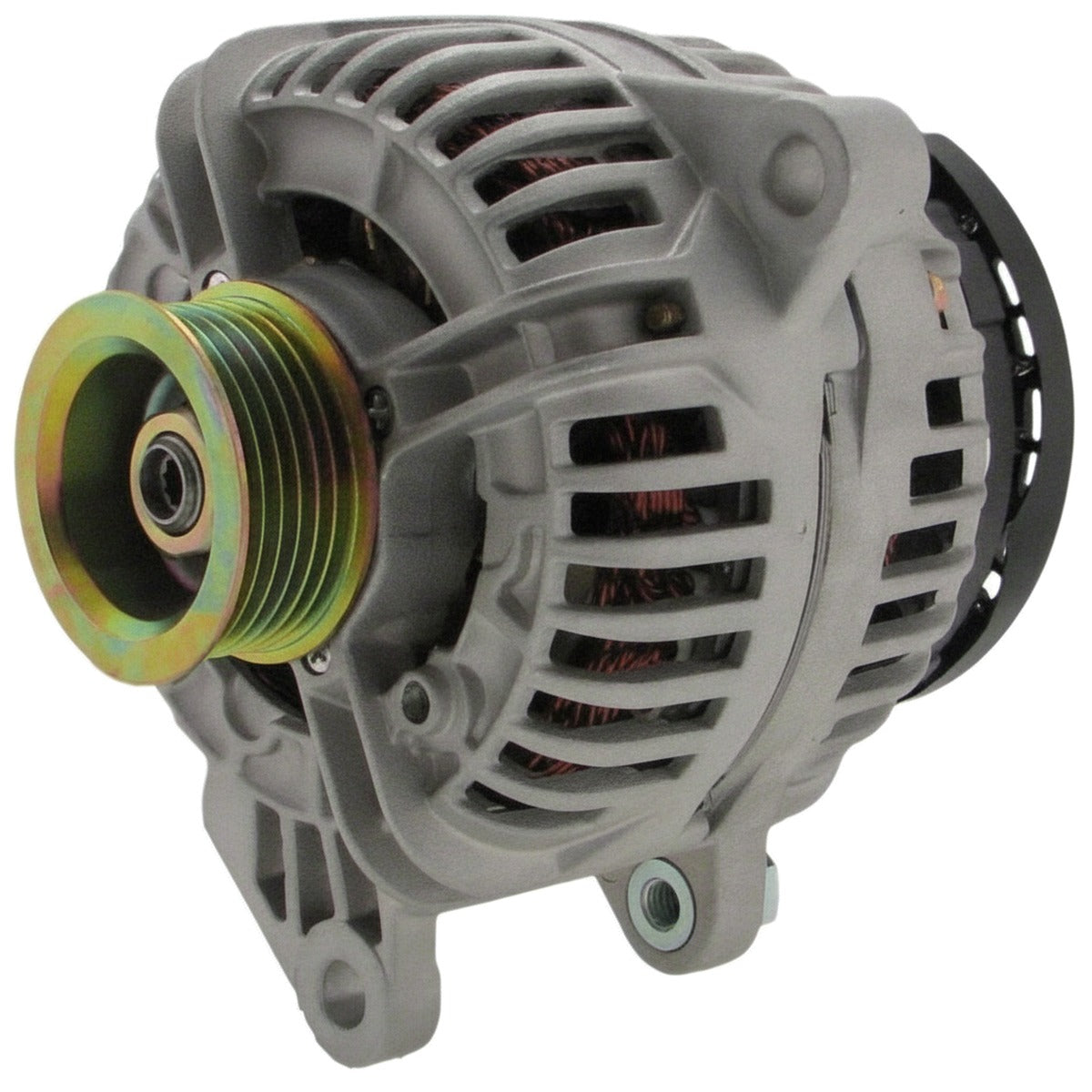

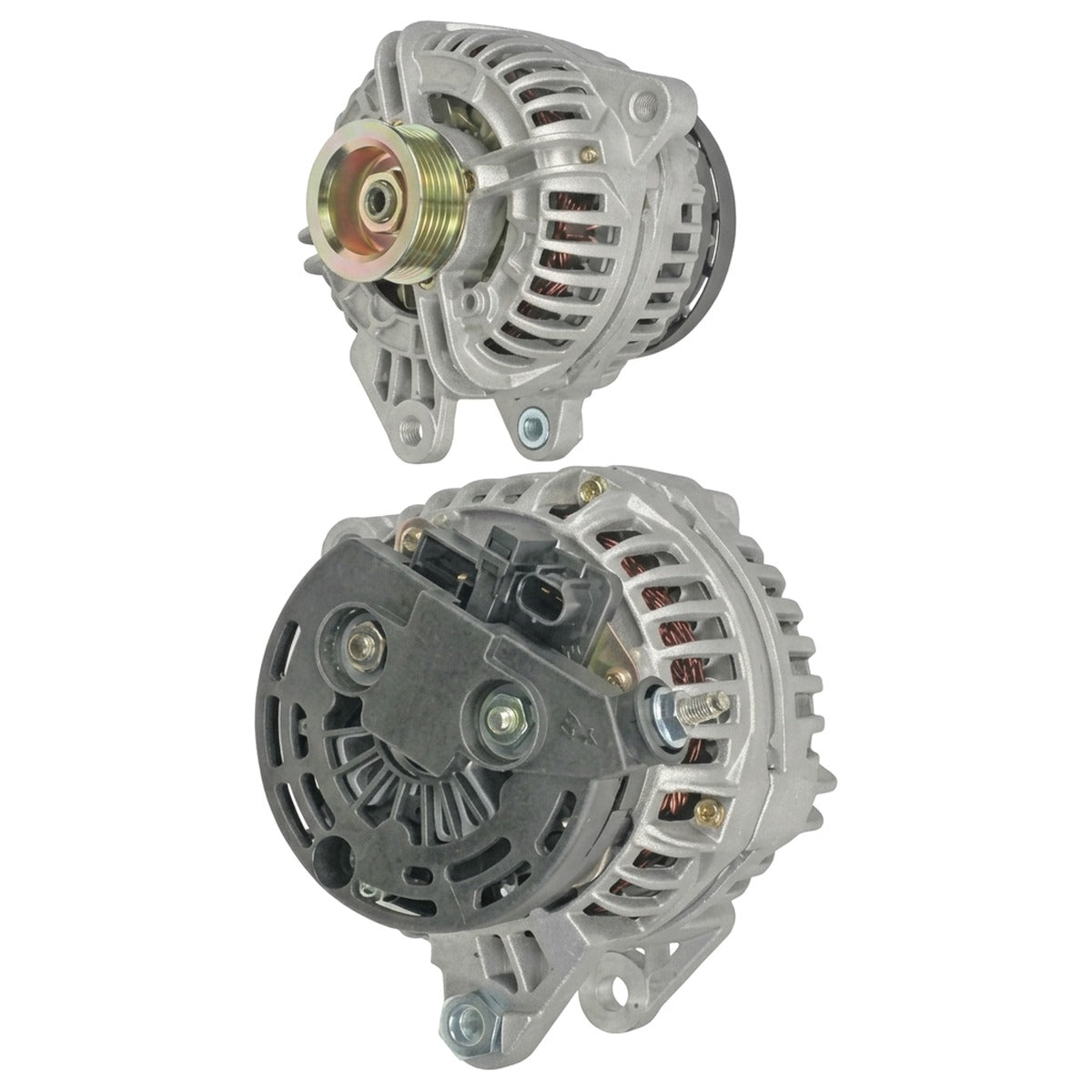

High-Output 250A Alternator for 2001-2004 Jeep Grand Cherokee (WJ)

What it Does: The 250-amp high-output alternator replaces the factory charging unit on the 2001-2004 Grand Cherokee to eliminate system voltage drop and supply robust current under heavy auxiliary electrical loads.

The Stock Jeep Grand Cherokee Charging Deficiencies

Factory charging systems on the WJ Grand Cherokee come equipped with an OEM unit rated between 117 and 136 amps, which is inadequate for modern overland and trail setups. When operating high-amperage accessories—such as recovery winches, high-intensity LED light bars, onboard air compressors, or high-draw audio amplifiers—the stock alternator suffers severe voltage drop, particularly at low engine idle speeds. This continuous strain induces excessive heat soak in the factory windings and rectifier bridge, degrading diode integrity, draining the primary battery, and triggering erratic sensor feedback to the vehicle powertrain control module (PCM).

The Engineering Solution

Engineered and manufactured in the USA, this 250-amp high-output alternator delivers substantial amperage across both idle and peak operating bands. Built with premium heavy-gauge copper stator windings, precision-balanced rotors, and heavy-duty high-temperature avalanche diodes, this unit effectively prevents thermal breakdown under severe continuous duty. It directly replaces factory units matching OEM part numbers 56041322AB and 13872, retaining factory mounting points and belt geometry while stabilizing bus voltage to prevent sensor fluctuations and battery drain during technical trail maneuvers.

What's Included

• 1x 250 Amp High Output Alternator

Technical Specifications

Compatibility

• 2001-2004 Jeep Grand Cherokee (WJ) Laredo 4.0L I6
• 2001-2004 Jeep Grand Cherokee (WJ) Limited 4.0L I6
• 2002-2004 Jeep Grand Cherokee (WJ) Sport / Special Edition 4.0L I6

Frequently Asked Questions & Fitment Warnings

Does this fit the WJ Grand Cherokee?

Yes, this is a direct bolt-in fit for the 2001-2004 Jeep Grand Cherokee equipped with the 4.0L AMC 242 inline-six engine; it does not fit 4.7L V8 models.

Do I need to upgrade my main battery cables?

Yes, pairing this 250A unit with a "Big 3" electrical upgrade using 1/0 or 2-gauge oxygen-free copper wiring and an inline fuse is strongly recommended to handle increased current without overheating factory harness wiring.

The Jeep Standard

Built for the harsh duty cycles of off-road recovery and remote expeditions, this alternator ensures consistent charging stability through extreme winch loads, slow rock crawling, and heavy electrical accessory usage.
