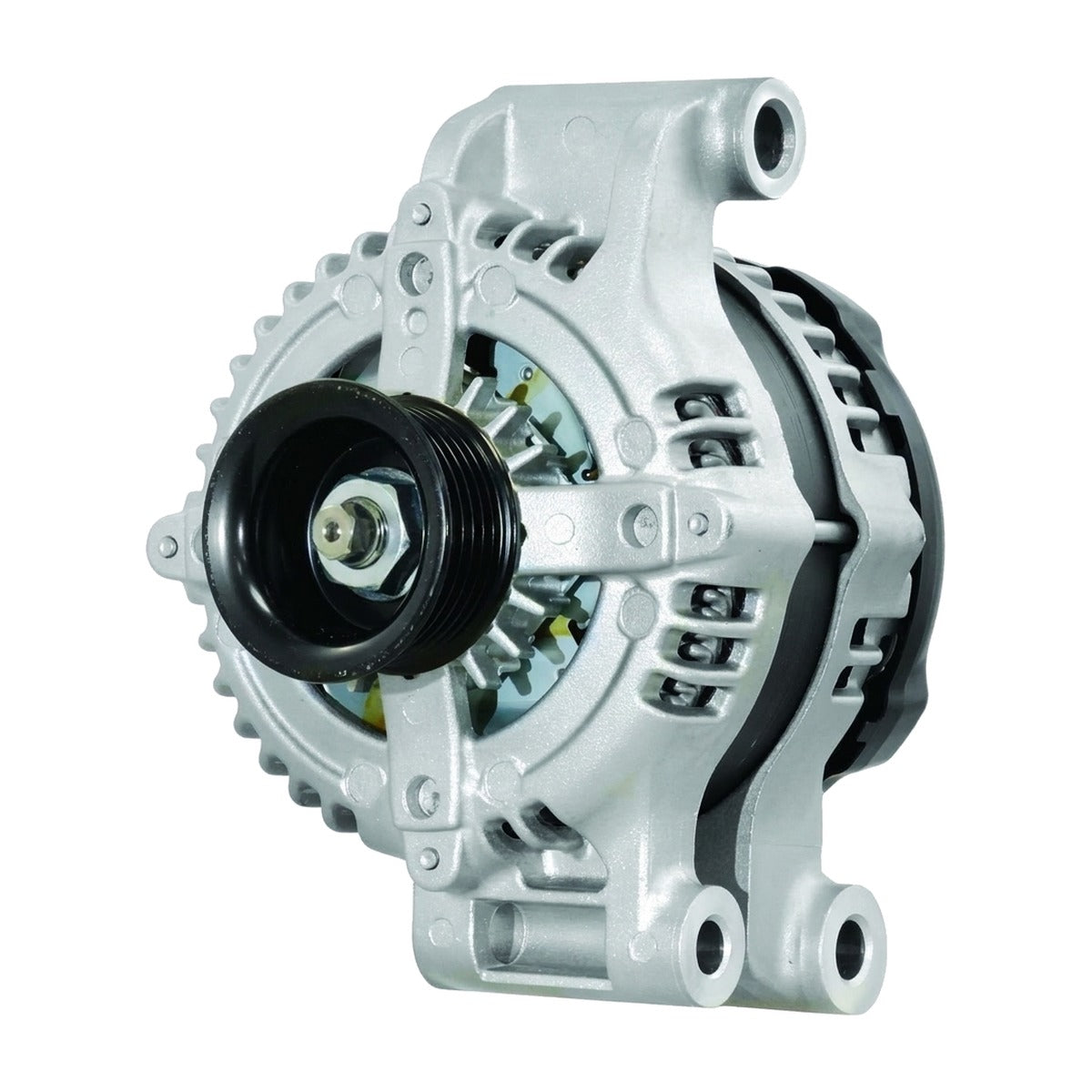

High Output Alternator for Jeep Compass (2021-2022) 2.4L

High-Output 300A Direct-Replacement Alternator for 2021-2022 Jeep Compass (MP)

What it Does: The 300-Amp High Output Alternator replaces the factory charging unit on the 2021-2022 Jeep Compass to provide continuous high-amperage electrical current, eliminating voltage drop caused by heavy aftermarket electrical loads.

The Stock Jeep Compass Charging Bottleneck

The factory charging system on the MP chassis Compass is rated for baseline vehicle electronics and minimal reserve capacity. When adding high-draw aftermarket gear—such as light bars, winches, audio amplifiers, or secondary batteries—the original equipment alternator suffers from severe stator heat soak and voltage drop, particularly at idle. Over time, sustained heavy demand degrades the factory diodes, leading to flickering instrument clusters, slow engine cranking, charging warning lights, and eventual battery discharge.

The Engineering Solution

Engineered as a plug-and-play upgrade for the 2.4L Tigershark engine, this 300-amp alternator delivers robust amperage across the entire RPM band. The assembly utilizes heavy-gauge copper stator windings, high-grade silicon diode rectifiers, and high-temp sealed bearings to endure demanding off-road and overland environments. A dynamically balanced rotor reduces rotational vibration, while an internal heavy-duty solid-state regulator manages stable output between 13.5 and 14.5 volts without erratic voltage spikes. It directly mounts to the factory engine brackets and connects to the OEM harness without wiring splices or bracket fabrication.

What's Included

• 1x 300-Amp High Output Alternator (Part # 11554)

Technical Specifications

Compatibility

• 2021-2022 Jeep Compass Sport 2.4L
• 2021-2022 Jeep Compass Latitude 2.4L
• 2021-2022 Jeep Compass Limited 2.4L
• 2021-2022 Jeep Compass Trailhawk 2.4L

Frequently Asked Questions & Fitment Warnings

Does this fit the MP Compass?

Yes, this is a direct fit for the 2021-2022 Jeep Compass equipped with the 2.4L Tigershark engine utilizing factory mounting positions and wiring connectors.

Do I need to upgrade my power wiring with this alternator?

While it is plug-and-play with the factory harness, upgrading the primary B+ battery charge wire and chassis grounds to a heavier gauge is recommended to handle the maximum 300-amp load.

The Jeep Standard

Built for trail-ready reliability, this high-output alternator provides the rugged electrical headroom needed to power recovery gear, camp lighting, and heavy electronics in remote terrain without stranding your rig.
