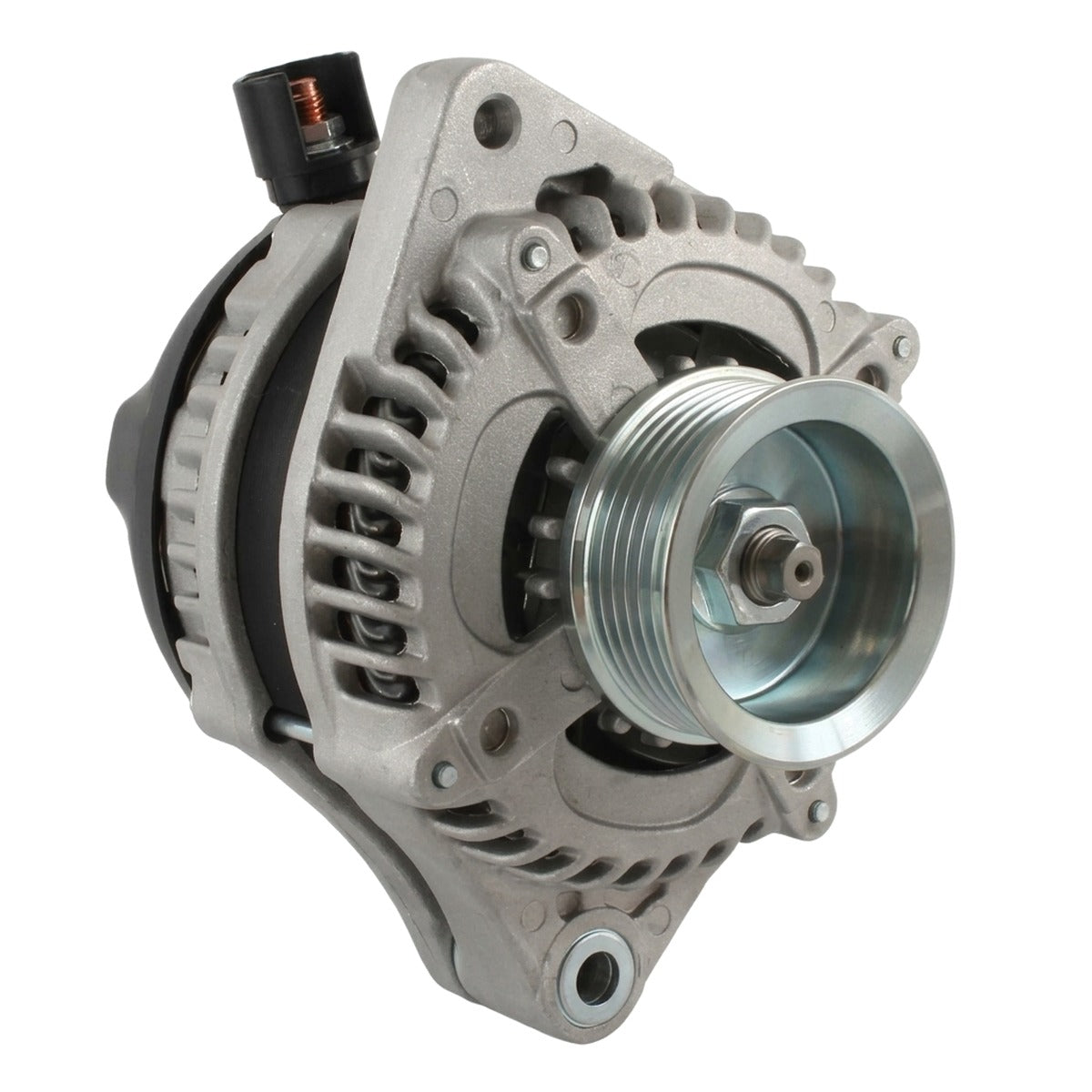

High Output Alternator for Honda Pilot Ridgeline (2009-2011) 3.5L

High-Amperage 250A Alternator for 2009-2011 Honda Pilot, Ridgeline (YF4 / YK1)

What it Does: The 250 Amp High Output Alternator upgrades the factory charging system on the 2009-2011 Honda Pilot and Ridgeline to deliver stable, high-current electrical output under heavy auxiliary accessory loads.

The Stock Honda Pilot, Ridgeline Charging System Bottleneck

Factory charging systems on the YF4 Pilot and YK1 Ridgeline rely on a conservative 130-amp unit that struggles under elevated current draw. When powering high-draw accessories such as aftermarket audio, winches, auxiliary lighting, or inverters, the factory stator experiences significant thermal saturation. This leads to continuous voltage sag below 12.5V, premature wear on the OEM regulator, battery starvation, and erratic behavior across the factory CAN-bus electrical architecture.

The Engineering Solution

Engineered as a direct-fit performance upgrade, this heavy-duty 250-amp alternator utilizes dense hair-pin copper stator windings and an oversized avalanche diode rectifier to maximize amperage generation at both idle and cruise RPM. Housed in a precision-cast, vented aluminum casing, this unit accelerates heat dissipation away from the internal electronic regulator, preventing thermal shutdown. Direct compatibility with OEM bracketry and wire harness configurations preserves belt alignment while maintaining a rock-steady 14.4V charging plateau.

What's Included

• 1x 250 Amp High Output Alternator

Technical Specifications

Compatibility

• 2009-2011 Honda Pilot 3.5L V6 (J35Z4)
• 2009-2011 Honda Ridgeline 3.5L V6 (J35Z5)

Frequently Asked Questions & Fitment Warnings

Does this fit the YF4 / YK1 Pilot, Ridgeline?

Yes, this is a direct fit for the 2009-2011 Honda Pilot and Ridgeline equipped with the 3.5L J35Z4 or J35Z5 engine.

Do I need to upgrade the main charging wire?

A "Big 3" electrical upgrade utilizing minimum 1/0 AWG fused power and ground cabling is strongly recommended to safely deliver the full 250-amp capability to the battery bank.

The Honda Workhorse Standard

Constructed specifically to meet the high-load demands of towing platforms and severe-duty utility vehicles, this high-output alternator provides the electrical reserve necessary for uninterrupted field performance.
