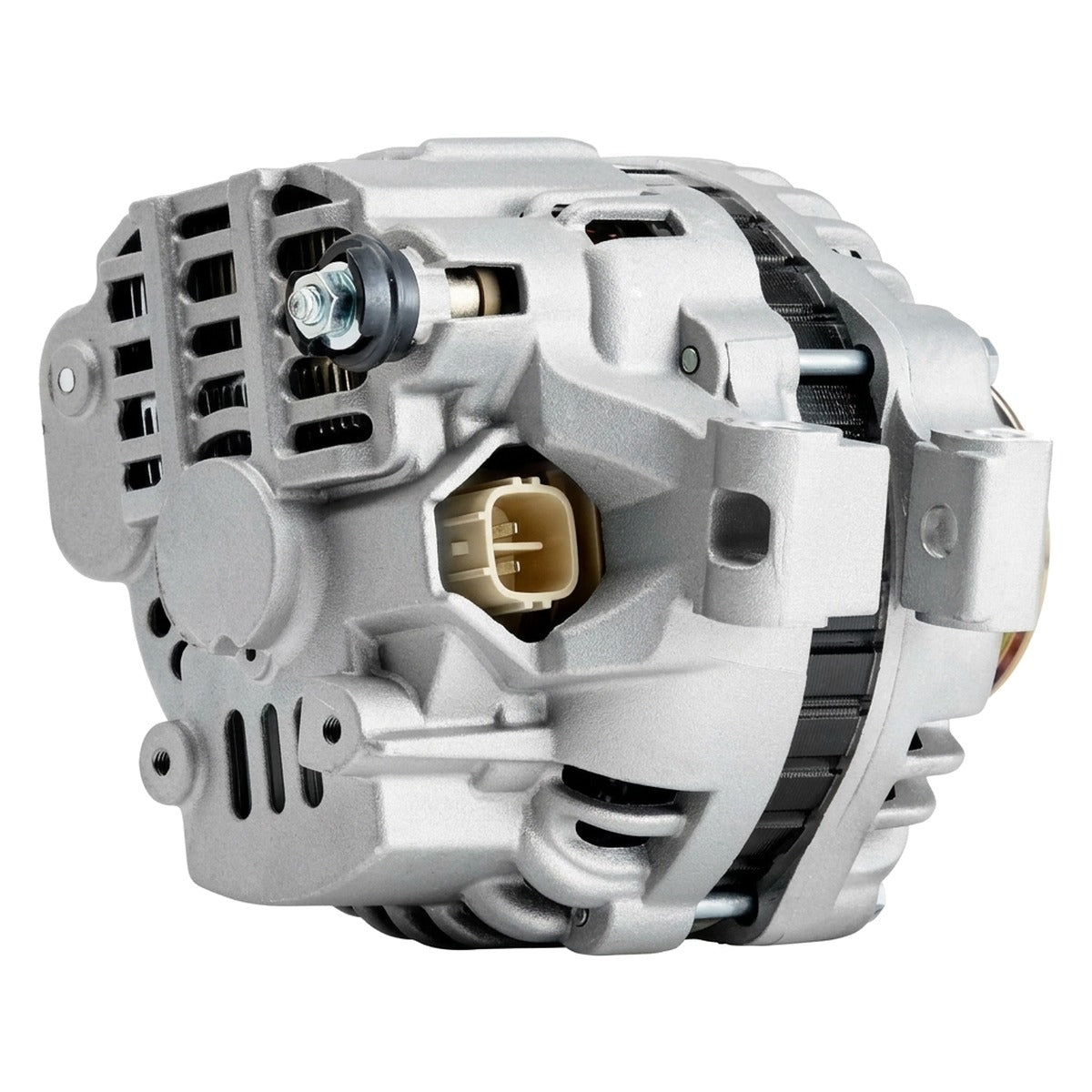

High-Output 210-Amp Alternator for 2002-2006 Honda CR-V (RD7)
What it Does: The 210-Amp High Output Alternator replaces the factory charging unit on the 2002-2006 CR-V to prevent system voltage drop and supply stable current under heavy auxiliary electrical loads.
The Stock Honda CR-V Charging Limitations
The original equipment manufacturer (OEM) charging system on the second-generation CR-V delivers a baseline output engineered strictly for stock accessories. When running high-draw loads such as aftermarket audio amplifiers, auxiliary LED light bars, or winches, the factory unit suffers heavy voltage drop at idle. Sustained high-amperage demand induces excessive heat soak in the stock windings, leading to premature diode pack failure, erratic battery charging, and fluctuating current across the vehicle electrical harness.
The Engineering Solution
Manufactured in the USA, this direct-fit alternator delivers a sustained 210-amp current capacity. Constructed with heavy-gauge copper stator windings, high-temperature insulated leads, and a heavy-duty rectifier assembly, it provides stable voltage regulation even under severe engine bay thermal loads. It mounts directly to the K24A1 engine accessory bracket, utilizing factory belt routing while replacing worn OEM components cross-referenced to 31100-PND-004 and A2TB7591.
What's Included
- 1x 210-Amp High Output Alternator
Technical Specifications
| Fitment | 2002-2006 Honda CR-V |
|---|---|
| Engine / Chassis | K24A1 / RD7 |
| Stock Output | 160 hp / 162 lb-ft |
| Replaces OEM Part # | A2TB7591, 31100PND004, AL1290X, 13966, 13966N, 13966R, 31100-PND-004, 210-4168, AHGA55, 13966-210A |
Compatibility
- 2002-2006 Honda CR-V EX 2.4L L4 (K24A1)
- 2002-2006 Honda CR-V LX 2.4L L4 (K24A1)
- 2005-2006 Honda CR-V SE 2.4L L4 (K24A1)
Frequently Asked Questions & Fitment Warnings
Does this fit the RD7 CR-V?
Yes, this is a direct bolt-on fit for the 2002-2006 Honda CR-V equipped with the K24A1 2.4L engine.
Is a "Big 3" wiring upgrade required for this alternator?
Upgrading the primary alternator power lead and chassis/engine ground cables to 4-gauge or larger wire is highly recommended to safely support the full 210-amp current capacity.
The Honda K-Series Standard
The RD7 chassis and K-series platform are renowned for long-term endurance. Installing an American-made, high-capacity alternator ensures consistent primary voltage output for high-demand accessories while preserving ignition coil performance and charging stability on and off the road.
