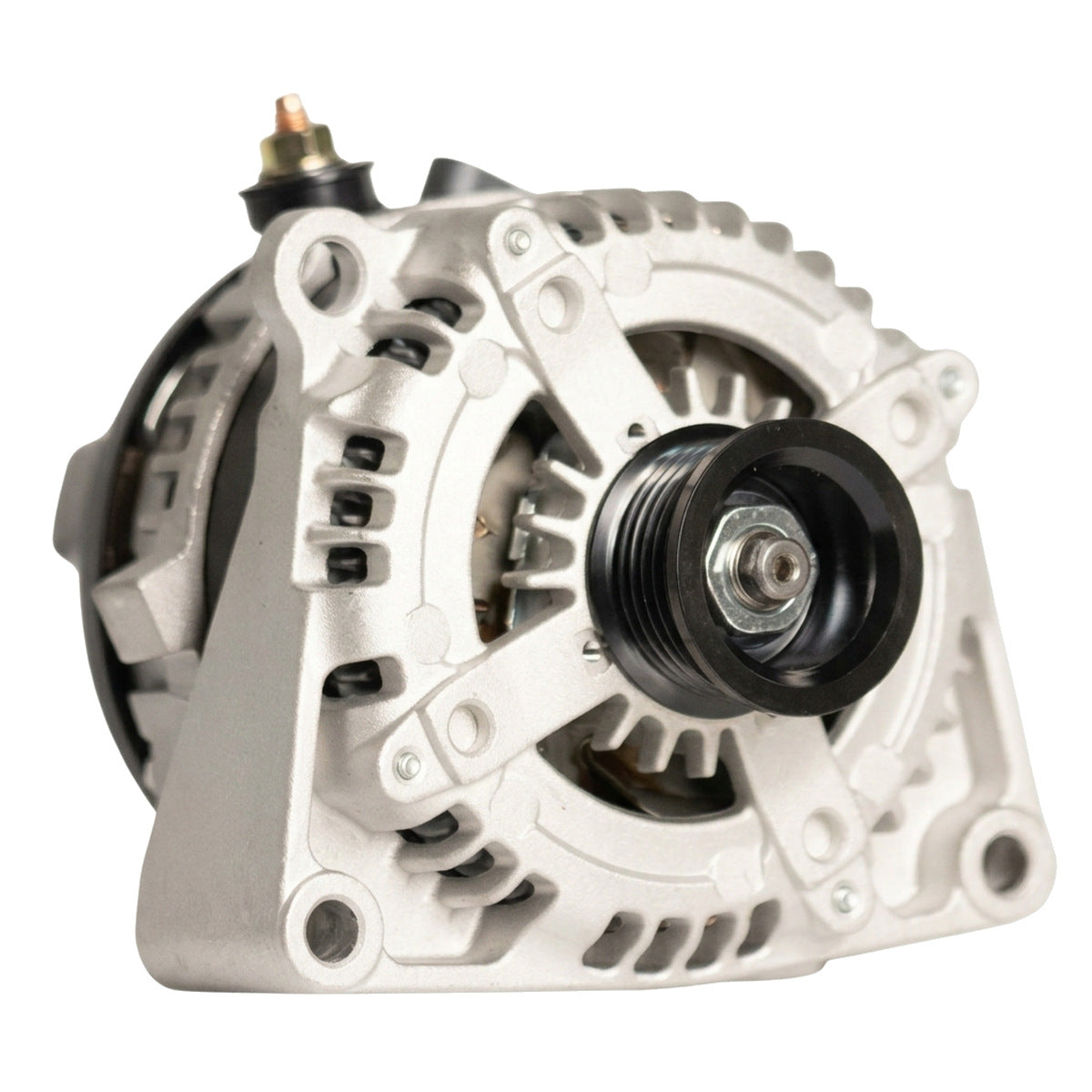

High Output Alternator for GMC Sierra (2001-2005) 6.6L 8.1L

Heavy-Duty 300-Amp High Output Alternator for 2001-2005 GMC Sierra (GMT800)

What it Does: The 300-amp high output alternator upgrades charging capacity on the 2001-2005 GMC Sierra to eliminate voltage drops under high-demand electrical loads from winches, inverters, and auxiliary work equipment.

The Stock GMC Sierra Current Limitation

Factory GMT800 platforms fitted with the 6.6L Duramax (LB7/LLY) or 8.1L Vortec (L18) were typically equipped with 105-amp or 145-amp units. When running dual battery setups, plow hydraulics, high-draw lighting, or high-power commercial gear, the stock stator coils overheat rapidly. This causes continuous thermal degradation, diode failure, voltage ripple, and insufficient charging current at idle speeds below 800 RPM, eventually leading to dead battery banks and erratic powertrain module communication.

The Engineering Solution

Manufactured in the USA, this direct-replacement 300-amp unit utilizes heavy-gauge hairpin copper windings and precision balanced rotors to maximize induction efficiency across low and high RPM ranges. It integrates heavy-duty silicon avalanche rectifier diodes and a high-temp solid-state voltage regulator to handle continuous duty cycles without heat-soak fade. The cast aluminum housing dissipates rotor and stator heat rapidly while directly bolting up to factory accessory brackets matching OEM part numbers 10480388 and 10464438.

What's Included

• 1 300-Amp High Output Alternator

Technical Specifications

Compatibility

• 2001-2005 GMC Sierra 1500HD 6.6L / 8.1L V8
• 2001-2005 GMC Sierra 2500HD 6.6L / 8.1L V8
• 2001-2005 GMC Sierra 3500 6.6L / 8.1L V8

Frequently Asked Questions & Fitment Warnings

Does this fit the GMT800 Sierra?

Yes, this is a direct bolt-in fit for the 2001-2005 GMC Sierra equipped with either the 6.6L Duramax or 8.1L Vortec engine. It is not compatible with standard 4.8L, 5.3L, or 6.0L small-block gas applications without bracket modifications.

Do I need to upgrade my main power cabling?

Yes, running a 1/0 AWG 'Big 3' charge wire upgrade from the alternator positive post to the battery and chassis ground is required to safely carry 300 amps of sustained current.

The GMC Heavy-Duty Standard

Engineered for extreme towing duty cycles and continuous commercial workloads, this high-output charging solution ensures steady DC voltage stability to safeguard modules and run high-load accessories under severe operating conditions.
