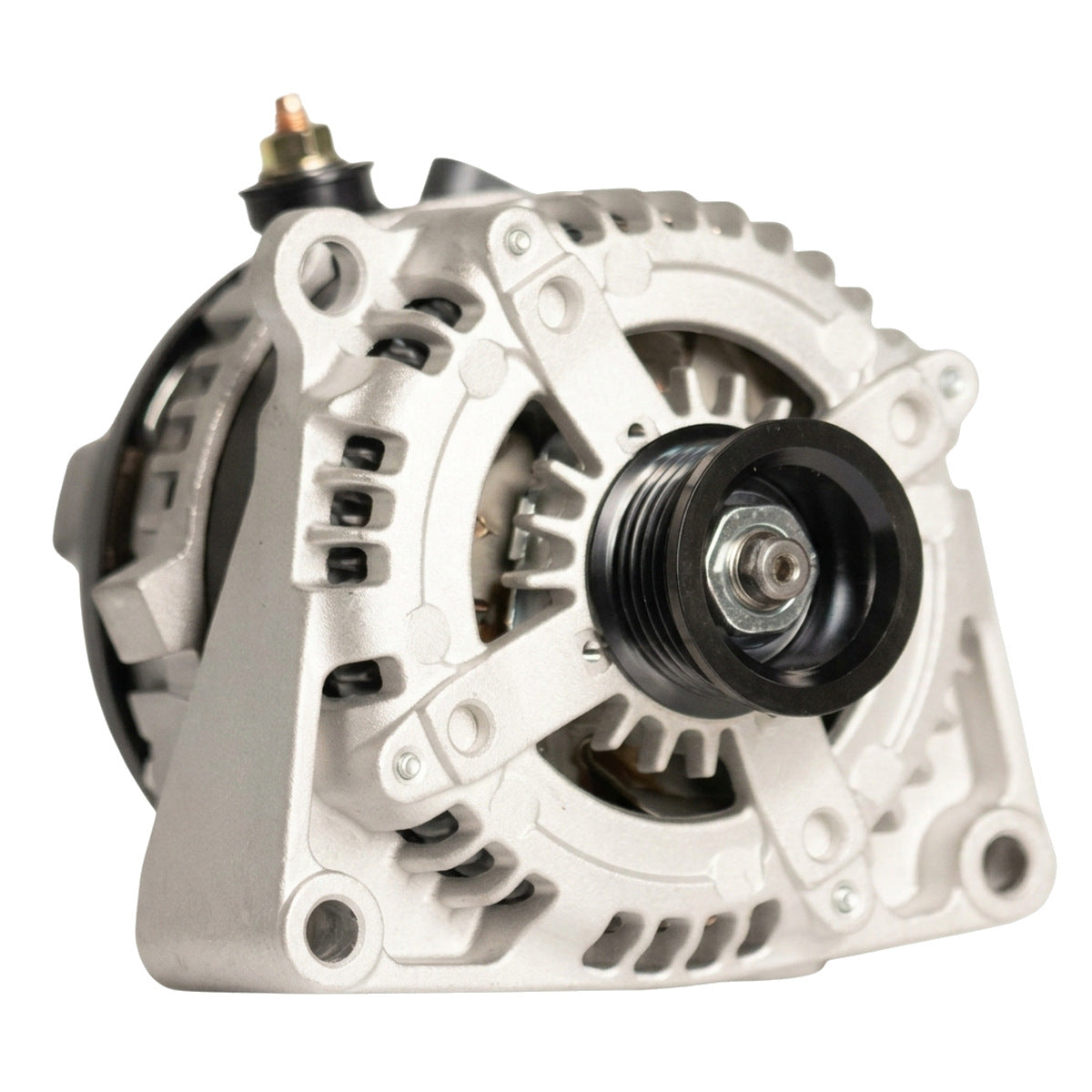

High Output Alternator for GMC Sierra (2001-2004) 4.3L 4.8L 5.3L 6.0L

High-Output 300A Hairpin Alternator for 2001-2004 GMC Sierra (GMT800)

What it Does: The 300-amp hairpin alternator replaces low-output factory charging units on 2001-2004 GMC Sierra trucks to eliminate voltage drop and deliver stable high-amperage current under heavy auxiliary electrical loads.

The Stock GMC Sierra Charging Deficit

Factory GMT800 trucks shipped with standard Delphi 105-amp or 145-amp alternators engineered solely for bare-bones stock electronics. When running winches, plow gear, high-draw audio equipment, or heavy lighting, the OEM round-wire stator reaches immediate thermal saturation. The resulting voltage sag starves secondary modules, causes headlight flicker at idle, and overheats the factory diode pack, leading to premature bridge rectifier failure and drained secondary batteries.

The Engineering Solution

Engineered for high current density, this heavy-duty 300-amp unit utilizes precision 6-phase hairpin stator architecture with rectangular copper conductor windings. Hairpin geometry increases slot-fill efficiency over conventional windings, drastically cutting internal electrical resistance and reducing operating heat soak. Features a heavy-duty avalanche diode rectifier, precision dynamically balanced rotor, 12-volt output, a precision-machined 6-groove pulley, and a direct-fit 4-pin connector designed to drop right into factory GM engine brackets without modification.

What's Included

• 1x 300-Amp High Output Hairpin Alternator (6-Groove Pulley, 4-Pin Connector)

Technical Specifications

Compatibility

• 2001-2004 GMC Sierra 1500 / 2500 / 3500 4.3L V6
• 2001-2004 GMC Sierra 1500 / 2500 / 3500 4.8L V8
• 2001-2004 GMC Sierra 1500 / 2500 / 3500 5.3L V8
• 2001-2004 GMC Sierra 1500 / 2500 / 3500 6.0L V8

Frequently Asked Questions & Fitment Warnings

Does this fit the GMT800 Sierra?

Yes, this is a direct bolt-in fit for 2001-2004 GMC Sierra trucks with Vortec 4.3L, 4.8L, 5.3L, and 6.0L engines originally equipped with a 105A or 145A unit. Note: Does not replace the factory 124-amp alternator found on select specialty models.

Do I need to upgrade my main charging wire?

Yes, running a 0-gauge "Big 3" charge lead from the alternator post to the battery is strongly recommended to safely carry the full 300-amp capacity without line resistance.

The GMC Heavy-Duty Caliber

When you are towing heavy payloads, plowing commercial sites, or relying on auxiliary equipment in extreme duty cycles, stable 14.4-volt power is critical. This unit delivers relentless charging power and heat tolerance for your heavy-work truck setup.
