High Output Alternator for GMC Savana (2001-2002) 4.3L 5.0L 5.7L 6.5L 8.1L

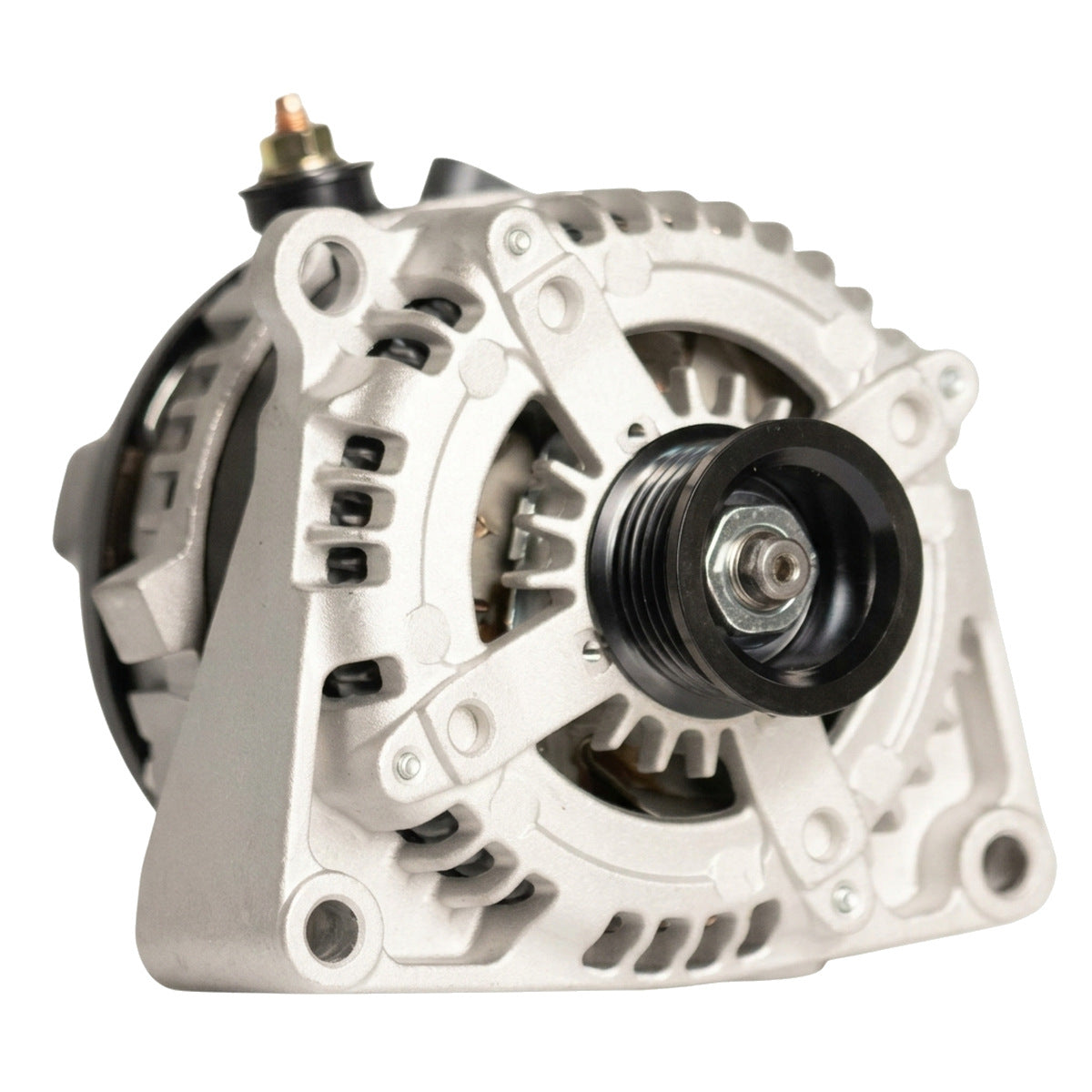

High-Output 300-Amp Alternator for 2001-2002 GMC Savana (GMT600)

What it Does: The 300-Amp High Output Alternator replaces the low-output factory charging unit on the 2001-2002 GMC Savana to stabilize system voltage and provide sustained electrical current under heavy auxiliary loads.

The Stock GMC Savana Charging Deficiencies

Factory charging systems on the first-generation GMT600 Savana platform were engineered around standard fleet electrical demands, utilizing OEM units rated between 100 to 145 amps. When subjected to commercial inverters, auxiliary lighting, high-draw climate systems, or aftermarket sound setups, the stock Delphi/Delco CS130D or AD230/AD244 units suffer severe thermal saturation. Extended high-duty cycles lead to rapid diode pack breakdown, stator winding insulation degradation, and chronic voltage drops below 12.6V at engine idle. This voltage sag causes ECM communication faults, dimming illumination, and premature auxiliary battery bank failure.

The Engineering Solution

Engineered for high-current fleet demands, this 300-amp unit delivers robust power output across the entire RPM band, including stable current delivery at low idle. Manufactured in the USA with heavy-duty hairpin stator windings, precision-wound copper rotors, and an upgraded heavy-duty bridge rectifier with avalanche diodes, this unit effectively mitigates heat soak and thermal resistance. The assembly utilizes high-temperature hybrid ceramic/sealed roller bearings to withstand high belt tension and sustained RPM on platforms equipped with the Vortec 4300 (LU3/L35), Vortec 5000 (L30), Vortec 5700 (L31), Detroit Diesel 6.5L (L56), and Vortec 8100 (L18) powertrains, replacing worn OEM components cross-referenced with 321-1798 and 10480388.

What's Included

• 1 x 300-Amp High Output Alternator

Technical Specifications

Compatibility

• 2001-2002 GMC Savana 4.3L
• 2001-2002 GMC Savana 5.0L
• 2001-2002 GMC Savana 5.7L
• 2001-2002 GMC Savana 6.5L
• 2001-2002 GMC Savana 8.1L

Frequently Asked Questions & Fitment Warnings

Does this fit the GMT600 Savana?

Yes, this is a direct bolt-on fit for the 2001-2002 GMC Savana equipped with the 4.3L, 5.0L, 5.7L, 6.5L, and 8.1L engines.

Do I need to upgrade the primary charging cable for this alternator?

Yes, installing a high-amp "Big 3" 0-gauge or 1/0-gauge fused charge wire between the alternator output stud and positive battery terminal is required to safely support 300 amps without excessive voltage drop or wire overheating.

The GMC Commercial Fleet Standard

Whether handling long-haul transport or powering dedicated commercial work equipment, your Savana demands uncompromised electrical overhead. Built to exceed commercial endurance benchmarks, this high-output charging solution prevents electrical brownouts under maximum auxiliary draw and heavy payload duty cycles.
