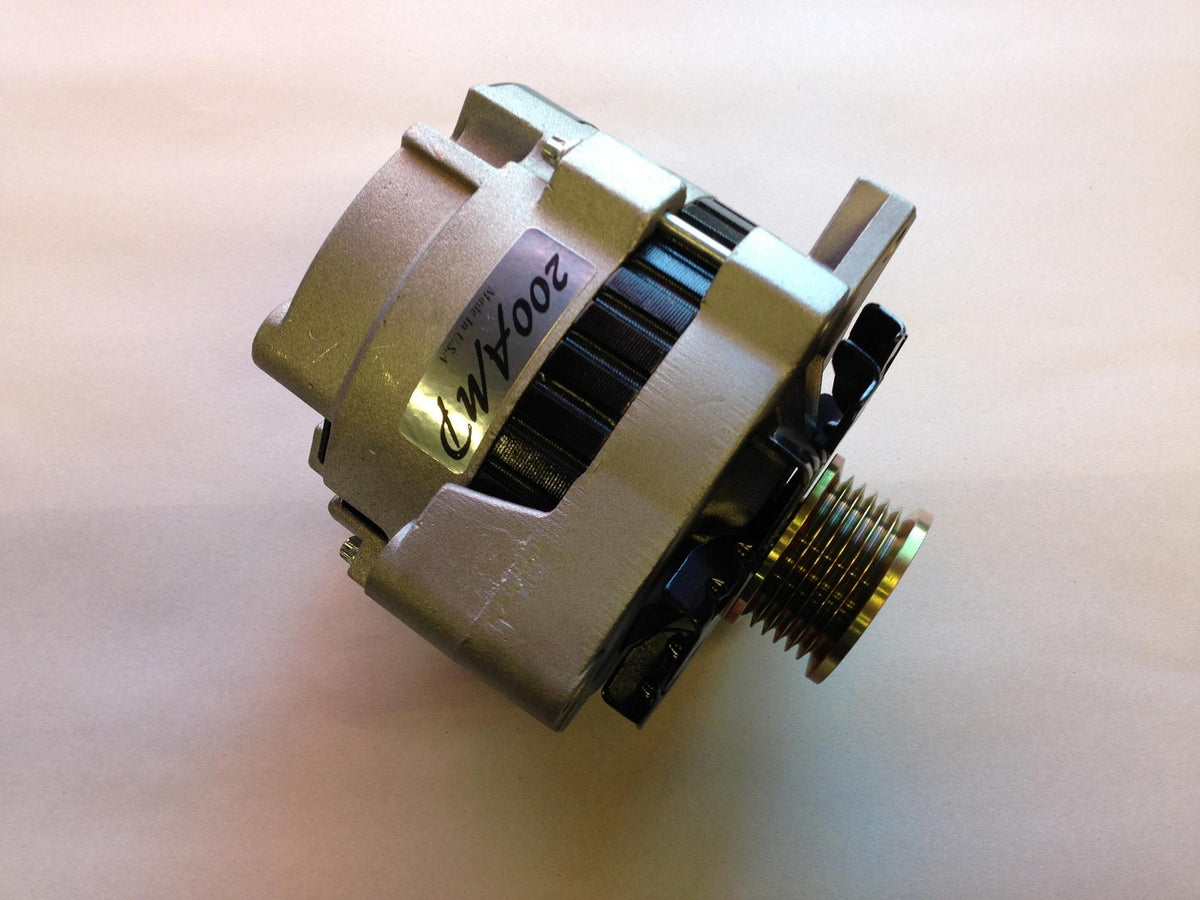

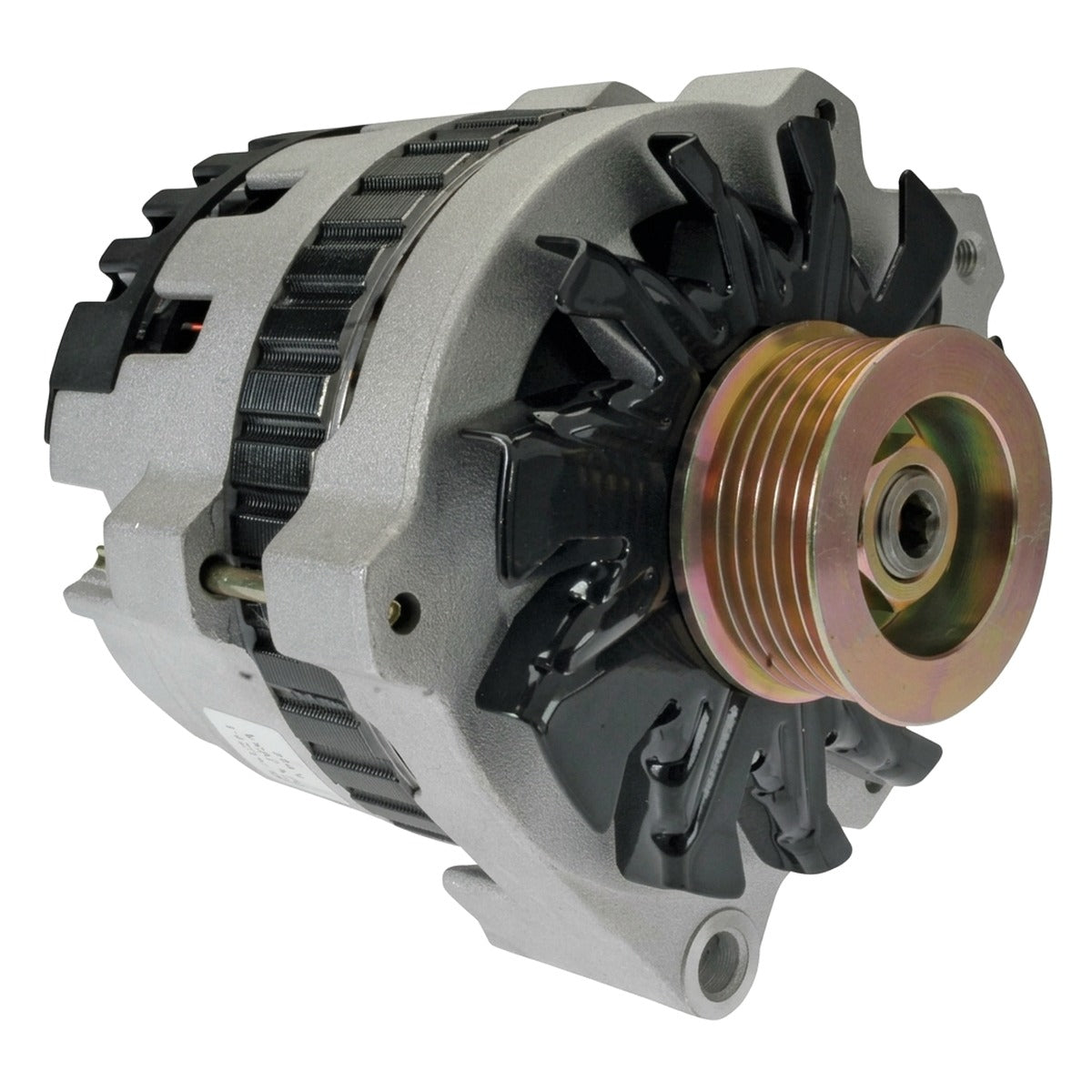

High Output Alternator for GMC Safari (1987-1989) 4.3L

High-Capacity 200-Amp Alternator for 1987-1989 GMC Safari (M-Body)

What it Does: The 200-amp high-output alternator replaces the low-output factory charging unit on the 1987-1989 GMC Safari to stabilize system voltage, prevent battery drain, and support heavy electrical accessories under full load.

The Stock GMC Safari Charging Deficit

Factory 1987-1989 GMC Safari models equipped with the **4.3L LB4** came standard with low-output Delco alternators rated at only 66 to 85 amps. The tight, enclosed engine doghouse of the rear-wheel-drive **M-body** platform traps ambient radiant heat, leading to severe thermal breakdown of the factory internal rectifier and regulator. Under high thermal load, stock diodes suffer impedance increases, dropping charging output below 12.8 volts at idle. When powering aftermarket lighting, high-draw HVAC blowers, audio systems, or auxiliary towing equipment, the OEM unit fails to maintain system saturation, leading to dead batteries and ignition brownouts.

The Engineering Solution

This 200-amp unit addresses thermal and amperage deficiencies with heavy-gauge pure copper field windings, precision-wound stators, and an upgraded heavy-duty bridge rectifier with high-amperage avalanche diodes. Designed for extreme duty cycles, the housing optimizes structural airflow over internal components to reject heat soak within cramped engine bays. It provides high amperage at low RPM idle speeds while maintaining a steady 14.4-volt charge curve under continuous electrical load.

What's Included

• 1 x 200-Amp High-Output Alternator

Technical Specifications

Compatibility

• 1987 GMC Safari (Base, SLX, SLE) 4.3L V6
• 1988 GMC Safari (Base, SLX, SLE) 4.3L V6
• 1989 GMC Safari (Base, SLX, SLE) 4.3L V6

Frequently Asked Questions & Fitment Warnings

Does this fit the M-Body Safari?

Yes, this is a direct bolt-on fit for the 1987-1989 GMC Safari equipped with the **4.3L LB4** engine using OEM mounting brackets.

Do I need to upgrade my charging cables when installing this 200-amp alternator?

Yes, upgrading your main battery charge wire and chassis grounds to a minimum 4-gauge or 1/0-gauge ("Big Three") wire is recommended to handle the increased current capacity without voltage drop.

The GMC Heavy-Duty Standard

Engineered for high-demand towing, commercial service, and utility fleets, this charging solution delivers relentless power delivery without voltage degradation under peak operating temperatures.
