High Output Alternator for GMC Canyon (2004-2006) 2.8L 3.5L

High-Amp Heavy-Duty Alternator for 2004-2006 GMC Canyon (GMT355)

What it Does: The 250-Amp High Output Alternator delivers stable, high-amperage current across all RPM bands to eliminate voltage sag and power demanding aftermarket electrical systems on the 2004-2006 GMC Canyon.

The Stock GMC Canyon Electrical Limitations

Factory charging systems on the first-generation GMT355 platform are engineered strictly for baseline accessory draw. Rated at a modest 100 to 125 amps from the factory, the stock unit suffers severe thermal throttling and voltage drops when running winches, secondary light bars, high-draw inverters, or upgraded audio packages. Under prolonged auxiliary loads, factory diodes overheat, causing stator winding insulation failure and stator breakdown, which leaves your LK5 or L52 engine struggling with battery depletion and erratic ECM sensor feedback at idle.

The Engineering Solution

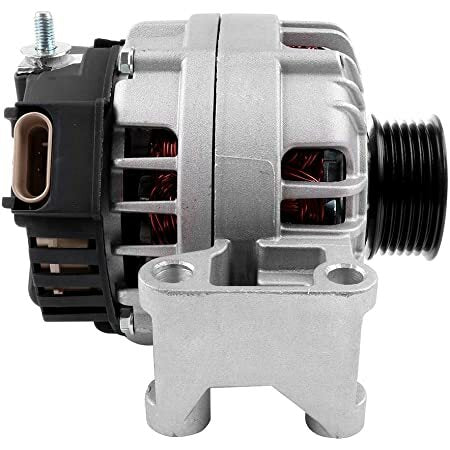

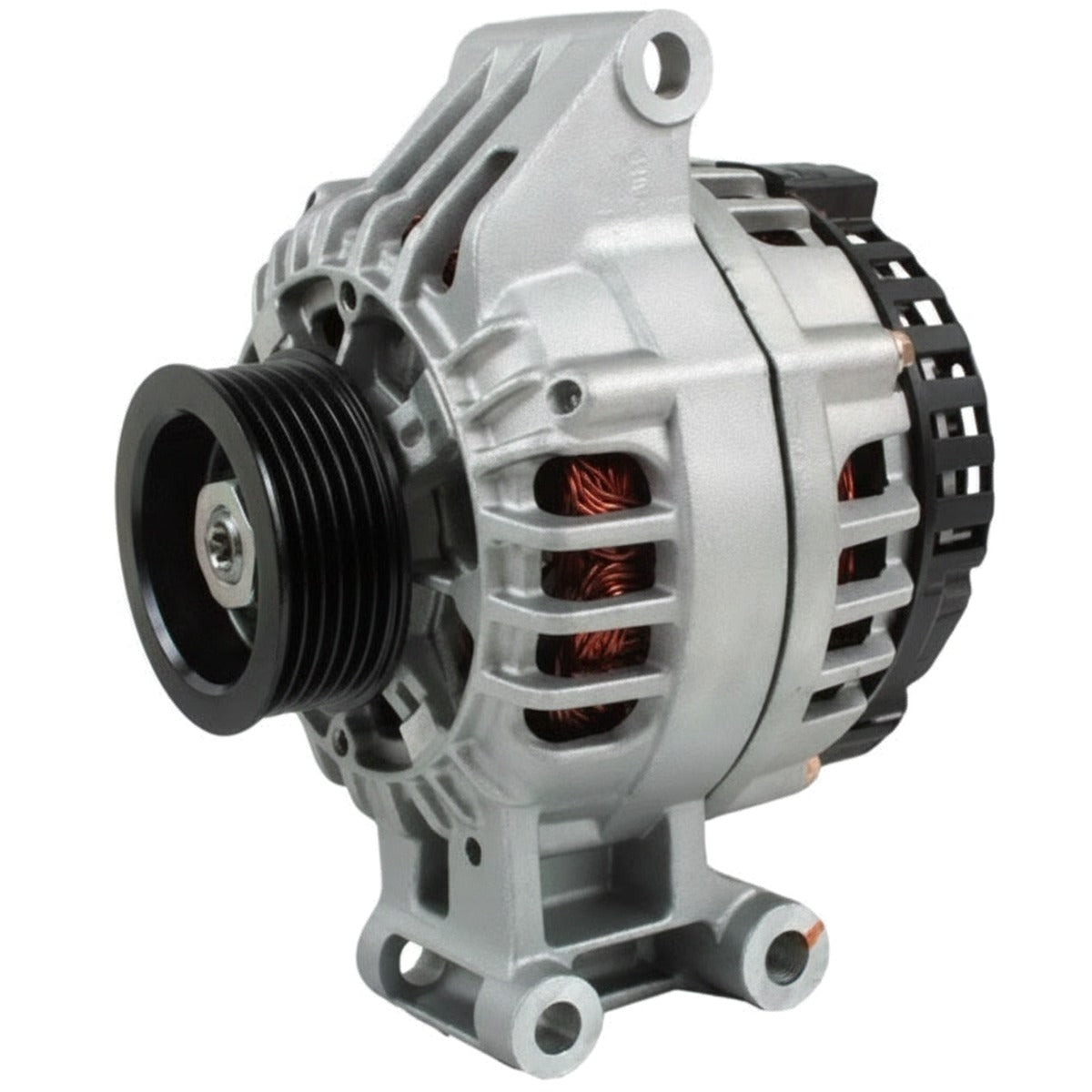

Engineered and assembled in the USA, this 250-amp direct replacement alternator incorporates high-temperature copper windings, a heavy-duty rectifier assembly, and high-efficiency avalanche diodes configured to handle sustained load peaks without thermal breakdown. Designed with factory mounting geometry, it drops directly onto the Atlas inline-engine bracket without custom shimming. The internal rotor-to-stator air gap is optimized for maximum low-idle output, maintaining 14+ volts even during heavy accessory draw.

What's Included

• 1 x 250-Amp High Output Alternator

Technical Specifications

Compatibility

• 2004-2006 GMC Canyon 2.8L L4 (LK5)
• 2004-2006 GMC Canyon 3.5L L5 (L52)

Frequently Asked Questions & Fitment Warnings

Does this fit the GMT355 Canyon?

Yes, this unit is a direct-fit replacement for the 2004-2006 GMT355 Canyon equipped with the 2.8L LK5 or 3.5L L52 Atlas engine family.

Do I need to upgrade my main battery wiring?

A Big 3 wiring upgrade (minimum 4-gauge or 1/0-gauge battery ground, chassis ground, and alternator charge lead) is highly recommended to safely support full 250-amp throughput without bottlenecking circuit current.

The GMC Workhorse Standard

Midsize haulers rely on consistent electrical stability for job-site winching, recovery equipment, and high-draw work gear. This direct-replacement high-output unit delivers the sustained current capacity needed to keep your truck running under extreme demands.
