High Output Alternator for Ford Ranger (2001-2005) 4.0L

High-Output 300-Amp Alternator for 2001-2005 Ford Ranger (PN105)

What it Does: The High Output 300-Amp Alternator replaces the factory low-amperage charging unit on the 2001-2005 Ford Ranger to prevent voltage drop and provide high-amperage current for heavy electrical accessories, winches, and off-road lighting.

The Stock Ford Ranger Charging Limitations

Factory charging systems on the PN105 chassis Cologne 4.0L SOHC Ranger were equipped with standard 95-amp to 130-amp alternators engineered solely for base vehicle electronics. When running modern auxiliary equipment—such as recovery winches, high-draw audio setups, light bars, or onboard air compressors—the stock rectifier and stator quickly encounter thermal saturation. This leads to continuous voltage sag below 12.6V at idle, accelerated battery deterioration, sluggish starter engagement, and eventual diode pack burnout under continuous duty cycles.

The Engineering Solution

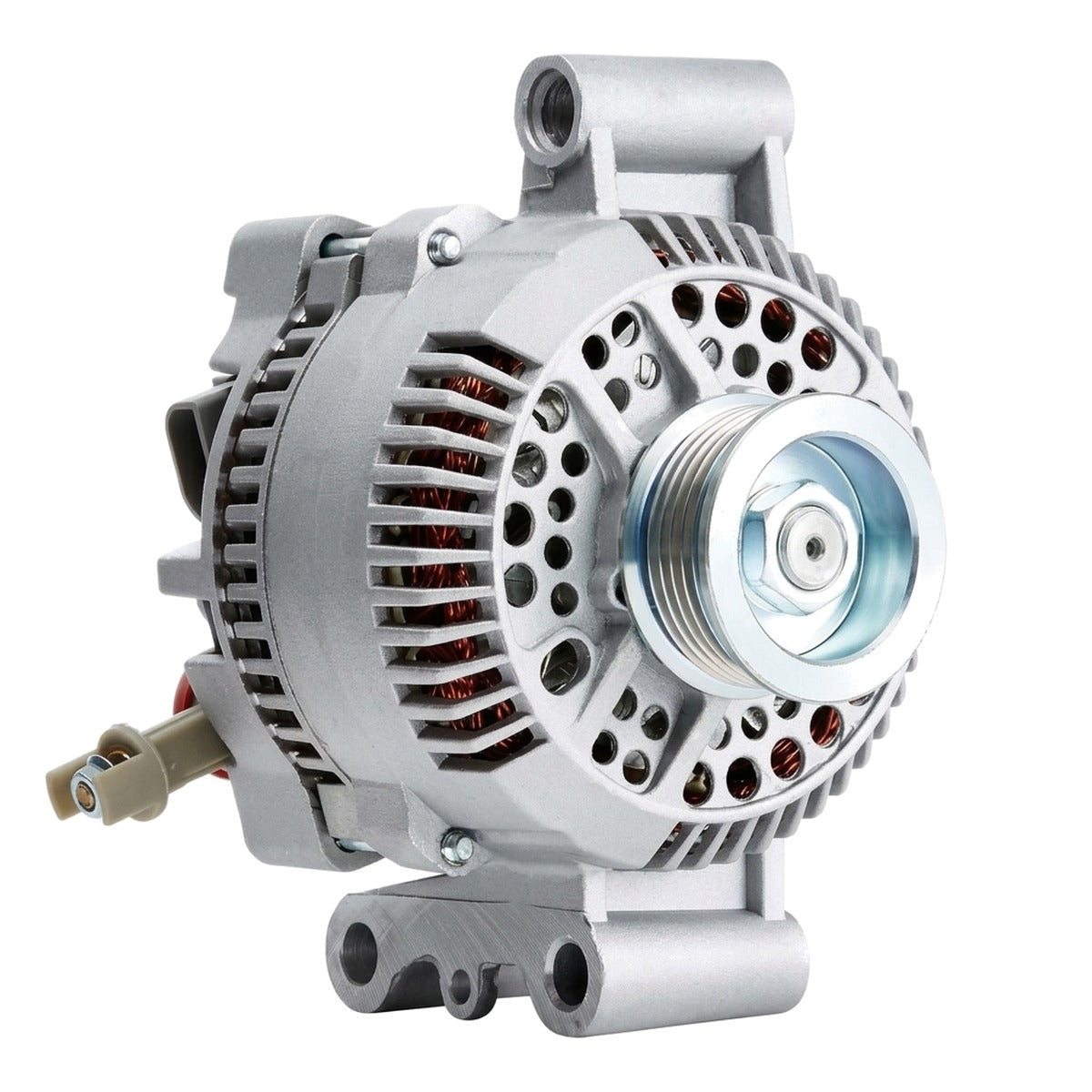

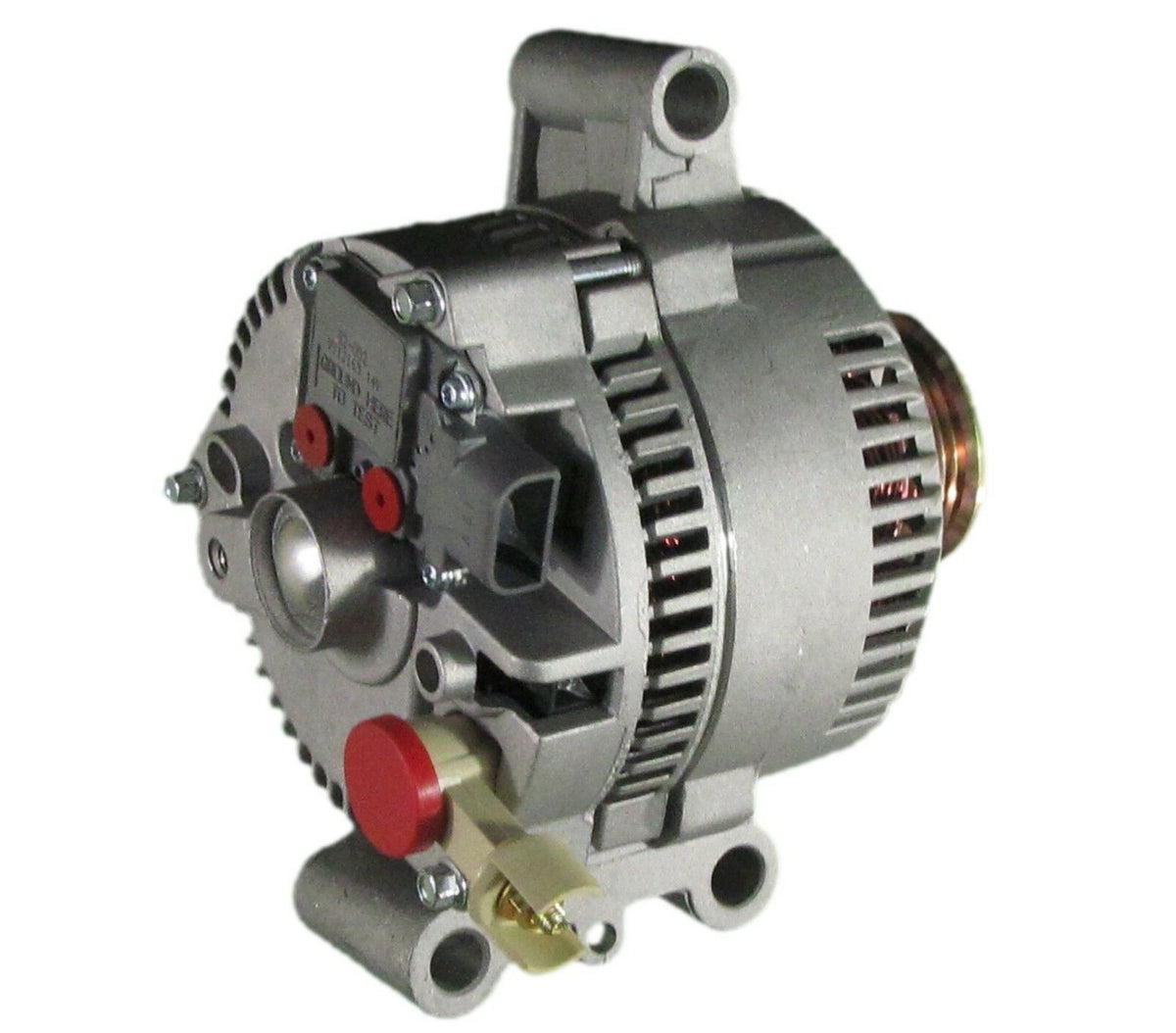

Engineered for high current delivery, this direct-mount 300-amp unit utilizes hairpin-wound heavy-gauge copper stator wiring and an upgraded heavy-duty rectifier equipped with high-amp avalanche diodes. This architecture delivers massive output at both engine idle and cruising RPM while dissipating thermal buildup far more effectively than standard units. The housing is precision-machined to mount directly to the Cologne 4.0L SOHC front accessory drive without bracket modifications, maintaining OEM belt tracking and tensioner geometry across OEM interchange numbers including 1L5Z-10346-BA and 8258.

What's Included

• 1 300-Amp High-Output Alternator

Technical Specifications

Compatibility

• 2001-2005 Ford Ranger XL 4.0L V6
• 2001-2005 Ford Ranger XLT 4.0L V6
• 2001-2005 Ford Ranger Edge 4.0L V6
• 2002-2005 Ford Ranger FX4 4.0L V6
• 2004-2005 Ford Ranger Tremor 4.0L V6

Frequently Asked Questions & Fitment Warnings

Does this fit the PN105 Ranger?

Yes, this is a direct bolt-on fit for the 2001-2005 Ford Ranger equipped with the Cologne 4.0L SOHC engine.

Do I need to upgrade my battery cables for a 300-amp unit?

Yes, running a 1/0 AWG primary charging wire and upgrading chassis/engine grounds (Big 3 upgrade) is mandatory to safely carry 300 amps without resistive heat damage.

The Ford Truck Standard

Engineered for work, trail recovery, and overland hauling, this high-output charging unit eliminates power deficits to ensure consistent ignition voltage, starter performance, and auxiliary power under severe duty conditions.
