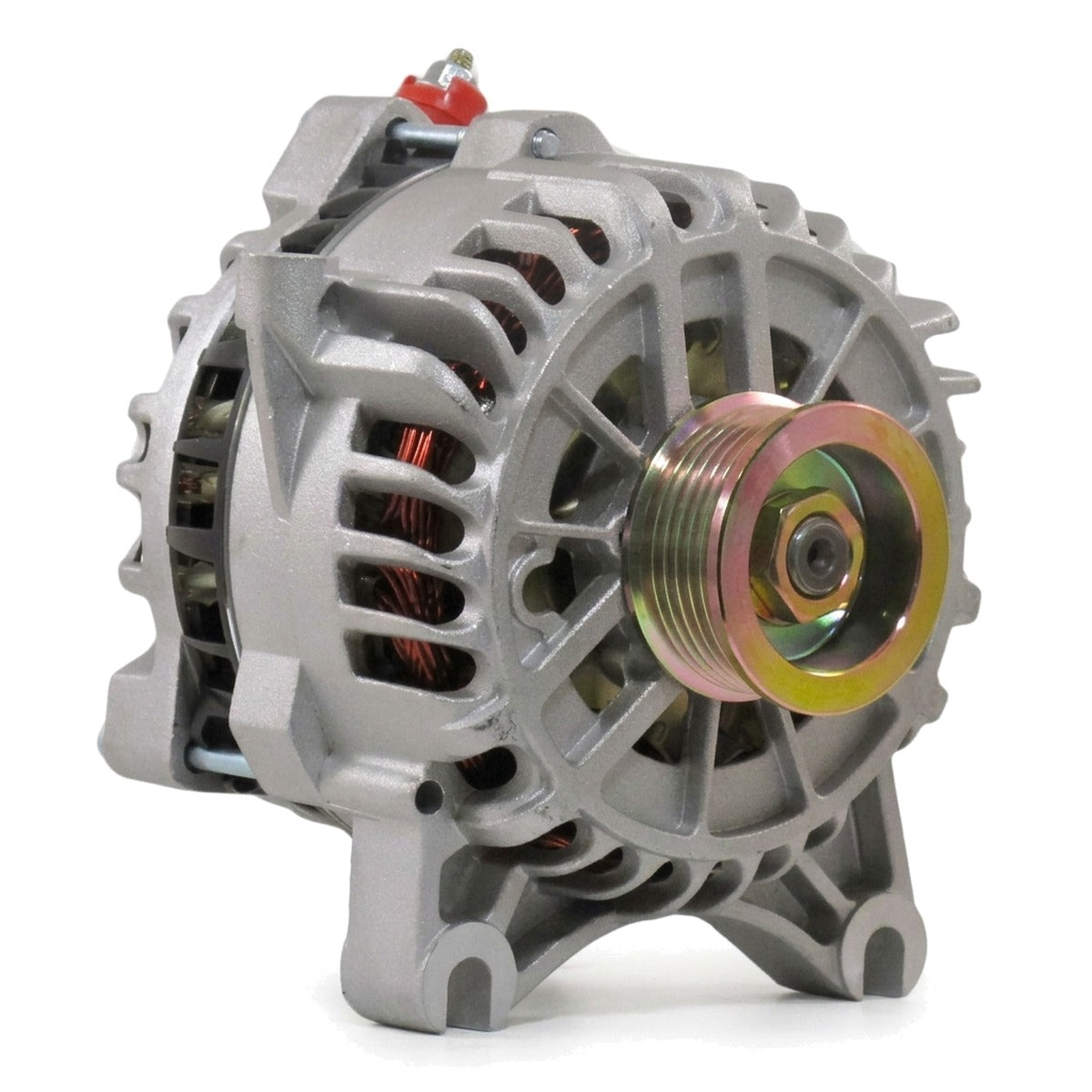

High-Amp 250A Alternator for 2002-2004 Ford F-450,F-550 (P131)
What it Does: The 250-Amp High Output Alternator replaces the low-output factory charging unit on 2002-2004 Ford F-450 and F-550 trucks to deliver stable, high-amperage current for auxiliary electronics, winches, and commercial equipment.
The Stock Ford F-450,F-550 Electrical Deficiencies
Factory charging systems on the P131 platform paired with the 6.8L Triton V10 utilize stock units rated around 110A to 130A. When subjected to continuous commercial duty cycles—such as powering hydraulic liftgates, auxiliary work lights, power inverters, or service-body winches—the stock alternator suffers from severe thermal saturation. Excessive heat causes diode degradation, idle voltage drop, and sluggish accessory operation under heavy amp draw, leading to premature battery failure and erratic powertrain sensor readings.
The Engineering Solution
Engineered and manufactured in the USA, this direct-fit 250-amp alternator resolves high-demand charging bottlenecks. Utilizing dense heavy-gauge copper stator windings, high-temperature varnish insulation, and an upgraded heavy-duty rectifier with premium avalanche diodes, it maintains high output even at low engine RPM. The casing retains factory mounting geometry and serpentine alignment on the 6.8L Triton V10, preventing belt slippage while mitigating heat soak across commercial duty cycles.
What's Included
- 1x 250-Amp High Output Alternator
Technical Specifications
| Fitment | 2002-2004 Ford F-450,F-550 |
|---|---|
| Engine / Chassis | 6.8L Triton V10 / P131 |
| Stock Output | 310 hp / 425 lb-ft |
| Replaces OEM Part # | 3C3TDA, GL-556, GL556, 8310, AL7617X, 3C3T10300DA, 3C3Z10346DA, 334-2533, 8310N, 8310R, 2C3U-10300-AA, 2C3U-10300-AB, 2C3Z-10346-AA, 2C3Z-10346-AARM, 2C3Z-10346-AB, 2C3U-AA, 2C3U-AB, 2C3Z-10V346-ABRM, 3C3T-10300-DA, 3C3Z-10346-DARM, 3C3Z-10V346-DBRM, 8310-250A |
Compatibility
- 2002-2004 Ford F-450 Super Duty 6.8L V10 Gas
- 2002-2004 Ford F-550 Super Duty 6.8L V10 Gas
Frequently Asked Questions & Fitment Warnings
Does this fit the P131 F-450,F-550?
Yes, this is a direct bolt-in fit for the 2002-2004 Ford F-450,F-550 equipped with the 6.8L Triton V10 gas engine.
Do I need to upgrade my main charging wire?
Yes, upgrading to a fused 4-gauge or 1/0-gauge positive charging cable and secondary chassis ground is strongly recommended to safely deliver full 250-amp output.
The Ford Heavy-Duty Standard
Built for severe-duty commercial service, this charging solution provides the electrical headroom required for heavy hauling, commercial trailering, and demanding continuous-draw jobsite operations.
