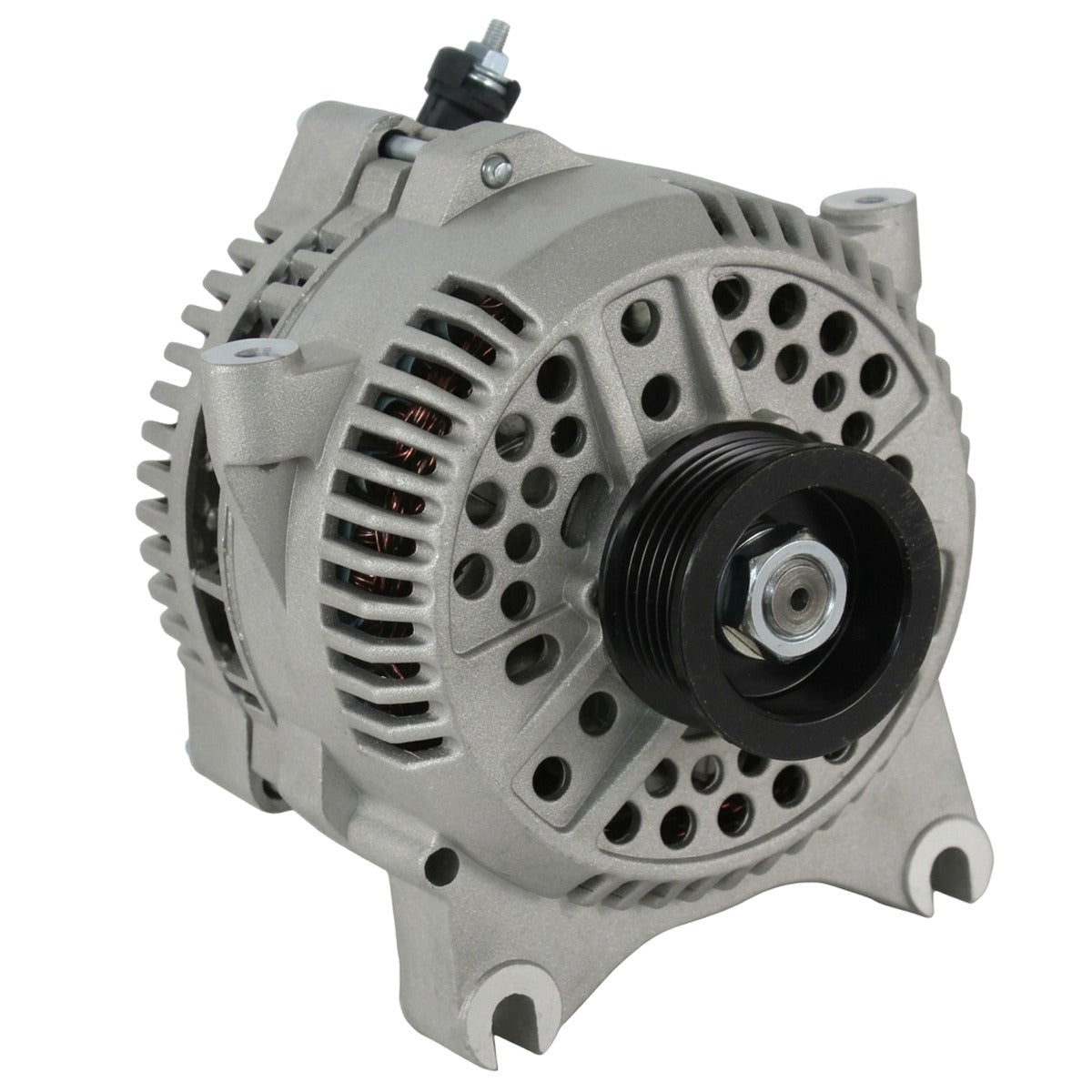

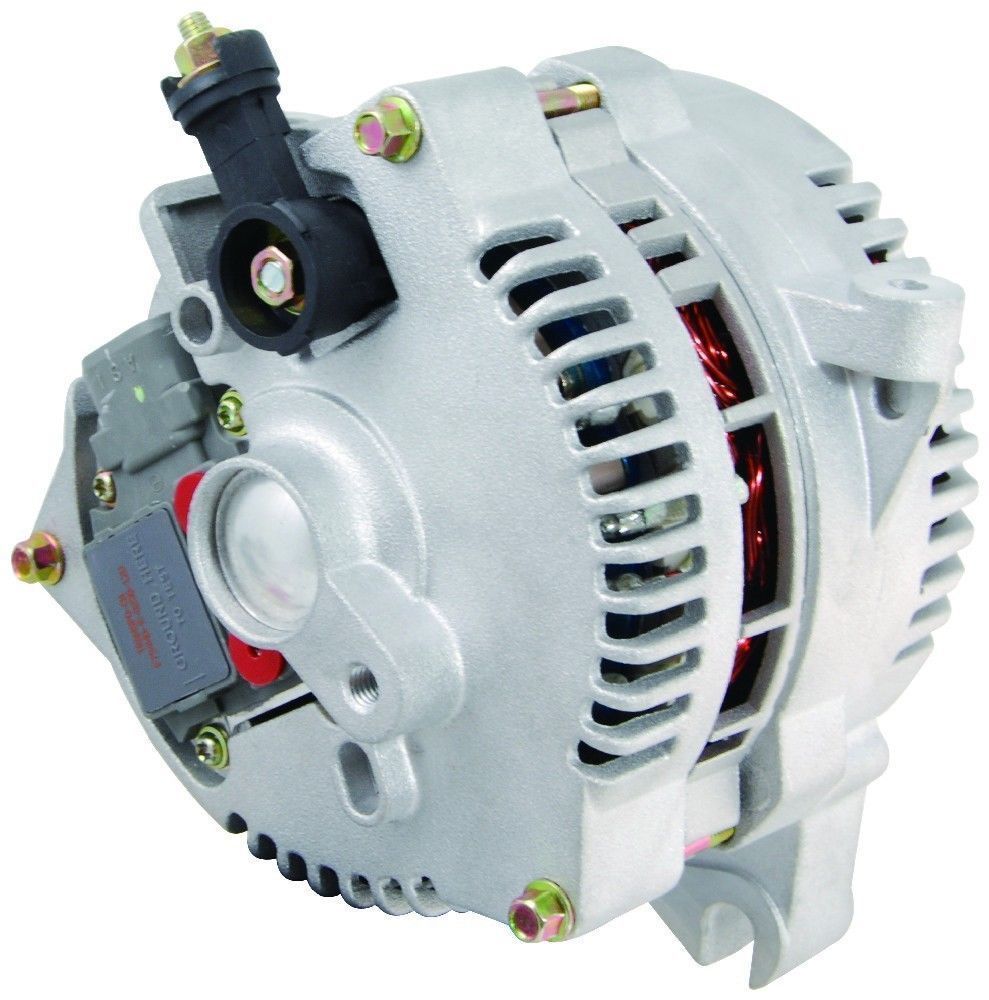

High-Output 300A Alternator for 2005-2008 Ford F-250,F-350 (P221 Super Duty)
What it Does: The 300-amp alternator replaces the low-capacity factory charging unit on 2005-2008 Ford F-250 and F-350 trucks to eliminate system voltage sag and provide reliable high-amperage power under demanding electrical loads.
The Stock Ford F-250,F-350 Electrical Limitations
The factory 110-amp and 130-amp alternators on the P221 Super Duty chassis struggle to supply steady system voltage once auxiliary equipment—such as winches, hydraulic snow plows, commercial inverters, or supplemental lighting—is engaged. Under heavy load, the OEM diode bridge suffers thermal fatigue, causing severe amperage derating. At idle, factory output frequently drops below 70 amps, pulling reserve capacity from the battery, triggering erratic CAN bus communication, and accelerating alternator burnout due to internal heat soak.
The Engineering Solution
Engineered for commercial-duty work cycles, this 300-amp unit features precision heavy-gauge copper stator windings and an upgraded internal rotor assembly that delivers robust current across the entire RPM range, maintaining over 160 amps at curb idle. An integrated heavy-duty heat sink and avalanche rectifier diodes resist thermal degradation and voltage spikes. It installs directly into factory brackets on both the 5.4L Triton V8 and 6.8L Triton V10, matching OEM mounting geometry and plug architecture for units stamped with 5C3T-10300-AA and AL7629X.
What's Included
- 1 Alternator
Technical Specifications
| Fitment | 2005-2008 Ford F-250,F-350 |
|---|---|
| Engine / Chassis | 5.4L / 6.8L Triton Modular / P221 Super Duty |
| Stock Output | 300-362 hp / 365-457 lb-ft |
| Replaces OEM Part # | AL7629X, 5C3T-10300-AA, 5C3T-10300-AC, 5C3Z-10346, 5C3T-AA, 5C3T-AC, GL-606, GL-642, 15433, X15433, 66471, 8429, 8429N, 8429R, 8429-300A |
Compatibility
- 2005-2008 Ford F-250 5.4L
- 2005-2008 Ford F-250 6.8L
- 2005-2008 Ford F-350 5.4L
- 2005-2008 Ford F-350 6.8L
Frequently Asked Questions & Fitment Warnings
Does this fit the P221 F-250,F-350?
Yes, this is a direct fit for the 2005-2008 Ford F-250,F-350 equipped with the 5.4L Triton V8 or 6.8L Triton V10 engine.
Do I need to upgrade my main charging cable?
Yes, running an upgraded fused 0-gauge or 4-gauge B+ charge lead directly to the positive battery terminal is required to safely support 300 amps without melting factory wiring.
The Ford Heavy-Duty Caliber
Built to handle severe commercial towing, fleet abuse, and high-draw job-site operations where stable secondary power is critical to job-site uptime.
