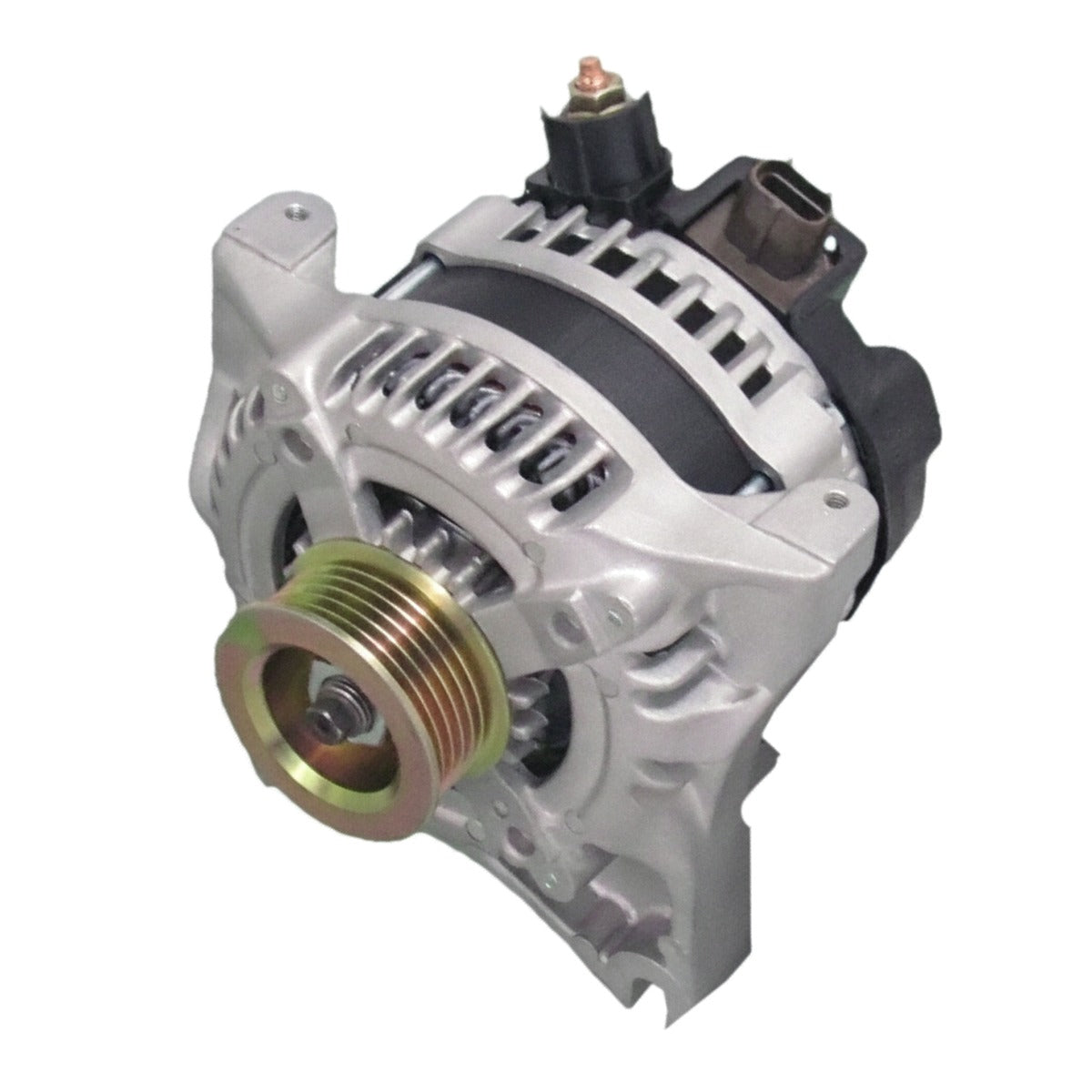

High Output Alternator for Ford F-150 (2009-2010) 4.6L 5.4L

High-Output 300A Alternator for 2009-2010 Ford F-150 (P415)

What it Does: The 300 Amp High Output Alternator replaces the low-output factory charging unit on the 2009-2010 Ford F-150 to deliver sustained, high-amperage electrical current for heavy aftermarket electrical accessories and auxiliary loads.

The Stock Ford F-150 Charging System Limitation

Factory-installed alternators on the eleventh- and twelfth-generation P415 F-150 platforms were engineered to supply only 135 to 150 amps, matching strictly baseline electrical demands. When adding high-draw auxiliary components—such as recovery winches, emergency lighting, snowplow hydraulics, or aftermarket audio equipment—the stock system suffers severe voltage sag. At low engine speeds and prolonged idle, heavy electrical demands overheat the stock stator coils and degrade factory diode rectifiers, inducing heat soak, accelerated battery discharge, and erratic PCM system voltage readings.

The Engineering Solution

This 300-amp high-output replacement utilizes heavy-duty copper stator windings and an oversized internal heat sink equipped with high-amp avalanche diodes to maintain thermal stability under continuous heavy load. Engineered in a heavy-duty aluminum casting to match factory OE mounting brackets and serpentine belt alignment, it delivers up to 180+ amps at idle and a full 300 amps at operational RPM. By replacing OE units like 9L3T-10300-CB and 104210-5970, it eliminates system voltage drops and protects sensitive truck electronics under maximum operational demand.

What's Included

• 1x 300 Amp High Output Alternator

Technical Specifications

Compatibility

• 2009-2010 Ford F-150 4.6L Modular V8
• 2009-2010 Ford F-150 5.4L Triton V8

Frequently Asked Questions & Fitment Warnings

Does this fit the P415 F-150?

Yes, this is a direct fit for the 2009-2010 Ford F-150 equipped with the Modular 4.6L or 5.4L Triton V8 engine.

Do I need to upgrade my charging cables?

To safely handle continuous 300-amp output and avoid resistive heat buildup, a "Big 3" 1/0 AWG power and ground cable upgrade is strongly recommended.

The Ford Caliber

Built to handle the harsh demands of heavy-duty towing, job-site equipment operation, and recovery winching without sacrificing core powertrain reliability.
