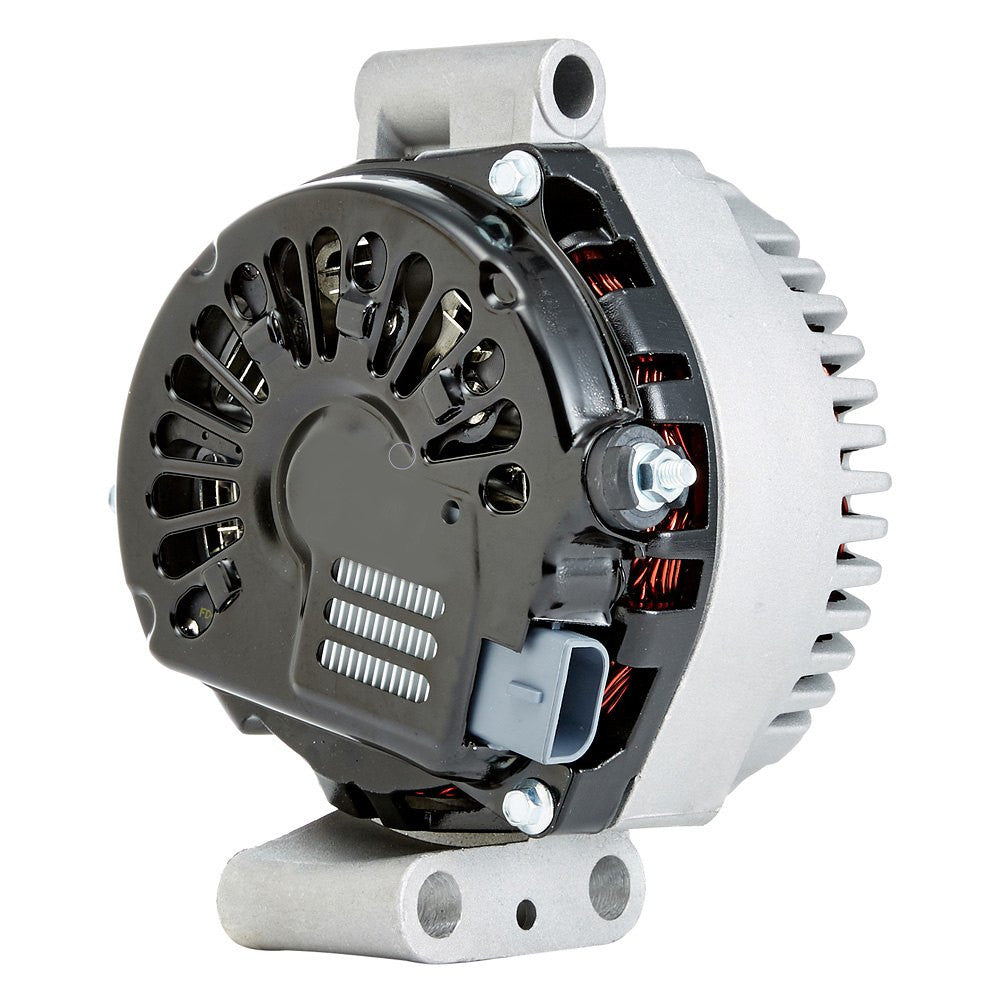

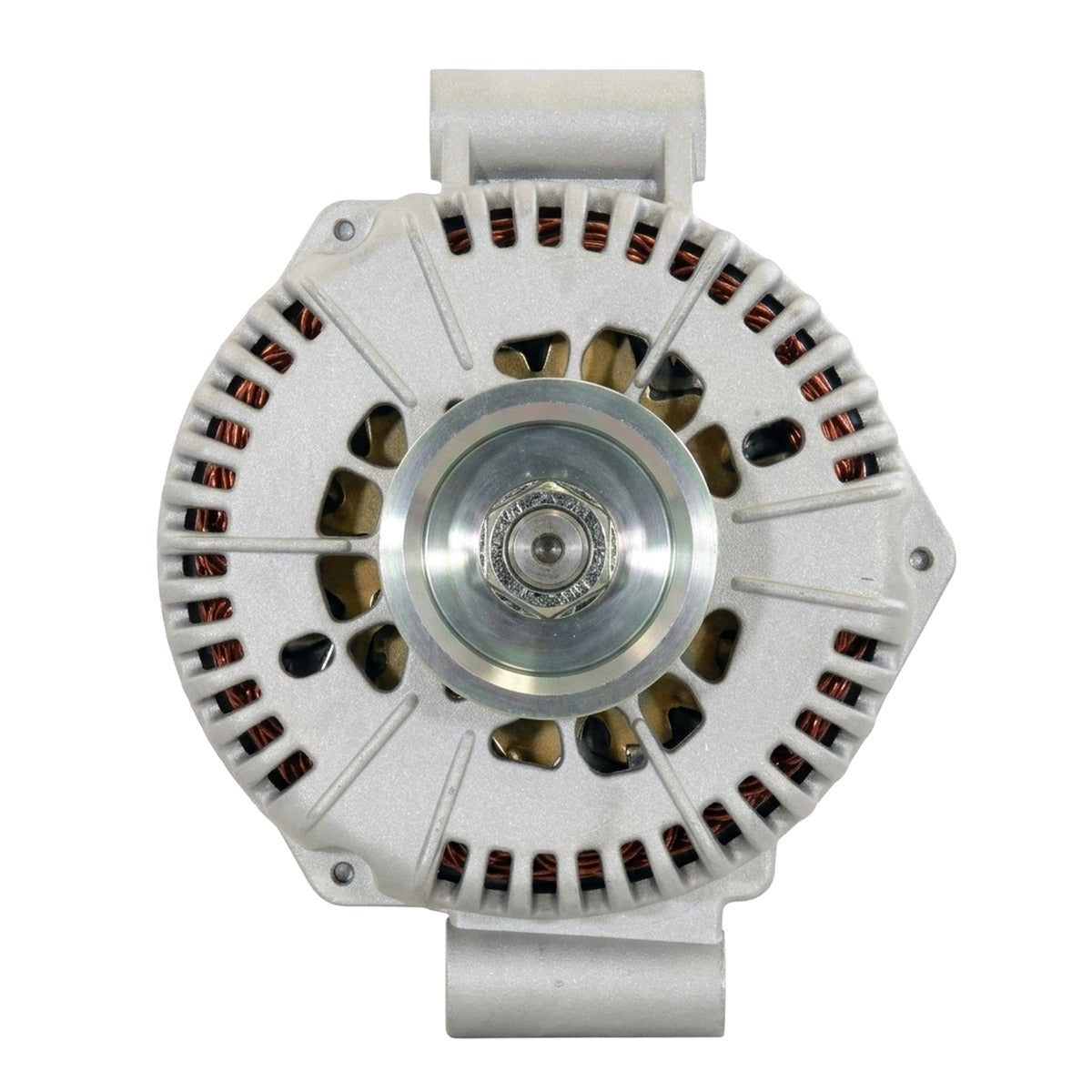

High-Amp 300A Heavy-Duty Alternator for 1996-2001 Ford Explorer (UN105)
What it Does: The 300-amp high-output alternator replaces the low-output factory charging unit on the 1996-2001 Ford Explorer to deliver stable, high-amperage electrical current under sustained accessory and winch loads.
The Stock Ford Explorer Charging Deficiencies
The factory 4G-series alternator fitted to the UN105 chassis produces a meager 95 to 130 amps, tapering to less than 65 amps at idle. When running auxiliary lighting, high-draw audio equipment, electric cooling fans, or recovery winches, system voltage collapses rapidly. This persistent voltage drop induces thermal breakdown across the OEM internal diode bridge and stator windings, ultimately leading to premature stator burn-out, dead batteries, and erratic PCM sensor signaling.
The Engineering Solution
Engineered to resolve acute voltage drop, this 300-amp unit features precision heavy-gauge copper windings, premium dual internal rectifiers, and high-efficiency avalanche diodes that resist thermal saturation. Housed in a precision-cast, heat-dissipating aluminum case, it drops directly onto the factory mounting brackets of the 5.0L Windsor V8. Idle output is substantially increased to eliminate low-RPM voltage sag, providing a continuous, rock-solid 14.4-volt charge curve even under severe duty cycles.
What's Included
- 1 300-Amp High Output Alternator
Technical Specifications
| Fitment | 1996-2001 Ford Explorer |
|---|---|
| Engine / Chassis | 5.0L Windsor V8 / UN105 |
| Stock Output | 215 hp / 288 lb-ft |
| Replaces OEM Part # | F77Z10346AB, XL2U10300AA, XL2Z10346AA, AL7543X, 7787, 334-2270, F77U10300AB, F77U10300AC, 7787N, 7787R, 7787-300A |
Compatibility
- 1996-2001 Ford Explorer Eddie Bauer 5.0L V8
- 1996-2001 Ford Explorer Limited 5.0L V8
- 1996-2001 Ford Explorer XLT 5.0L V8
Frequently Asked Questions & Fitment Warnings
Does this fit the UN105 Explorer?
Yes, this is a direct bolt-in fit for the 1996-2001 Ford Explorer equipped with the 5.0L Windsor V8 engine; it does not fit 4.0L V6 models.
Do I need to upgrade the main charging wire?
Yes, installing a high-amp "Big 3" 1/0 AWG fused power wire directly from the alternator output stud to the battery positive terminal is required to safely carry the 300-amp capacity.
The Ford Truck Reliability Standard
Engineered for workhorse durability and demanding off-grid recovery applications, this charging unit ensures your electrical system delivers unfailing amperage while towing, plowing, or winching under extreme conditions.
