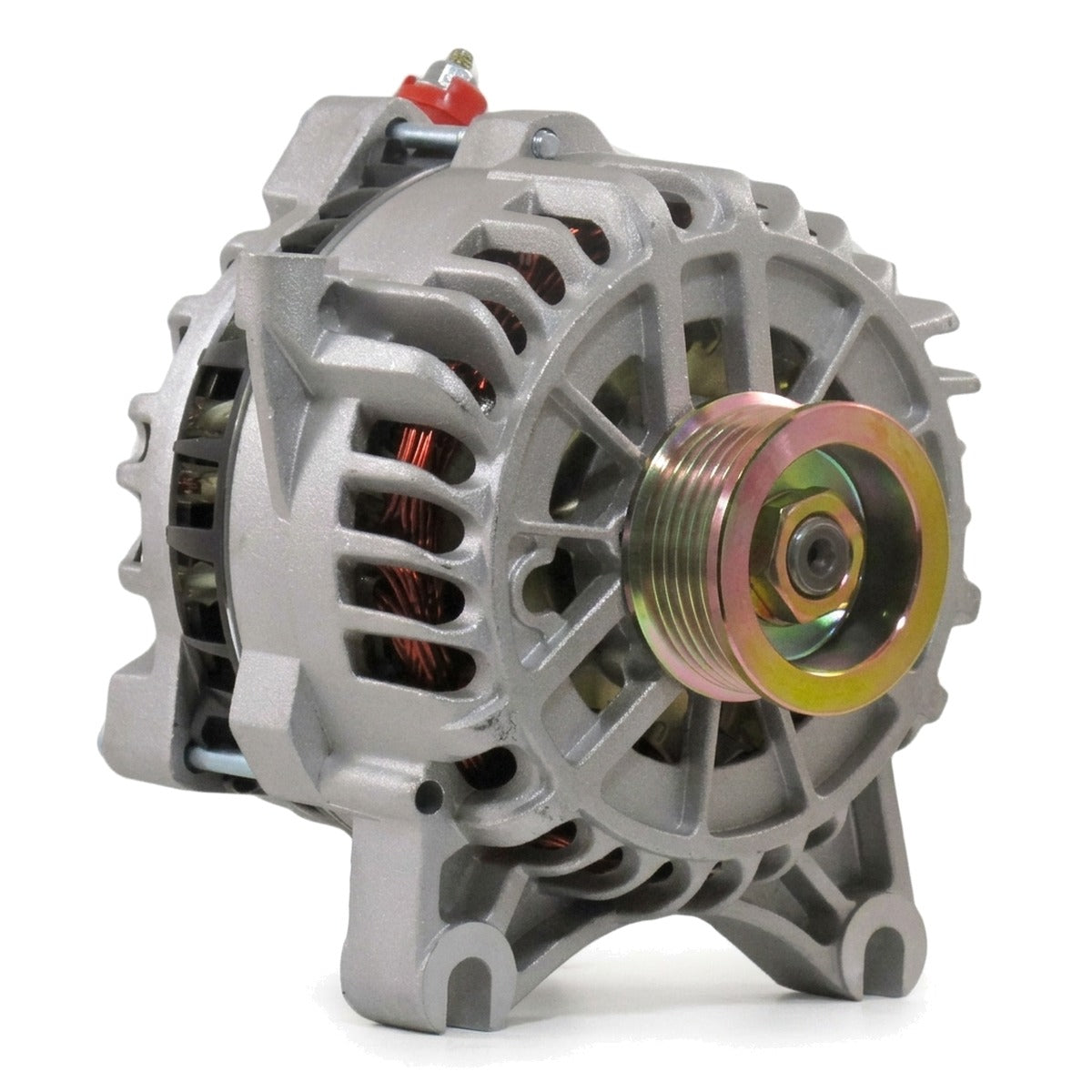

High Output Alternator for Ford Excursion (2002-2005) 5.4L 6.8L

High-Amp 250A Charging Alternator for 2002-2005 Ford Excursion (U137)

What it Does: The 250 Amp High Output Alternator upgrades the factory charging system on the 2002-2005 Ford Excursion to deliver consistent voltage under high electrical loads and eliminate charging drop-off at idle.

The Stock Ford Excursion Electrical Bottleneck

Factory charging systems on the U137 platform come equipped with standard 110-amp or 130-amp alternators that struggle to satisfy modern auxiliary demands. When powering aftermarket electronics, high-draw winches, auxiliary lighting, or heavy trailer brake controllers, the OEM 6G-series casing suffers severe diode ripple and thermal degradation. Under sustained idle with heavy accessory draw, output drops significantly below 12.6V, accelerating battery depletion, stressing the ignition coils, and causing ECM voltage instability across the Modular V8 and Modular V10 powertrain networks.

The Engineering Solution

Engineered for sustained heavy-duty cycles, this 250-amp unit utilizes heavy-gauge copper windings, an oversized heavy-duty internal rectifier, and press-fit avalanche diodes to dissipate extreme under-hood heat soak. The precision-balanced rotor and heavy-duty dual ball bearings reduce drag and premature brush wear at high RPM. Producing substantial amperage output at idle speeds, this alternator maintains solid 14.4V system charging to eliminate headlight flicker, preserve starter health, and protect vital ignition modules during demanding towing and recovery cycles.

What's Included

• 1 x 250 Amp High Output Alternator

Technical Specifications

Compatibility

• 2002-2005 Ford Excursion 5.4L V8
• 2002-2005 Ford Excursion 6.8L V10

Frequently Asked Questions & Fitment Warnings

Does this fit the U137 Excursion?

Yes, this is a direct fit for the 2002-2005 Ford Excursion equipped with the 5.4L Modular V8 or 6.8L Modular V10 gas engine; it does not fit 7.3L or 6.0L Power Stroke diesel models.

Do I need to upgrade my main charging wire when installing a 250A alternator?

Yes, running a fused 0-gauge or 4-gauge "Big 3" power cable from the alternator stud to the positive battery terminal is mandatory to handle the increased 250A current safely without voltage drop.

The Ford Heavy-Duty Standard

Engineered to withstand the demanding duty cycles of the heavy-duty Super Duty platform, this alternator ensures uninterrupted electrical supply when towing maximum GVWR loads through extreme thermal conditions.
