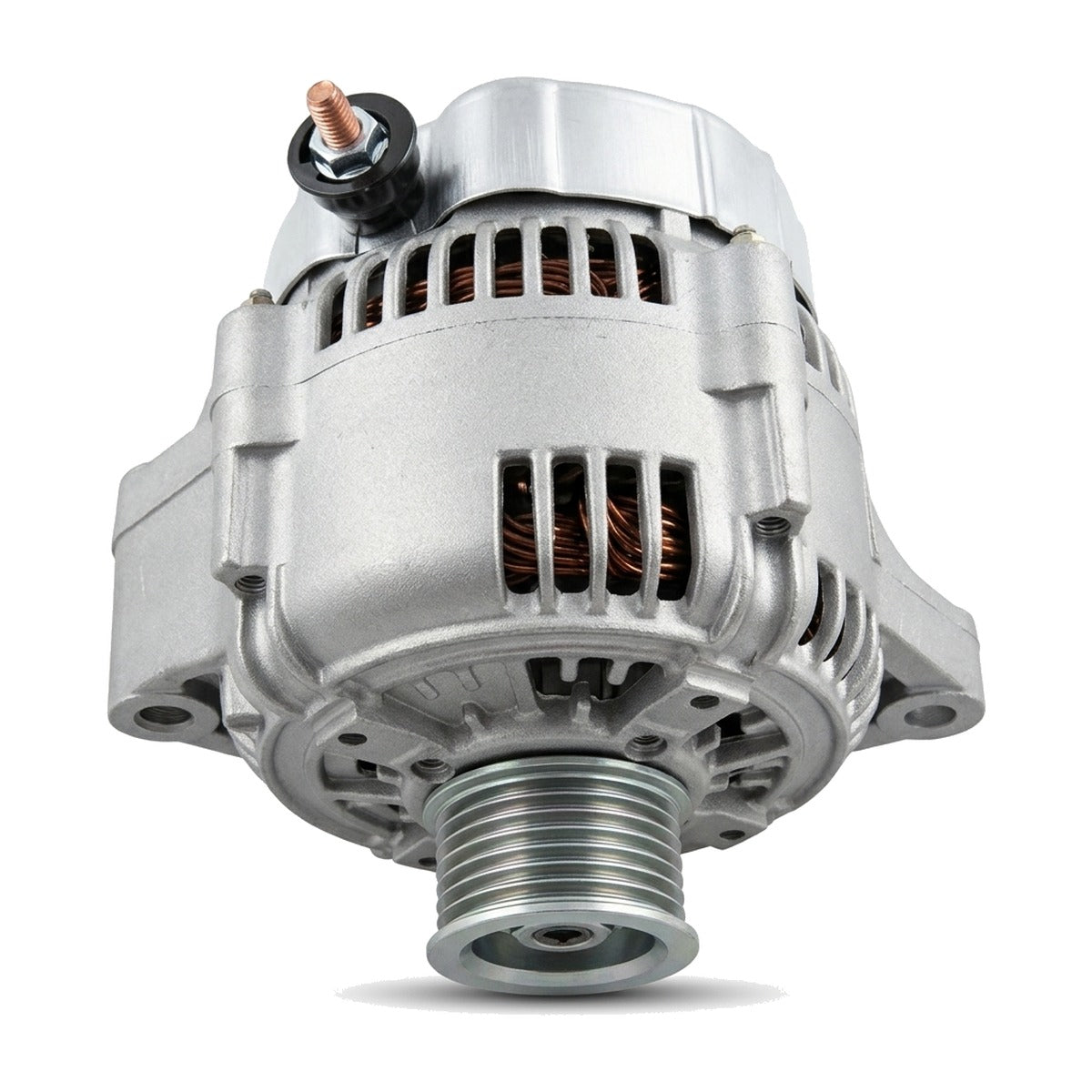

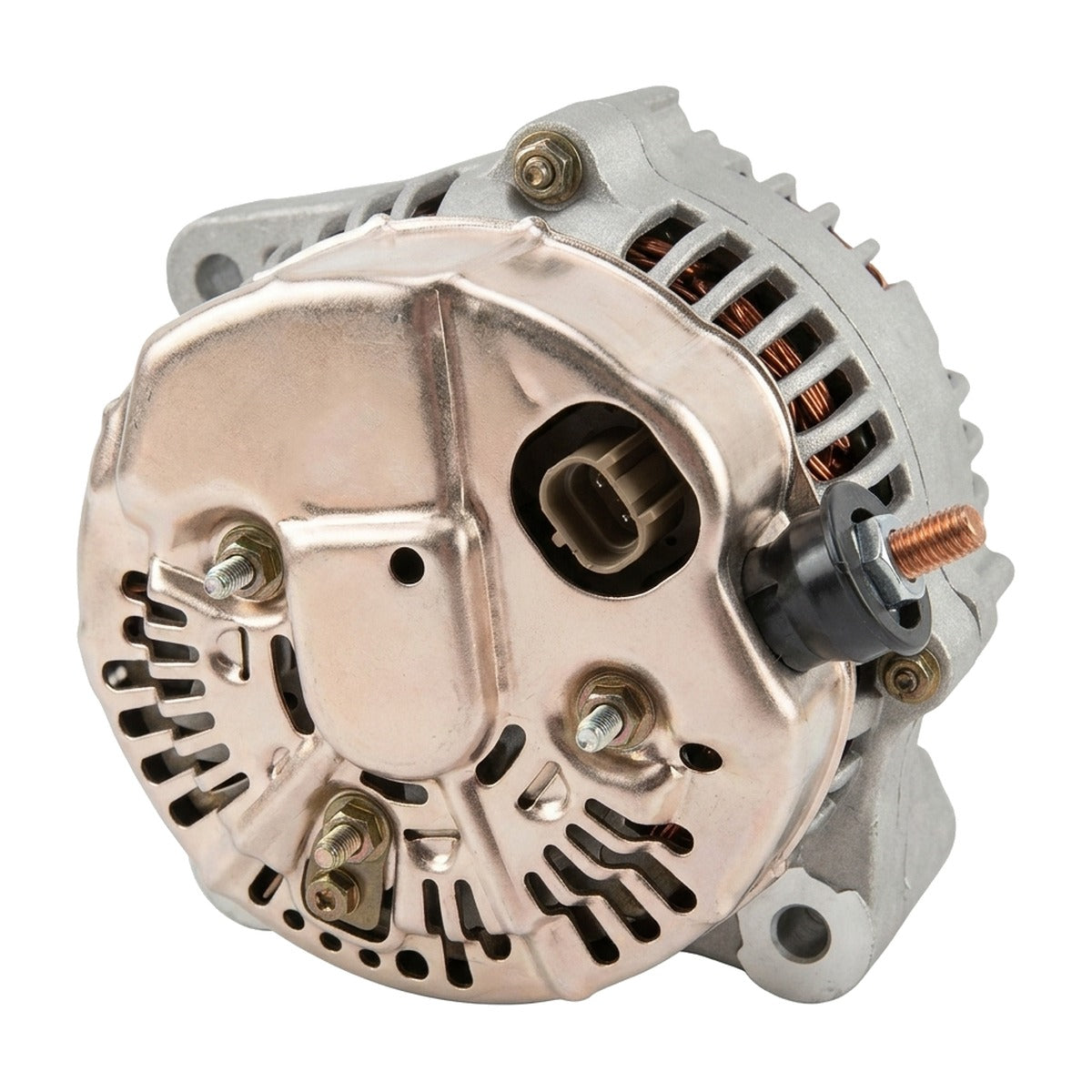

High Output Alternator for Dodge Viper (1998-2002) 8.0L

High-Amp Charging High Output Alternator for 1998-2002 Dodge Viper (SR II)

What it Does: The High Output Alternator replaces the low-output factory charging unit on the 1998-2002 Viper to stabilize system voltage and provide 200 amps of reserve electrical capacity across all RPM ranges.

The Stock Dodge Viper Charging Deficit and Thermal Fatigue

The factory Nippon Denso charging unit on the second-generation Viper is rated for approximately 117 to 120 amps, which struggles under continuous load. In the tightly packaged SR II engine bay, extreme thermal buildup from the massive exhaust manifolds cook the factory diode trio and internal regulator. When operating dual electric cooling fans, high-draw ignition components, or auxiliary audio amplifiers, the stock charging system suffers from severe voltage drops at hot idle, dropping below 12.8 volts. This thermal fatigue causes premature stator breakdown, diode failure, battery starvation, and erratic instrument cluster operation.

The Engineering Solution

This 200-amp direct replacement is engineered specifically to eliminate idle voltage drop on the 8.0L V10. Featuring precision-wound, heavy-gauge copper stator coils and an enhanced rotor assembly, it generates substantial charging current even at low idle RPMs. Premium dual-sealed bearings counteract high-RPM serpentine belt deflection common to high-rev shifts, while a heavy-duty internal bridge rectifier and solid-state voltage regulator maintain a rigid 13.5 to 14.5-volt output. Housed in a precision-cast casing configured with factory-matched mounting ears and OE-style plug connectors, this unit handles continuous high-current thermal loads without output degradation.

What's Included

• 1 High Output 200A Alternator (Internal Regulator, Pulley Pre-Installed)

Technical Specifications

Compatibility

• 1998-2002 Dodge Viper GTS (8.0L V10)
• 1998-2002 Dodge Viper RT/10 (8.0L V10)
• 1998 Dodge Viper GT2 Commemorative Edition (8.0L V10)
• 2002 Dodge Viper Final Edition (8.0L V10)

Frequently Asked Questions & Fitment Warnings

Does this fit the SR II Viper?

Yes, this is a direct fit for the 1998-2002 Dodge Viper equipped with the 8.0L Viper V10 engine; it does not fit 1992-1997 generation-one front timing covers without bracket modification.

Do I need to upgrade my charging cables during installation?

While this alternator utilizes the factory connector and post, upgrading the main B+ charging wire and chassis grounds to 4-gauge or 1/0 wiring (the Big Three upgrade) is strongly recommended to carry the full 200-amp peak capability safely without resistance choke points.

The Dodge Muscle Caliber

Taming an eight-liter pushrod powerplant requires electrical stability capable of powering massive auxiliary cooling setups and high-draw fuel delivery systems. Built to withstand high-RPM track abuse and underhood heat soak, this alternator delivers dependable current demand so your Viper runs with maximum ignition efficiency and zero hesitation.
