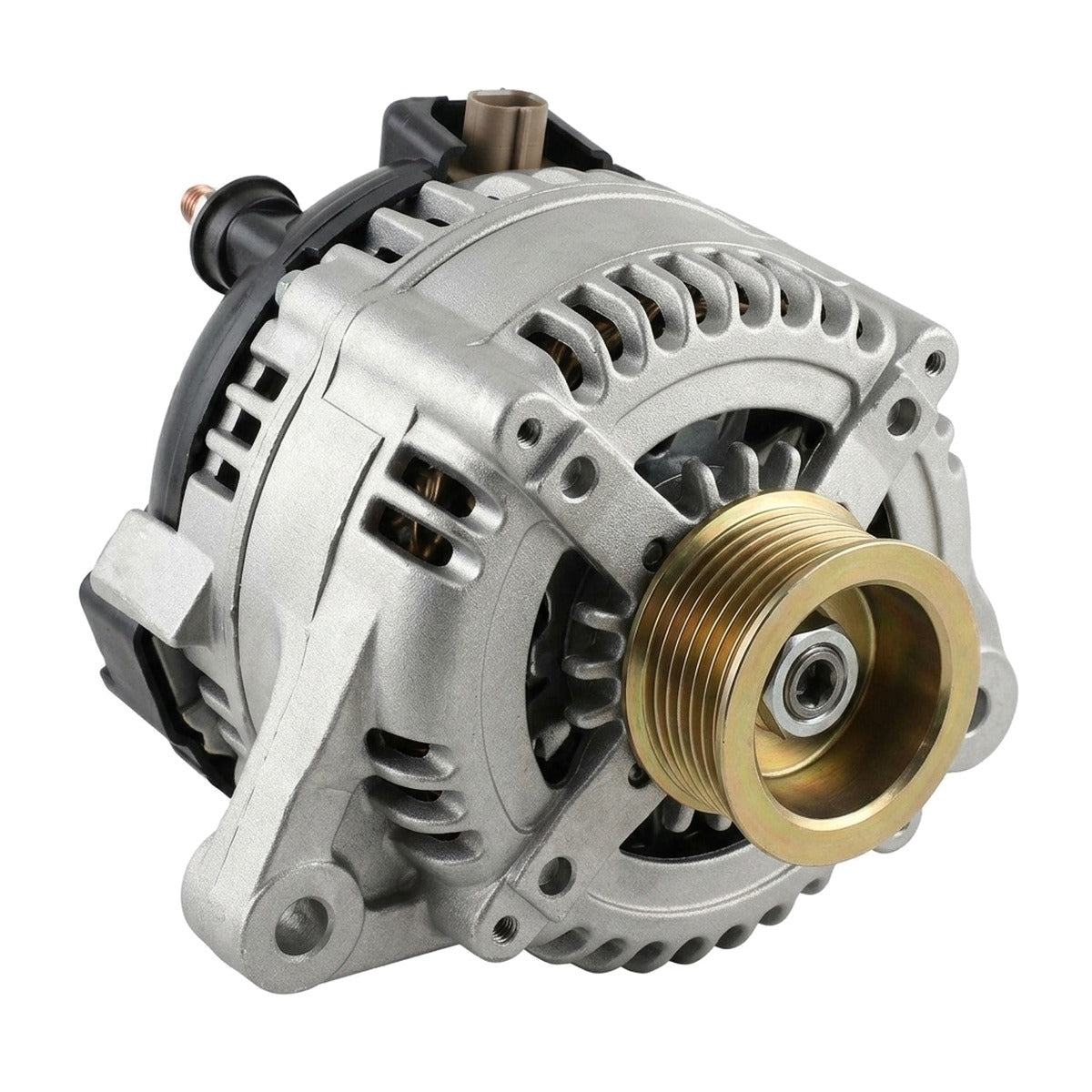

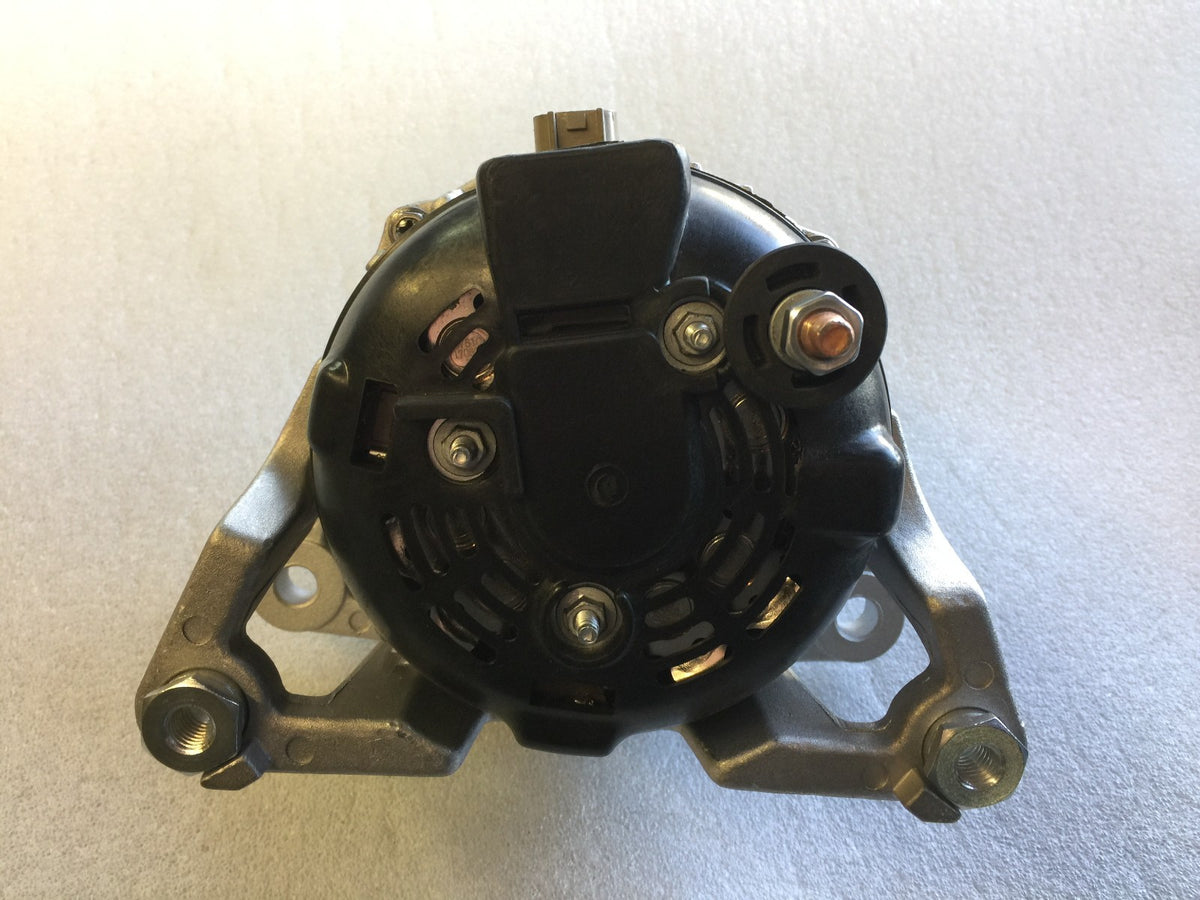

High Output Alternator for Dodge Ram 2500 Ram 3500 (2003-2005) 5.9L

High-Output 200-Amp Alternator for 2003-2005 Dodge Ram 2500, Ram 3500 (DR/DH)

What it Does: The 200-amp high-output alternator replaces the factory charging unit on the 2003-2005 Dodge Ram 2500 and Ram 3500 to maintain stable system voltage under severe auxiliary electrical loads and high-draw cold-start cycles.

The Stock Dodge Ram 2500, Ram 3500 Electrical Shortcoming

Factory charging systems on the DR/DH platform utilize standard 136-amp or optional 160-amp alternators that struggle with high electrical demands. The 5.9L Cummins ISB intake grid heaters draw upwards of 100 to 200 amps during cold startups, inducing massive voltage drops that strain dual batteries and starve downstream electronics. Adding winches, snowplows, inverters, or commercial trailer electronics causes OEM rectifier diodes to overheat, leading to premature diode pack breakdown, thermal fatigue, and chronic battery undercharging.

The Engineering Solution

Engineered for maximum duty cycles, this 200-amp unit delivers substantial current reserve across the RPM range, including robust idle output. Built with high-conductivity pure copper windings, a heavy-duty avalanche diode rectifier assembly, and premium high-temperature bearings, it resists thermal breakdown under continuous heavy amperage load. Direct bolt-in fitment matches the factory bracketry, wiring harness, and serpentine drive geometry without requiring custom fabrication.

What's Included

• 1 x 200-Amp High Output Alternator

Technical Specifications

Compatibility

• 2003-2005 Dodge Ram 2500 5.9L Turbo Diesel
• 2003-2005 Dodge Ram 3500 5.9L Turbo Diesel

Frequently Asked Questions & Fitment Warnings

Does this fit the DR/DH Ram 2500, Ram 3500?

Yes, this is a direct fit for the 2003-2005 Dodge Ram 2500 and Ram 3500 equipped with the 5.9L Cummins ISB turbo diesel engine; it does not fit gasoline V8 or V10 models.

Should I upgrade the main charging wire with this 200-amp unit?

Yes, running an upgraded heavy-gauge power lead (Big 3 upgrade) directly from the alternator output stud to the primary battery is recommended to safely transfer full 200-amp capacity without resistance buildup.

The Dodge Heavy-Duty Standard

Built for rigorous commercial hauling and severe-duty towing applications, this alternator ensures consistent electrical stability under high thermal stress and extreme operating environments.
