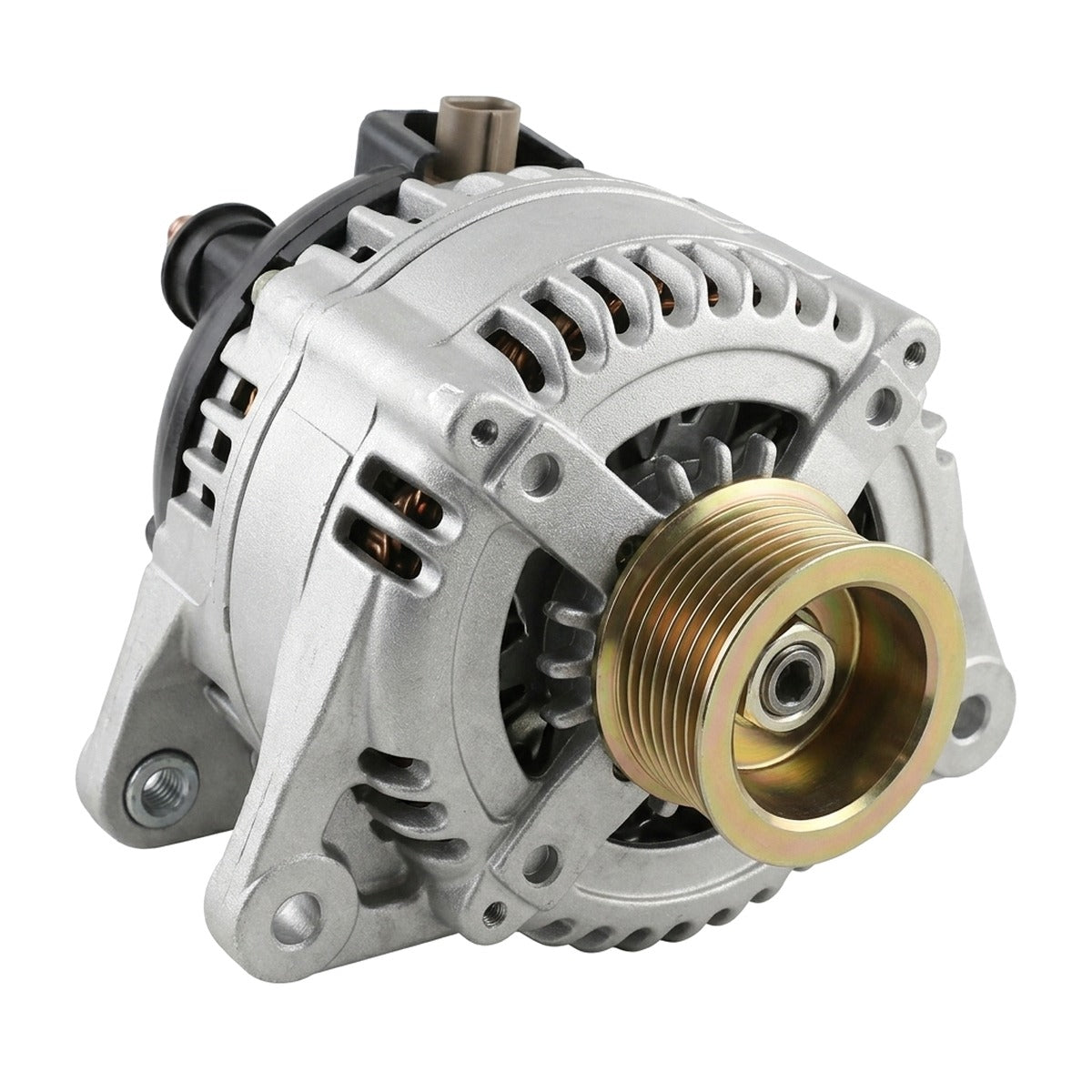

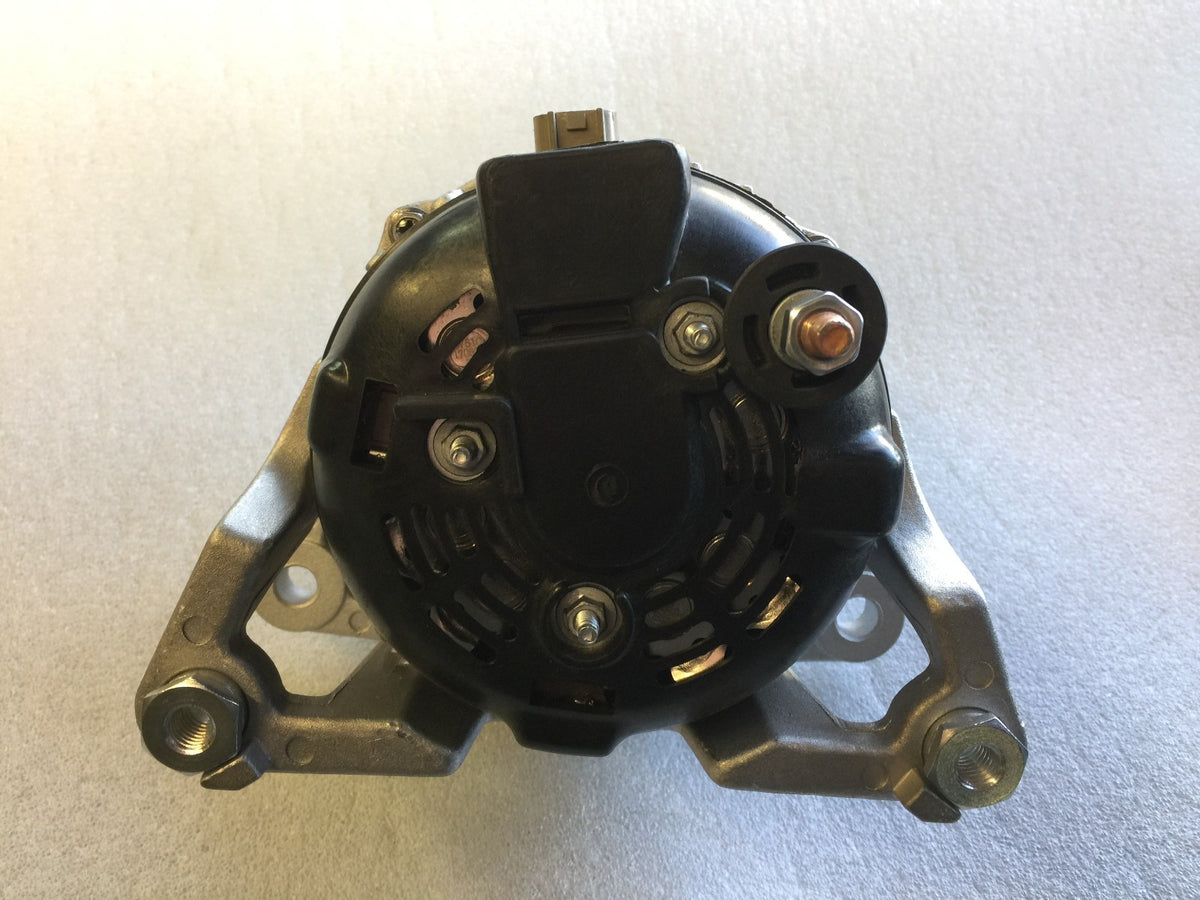

High Output Alternator for Dodge Ram 2500 (2006-2009) 5.9L

High-Amp Replacement Alternator for 2006-2009 Dodge Ram 2500 (DH)

What it Does: The High Output Alternator replaces the factory charging unit on the 2006-2009 Dodge Ram 2500 to deliver a continuous 200-amp electrical supply, stabilizing system voltage under heavy auxiliary loads and cold-start grid heater cycles.

The Stock Dodge Ram 2500 Charging Limitation

Factory alternators on the DH platform struggle to maintain adequate voltage during sustained low-RPM operation. The 5.9L Cummins platform utilizes dual intake grid heaters drawing upwards of 180-200 amps intermittently during startup, immediately draining the dual battery bank. Combined with common heavy-duty additions like auxiliary work lighting, winches, snow plows, and commercial trailer brake controllers, the stock 136-amp unit suffers excessive diode heat soak, leading to premature bridge rectifier burnout, voltage sag, and premature battery failure.

The Engineering Solution

This 200-amp direct replacement is engineered with high-temperature heavy-duty stator windings and a commercial-grade 12-diode bridge rectifier designed to shed thermal buildup rapidly. Premium copper field coils and high-purity internal conductors sustain maximum duty cycles without thermal breakdown. By significantly improving idle amperage output, it prevents voltage drop across the vehicle bus network, safeguarding the Engine Control Module (ECM) and sensitive transmission electronics during peak current demand.

What's Included

• 1 Alternator (200 Amp)

Technical Specifications

Compatibility

• 2006-2009 Dodge Ram 2500 5.9L Turbo Diesel (All Cab Configurations and Trims: ST, SLT, Laramie, Power Wagon, TRX4)

Frequently Asked Questions & Fitment Warnings

Does this fit the DH Ram 2500?

Yes, this is a direct bolt-in fit for the 2006-2009 Dodge Ram 2500 equipped with the 5.9L Cummins engine, utilizing the factory serpentine belt profile and mounting bracketry.

Should I upgrade the main charging cable when installing this 200-amp unit?

Installing a 1/0 or 2-gauge positive charging cable with dedicated circuit protection is recommended to safely transfer the increased amperage without heat buildup or resistance.

The Dodge Heavy-Duty Standard

Engineered to handle severe towing, commercial payload cycles, and harsh job site environments, this high-output alternator provides relentless electrical stability for your Cummins workhorse.
