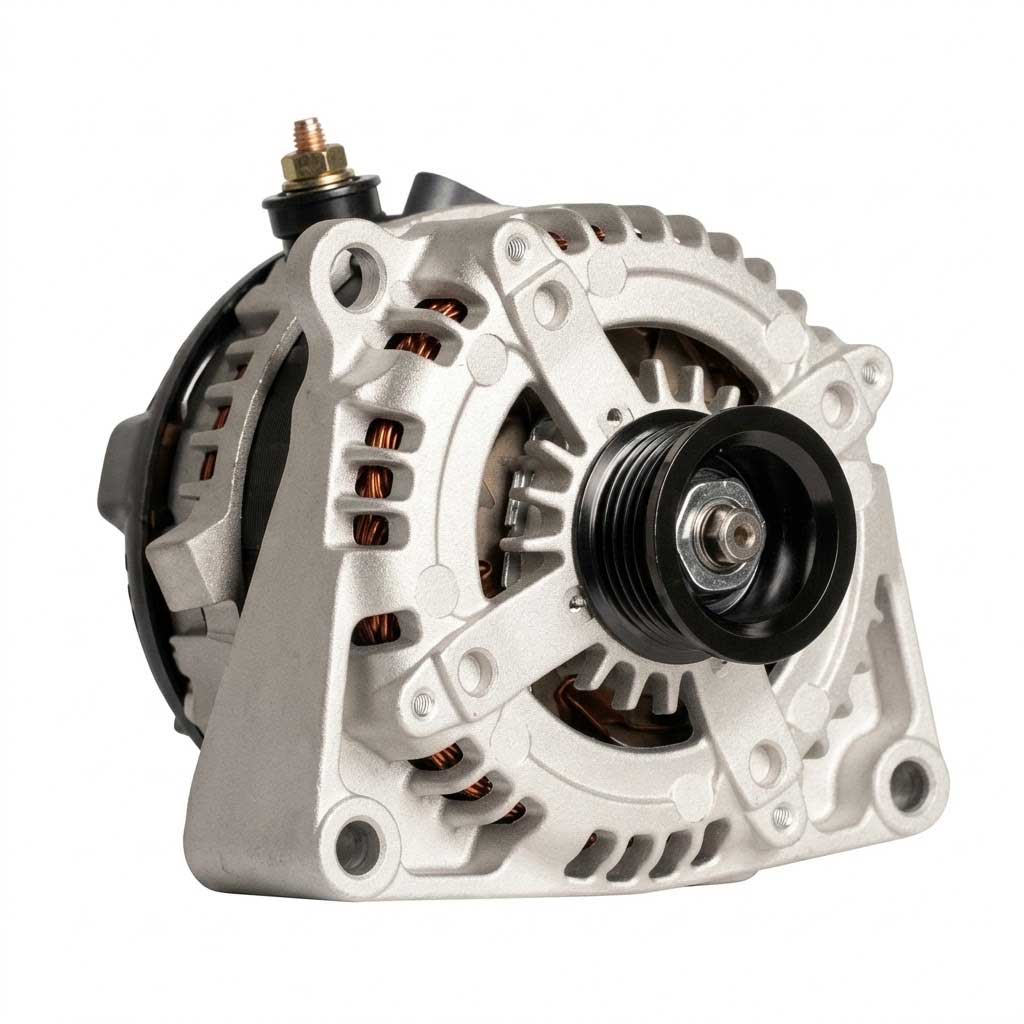

High Output Alternator for Chevrolet Trailblazer (2003-2006) 5.3L

High-Capacity 250-Amp Alternator for 2003-2006 Chevrolet Trailblazer (GMT360/GMT370)

What it Does: The high output 250-amp alternator delivers continuous, stable 14.4-volt electrical current to the 2003-2006 Chevrolet Trailblazer 5.3L, eliminating system voltage sag under heavy secondary electrical loads.

The Stock Chevrolet Trailblazer Electrical Bottleneck

Factory charging systems on the GMT360 platform utilize 105-amp to 145-amp units engineered only for baseline vehicle draws. When auxiliary lighting, audio amplifiers, winches, or towing accessories are added, the OEM stator experiences severe saturation. This causes internal heat soak, dragging charging voltage under 12.6V at curb idle. Over prolonged duty cycles, thermal breakdown degrades internal rectifier diodes and melts lead solder, ultimately precipitating charging failure and secondary battery depletion.

The Engineering Solution

This 250-amp charging unit utilizes heavy-gauge, high-temperature copper windings paired with high-efficiency avalanche diodes to deliver maximum low-RPM output and thermal endurance. Operating efficiently within a precision-machined, heat-dissipating housing, it pushes over 150 amps at idle and a full 250 amps at operating speeds. Designed to replace obsolete OE units such as 10464405 and 15263859, it features an OE-matched internal voltage regulator for seamless pulse-width communication with the factory powertrain control module without triggering dash warnings.

What's Included

• 1x 250-Amp High Output Alternator

Technical Specifications

Compatibility

• 2003-2006 Chevrolet Trailblazer 5.3L V8
• 2003-2006 Chevrolet Trailblazer EXT 5.3L V8

Frequently Asked Questions & Fitment Warnings

Does this fit the GMT360 Trailblazer?

Yes, this is a direct fit for the 2003-2006 Chevrolet Trailblazer equipped with the LM4 or LH6 5.3L V8 engine. It does not fit models equipped with the 4.2L Atlas Inline-6 (LL8) or 6.0L V8 (LS2) engines due to different mounting bracket locations and pulley alignments.

Do I need to upgrade my wiring with this 250-amp unit?

While the unit bolts directly into the factory location, installing a 1/0 AWG "Big 3" wiring upgrade from the alternator to the battery and chassis ground is strongly recommended to safely carry the increased amperage capacity.

The Chevrolet Heavy-Duty Standard

Engineered to handle severe utility environments, heavy trail winching, and demanding auxiliary electrical loads, this high-output charging solution delivers uncompromising electrical stability for your truck platform.
