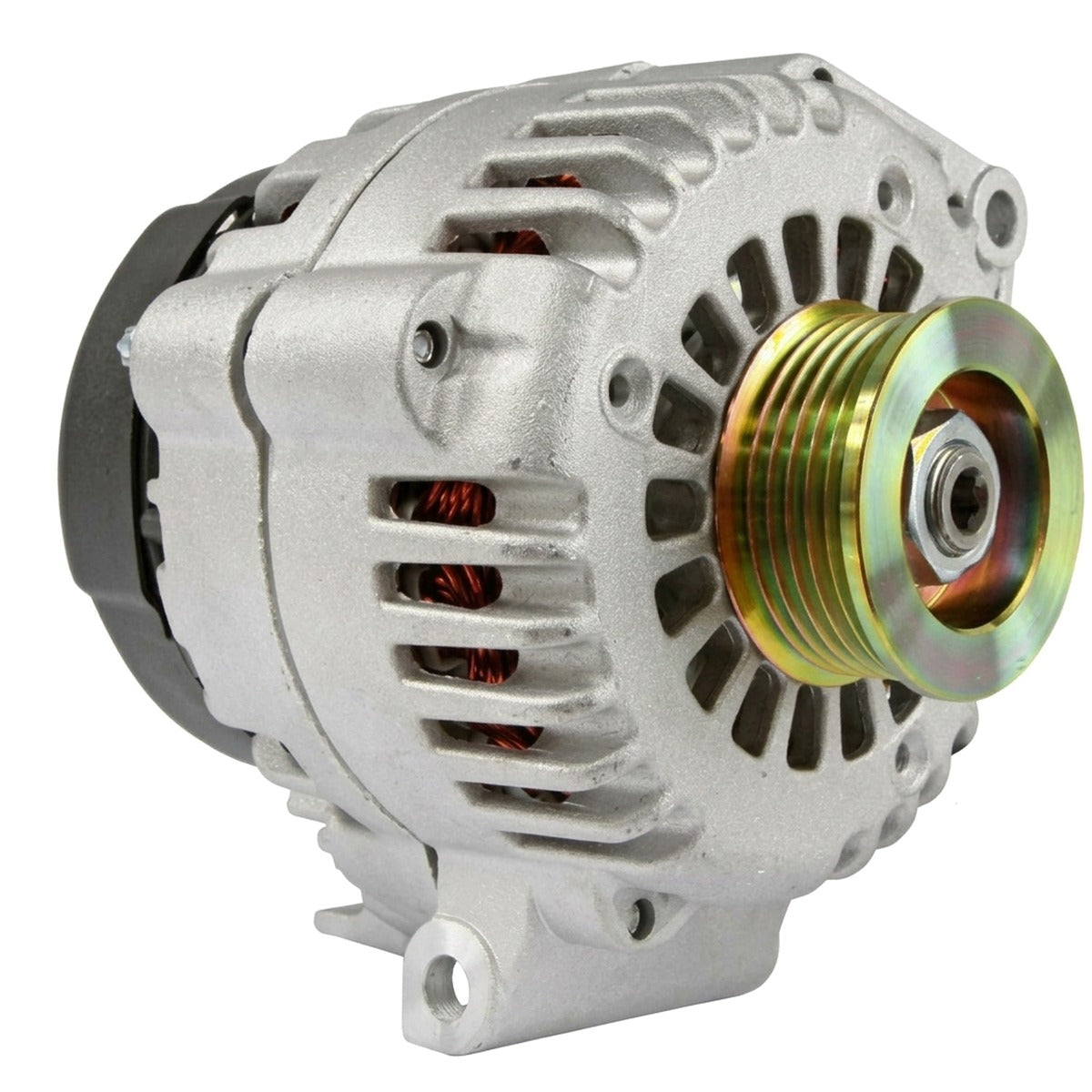

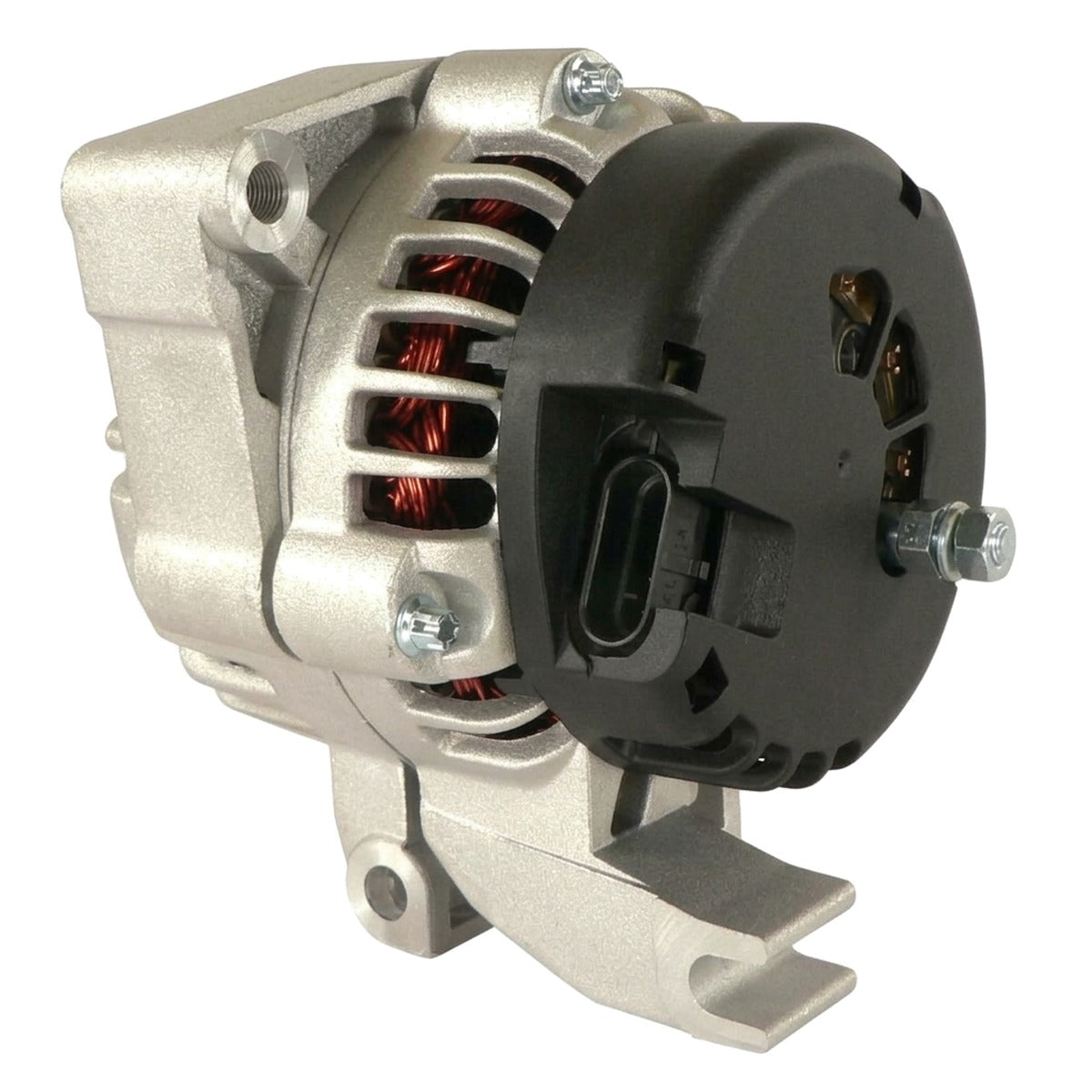

High Output Alternator for Chevrolet Impala Monte Carlo (2000-2001) 3.4L 3.8L

High-Output 250-Amp Alternator for 2000-2001 Chevrolet Impala, Monte Carlo (W-Body)

What it Does: The 250-amp high-output alternator replaces the factory 105-amp unit on 2000-2001 Chevrolet Impala and Monte Carlo models to eliminate voltage drop, stabilize charging system current, and support high-draw electrical accessories.

The Stock Chevrolet Impala, Monte Carlo Charging Limitations

Factory Delco charging units installed on the GM W-Body platform generate a nominal 102 to 105 amps, which leaves negligible overhead once factory accessories, dual electric cooling fans, and fuel pumps operate under load. When aftermarket high-draw audio equipment, supplemental lighting, or performance electronics are added, the OEM bridge rectifier suffers severe thermal stress. This chronic heat soak causes diode breakdown, premature regulator failure, and notable idle voltage sag below 12.5V, starving ignition coils and accelerating battery failure.

The Engineering Solution

Engineered and manufactured in the USA, this direct-replacement 250-amp unit resolves factory electrical bottlenecks. Utilizing high-efficiency heavy-duty copper stator windings, an oversized heavy-duty rectifier, and high-temp avalanche diodes, this unit outputs reliable amperage from idle through peak RPM. Precision-machined housings deliver optimal thermal dissipation, protecting internal components against underhood heat soak on the 3.4L LA1 and 3.8L L36 engines. It directly replaces OEM part numbers 10464449, 10447094, and 321-1809 without chassis modifications.

What's Included

• 1 x 250-Amp High-Output Alternator

Technical Specifications

Compatibility

• 2000-2001 Chevrolet Impala 3.4L
• 2000-2001 Chevrolet Impala 3.8L
• 2000-2001 Chevrolet Monte Carlo 3.4L
• 2000-2001 Chevrolet Monte Carlo 3.8L

Frequently Asked Questions & Fitment Warnings

Does this fit the W-Body Impala, Monte Carlo?

Yes, this is a direct fit for the 2000-2001 Chevrolet Impala and Monte Carlo equipped with the 3.4L LA1 or 3.8L L36 engine.

Do I need to upgrade my main charging cables?

A 1/0 AWG Big-3 wiring upgrade from the alternator to the battery and chassis ground is strongly recommended to safely utilize the full 250-amp output capacity.

The Chevrolet Performance Caliber

Engineered for high-demand street and performance builds, this unit ensures stable line voltage to the GM powertrain control module and ignition system under sustained heavy electrical loads.
