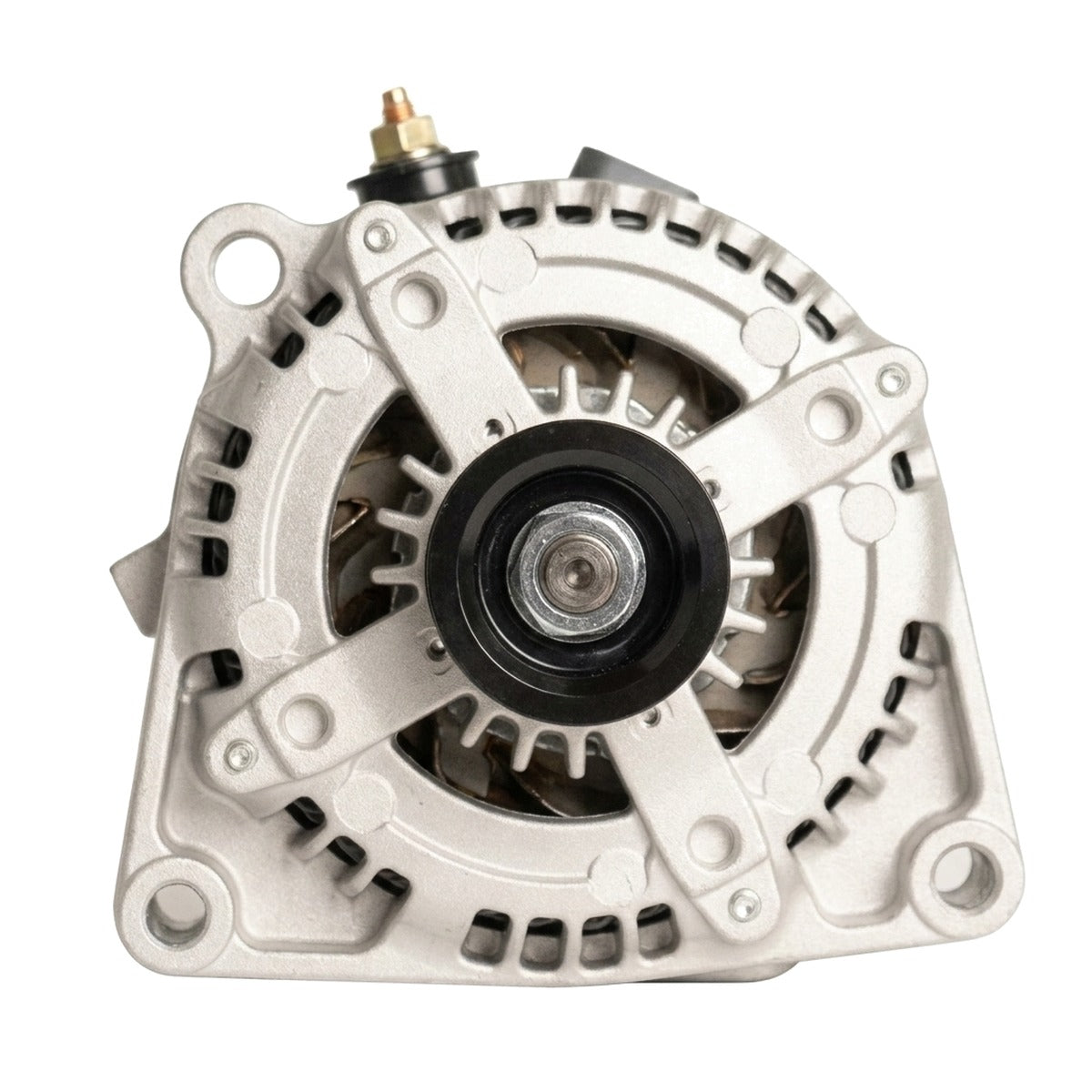

High-Amp 300A Replacement Alternator for 2009-2010 Chevrolet Express (GMT610)
What it Does: The 300 Amp High Output Alternator replaces the factory charging unit on the 2009-2010 Chevrolet Express to provide stable DC voltage and eliminate system voltage drop under severe auxiliary electrical loads.
The Stock Chevrolet Express Charging Limitations
The factory charging system on the GMT610 platform relies on an OEM unit rated between 105 and 145 amps. In commercial or converted fleet service, auxiliary inverters, liftgates, secondary lighting, and heavy continuous draw overwhelm standard rectifiers. Under sustained engine bay thermal soak, the stock internal avalanche diodes break down, leading to stator coil insulation degradation, severe voltage sag below 12.4V at idle, and premature battery failure.
The Engineering Solution
Engineered for high-amperage duty cycles, this 300-amp unit utilizes heavy-gauge pure copper windings and a heavy-duty, internal 12-diode bridge rectifier mounted on an oversized aluminum heat sink. Precision hairpin/stator architecture enhances current density while minimizing internal electrical resistance. The high-performance internal regulator mitigates thermal drift, ensuring stable 14.4V charging profiles from low RPM idle up through highway speeds while directly bolting onto the Vortec 4300 (LU3) bracketry.
What's Included
- 1 Alternator (300 Amp)
Technical Specifications
| Fitment | 2009-2010 Chevrolet Express |
|---|---|
| Engine / Chassis | LU3 Vortec 4.3L V6 / GMT610 |
| Stock Output | 195 hp / 260 lb-ft |
| Replaces OEM Part # | 8302N, 8302, 10392759, 15200268, 15263858, 8400078, AL8529X, 8302-300 |
Compatibility
- 2009 Chevrolet Express 1500 (4.3L V6)
- 2009 Chevrolet Express 2500 (4.3L V6)
- 2010 Chevrolet Express 1500 (4.3L V6)
- 2010 Chevrolet Express 2500 (4.3L V6)
Frequently Asked Questions & Fitment Warnings
Does this fit the GMT610 Express?
Yes, this is a direct bolt-on fit for the 2009-2010 Chevrolet Express equipped with the LU3 4.3L engine.
Is a "Big 3" wiring upgrade required for this alternator?
To safely handle continuous 300A current without excessive resistance, upgrading the alternator-to-battery charging cable and ground paths to 1/0 AWG wire is mandatory.
The Chevrolet Commercial Standard
Engineered to handle severe fleet service and continuous heavy-duty towing demands, this charging upgrade provides the sustained electrical stability necessary to keep work vans operational under harsh payload conditions.
