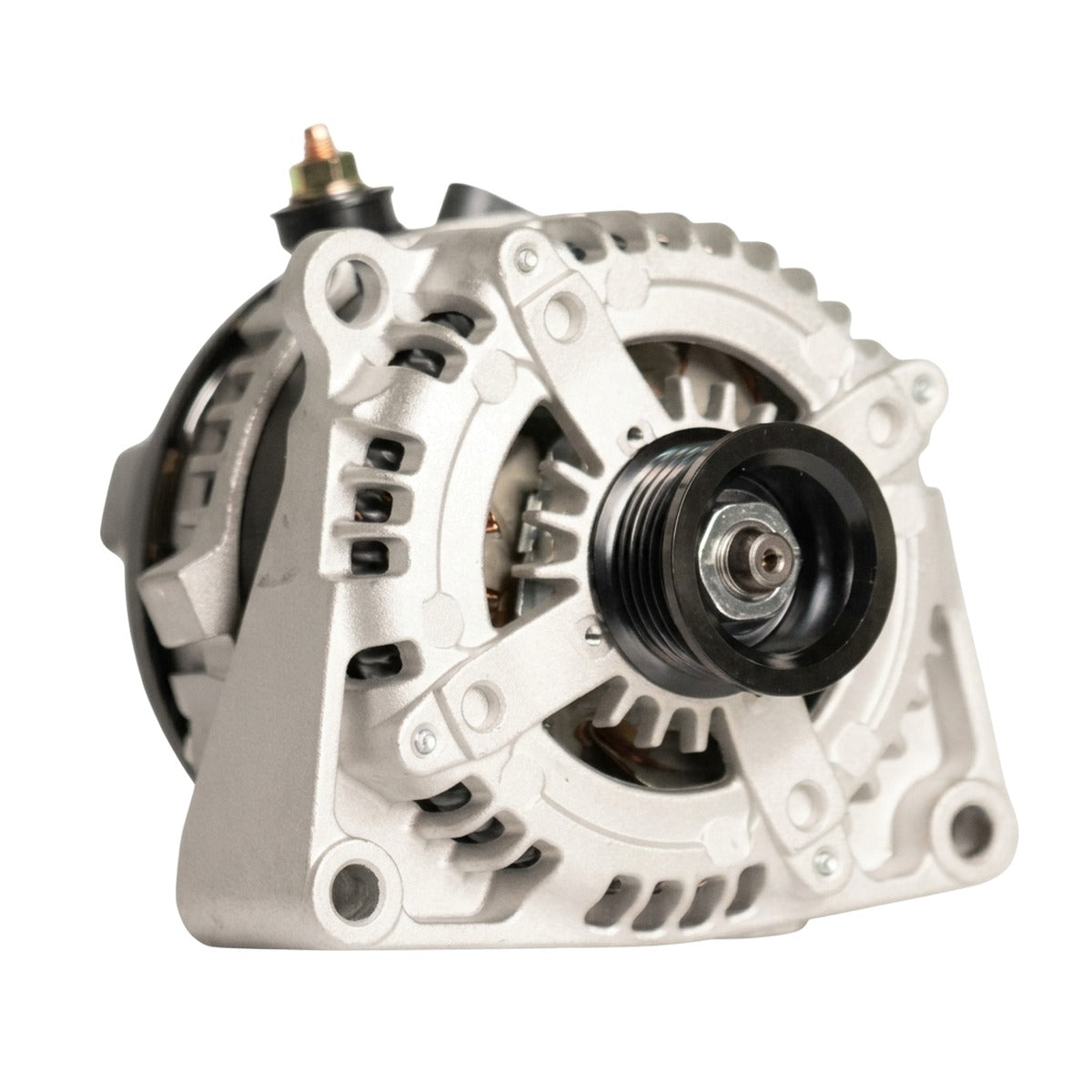

High-Amp 300A Alternator for 2005-2008 Chevrolet Express (GMT610)
What it Does: The 300-amp high-output alternator replaces the factory charging unit on the 2005-2008 Chevrolet Express to maintain continuous, stable system voltage under intense electrical demands and heavy auxiliary loads.
The Stock Chevrolet Express Electrical Limitation
Factory charging systems on the GMT610 chassis typically deliver between 105 and 145 amps, which is inadequate for work vans running commercial inverters, secondary battery banks, or heavy auxiliary equipment. Under sustained load, factory diodes suffer from heat soak, causing severe voltage drops at idle (600–800 RPM) and leading to battery discharge, erratic sensor readouts, and premature component failure in high-draw work environments.
The Engineering Solution
This Made-in-USA 300A unit resolves electrical starvation by utilizing high-efficiency hairpin stator windings and an oversized heavy-duty 12-diode rectifier bridge. The design maximizes current delivery across the operating band, providing over 160 amps at curb idle and a full 300 amps at cruising speeds. Direct-fit housing architecture mounts directly to OEM bracketry, matching original pulley alignment for seamless mechanical integration with factory serpentine belt systems.
What's Included
- 1 x 300 Amp High Output Alternator
Technical Specifications
| Fitment | 2005-2008 Chevrolet Express |
|---|---|
| Engine / Chassis | 4.3L Vortec LU3, 5.3L Vortec LM7/LMF / GMT610 |
| Stock Output | 195-295 hp / 260-335 lb-ft |
| Replaces OEM Part # | 0124325134, 15222341, 0124325214, 21998419, 15219565, 0124325133, 0124325154, 15200267, 0124325121, 0124325153, 15222342, 0124325164, 94665137, AL8789X, 11348, 11348N, 11348-300A |
Compatibility
- 2005-2008 Chevrolet Express 1500 4.3L V6
- 2005-2008 Chevrolet Express 2500 4.3L V6
- 2005-2008 Chevrolet Express 1500 5.3L V8
Frequently Asked Questions & Fitment Warnings
Does this fit the GMT610 Express?
Yes, this is a direct fit for the 2005-2008 Chevrolet Express equipped with the 4.3L LU3 or 5.3L LM7/LMF engines.
Do I need to upgrade the primary charging wiring?
Yes, running an upgraded 0/1-gauge charging lead and ground kit ("Big 3" upgrade) is strongly recommended to safely carry 300 amps without excessive resistance or wire heating.
The Chevrolet Commercial Standard
Built for the harsh duty cycles demanded by fleet, towing, and commercial utility applications, this heavy-duty charging upgrade delivers unwavering reliability and robust power distribution for high-demand work environments.
