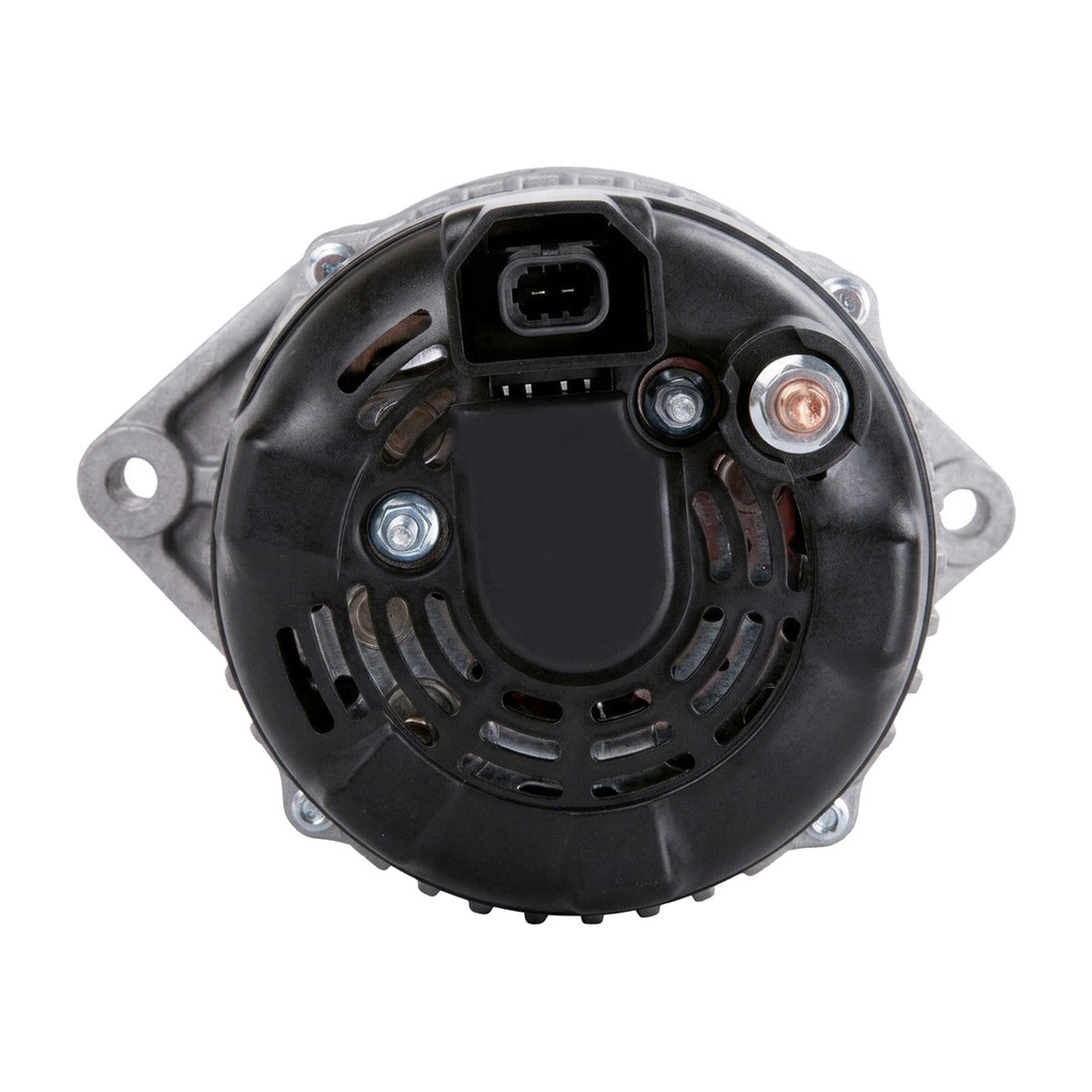

High Output Alternator for Chevrolet Equinox (2007-2009) 3.4L

High-Amperage 200A Alternator for 2007-2009 Chevrolet Equinox (Theta)

What it Does: The 200-amp High Output Alternator replaces the factory charging unit on the 2007-2009 Chevrolet Equinox to deliver continuous, elevated electrical current and maintain stable 13.5V–14.5V system voltage under heavy auxiliary loads.

The Stock Chevrolet Equinox Charging Deficiencies

The factory charging system on the Theta platform Equinox relies on an OEM unit limited to nominal output that struggles when aftermarket electronics are introduced. Under the demand of supplemental audio amplifiers, off-road lighting, or heavy blower motor use, the factory stator experiences thermal saturation. This leads to severe idle voltage drop, dimming headlights, intermittent accessory shutoff, and premature battery degradation.

The Engineering Solution

Engineered as a direct bolt-in upgrade, this 200-amp alternator utilizes dense, heavy-gauge copper stator windings paired with a balanced high-speed rotor to maximize output without increasing housing dimensions. Premium sealed bearings eliminate rotational friction and harmonic whine, while a heavy-duty internal solid-state voltage regulator ensures constant charging stability. The housing retains factory mounting geometry, OE-spec pulley sizing, and the factory wiring harness connector for plug-and-play installation.

What's Included

• 1x High Output 200-Amp Alternator (Part # 11156-200A)

Technical Specifications

Compatibility

• 2007 Chevrolet Equinox 3.4L V6 (LS, LT)
• 2008 Chevrolet Equinox 3.4L V6 (LS, LT)
• 2009 Chevrolet Equinox 3.4L V6 (LS, LT)

Frequently Asked Questions & Fitment Warnings

Does this fit the Theta Equinox?

Yes, this is a direct fit for the 2007-2009 Chevrolet Equinox equipped with the 3.4L LNJ V6 engine. Does not fit models equipped with the optional 3.6L LY7 V6 engine.

Do I need to upgrade my battery cables to run this unit?

While this alternator connects to the stock harness, upgrading the primary B+ charging wire and chassis ground cables via a 'Big 3' wiring kit is recommended to safely achieve full 200-amp throughput.

The Chevrolet Durability Standard

Engineered to handle harsh underhood thermal conditions, this high-output unit delivers the sustained charging amperage necessary to keep auxiliary systems powered and your battery fully charged in all driving conditions.
