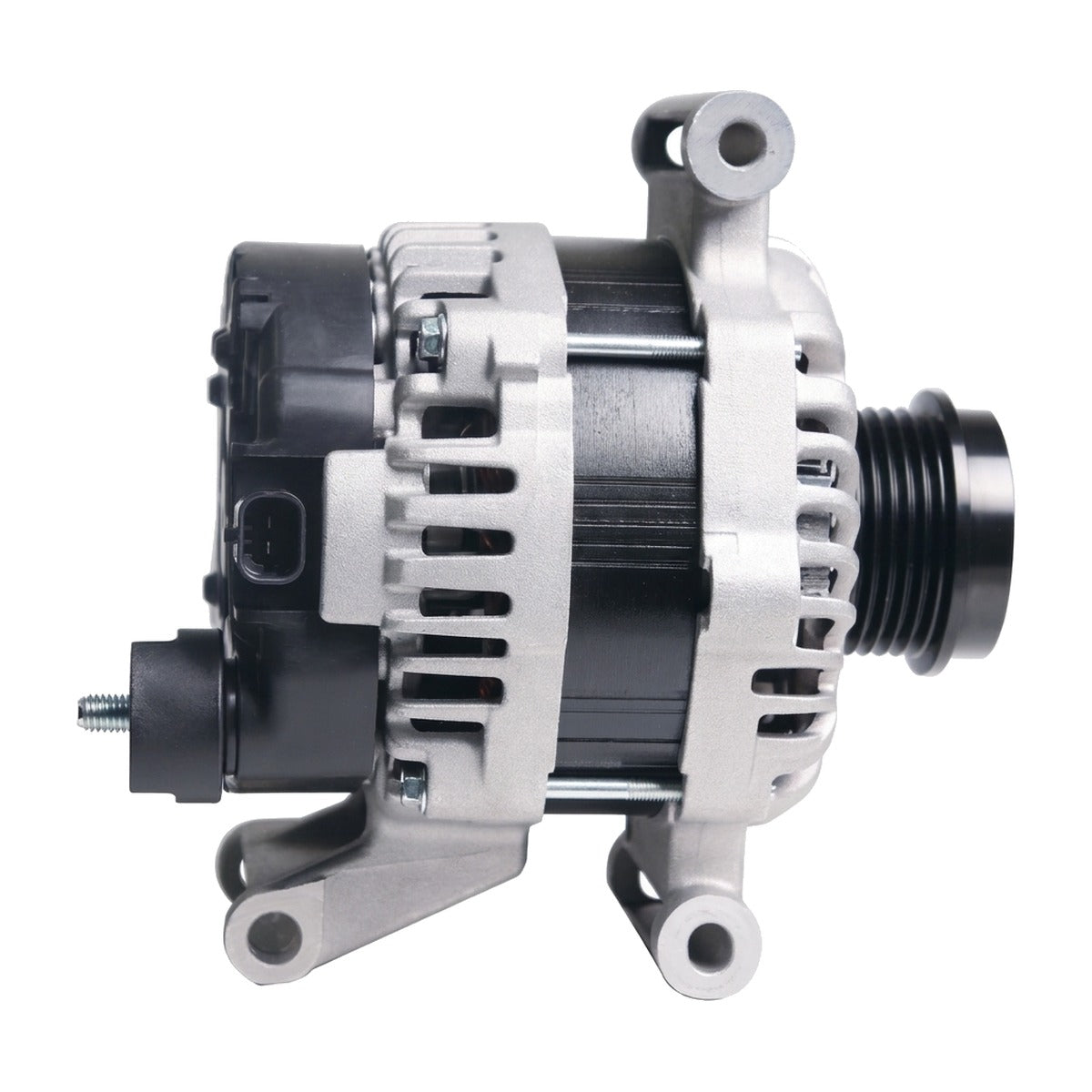

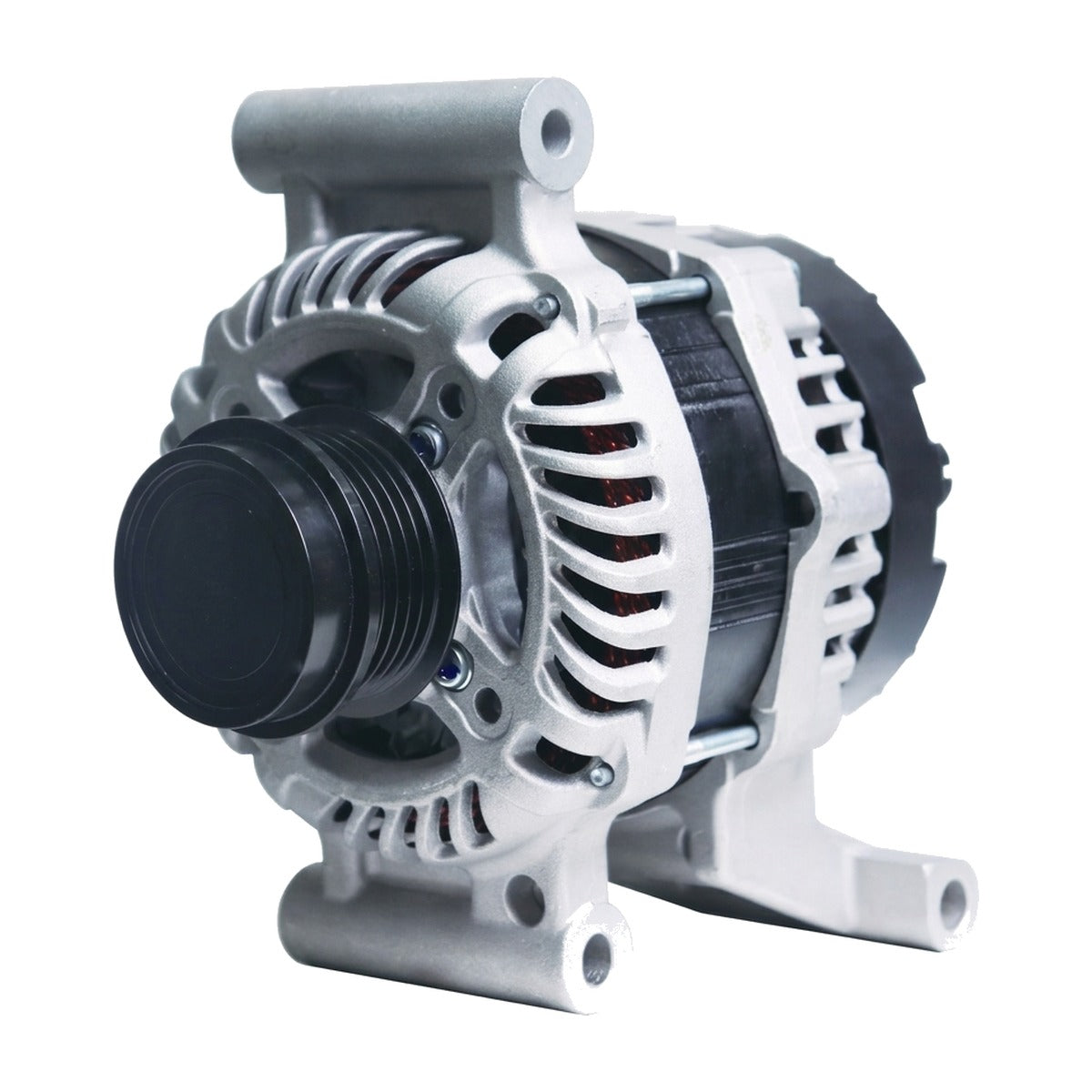

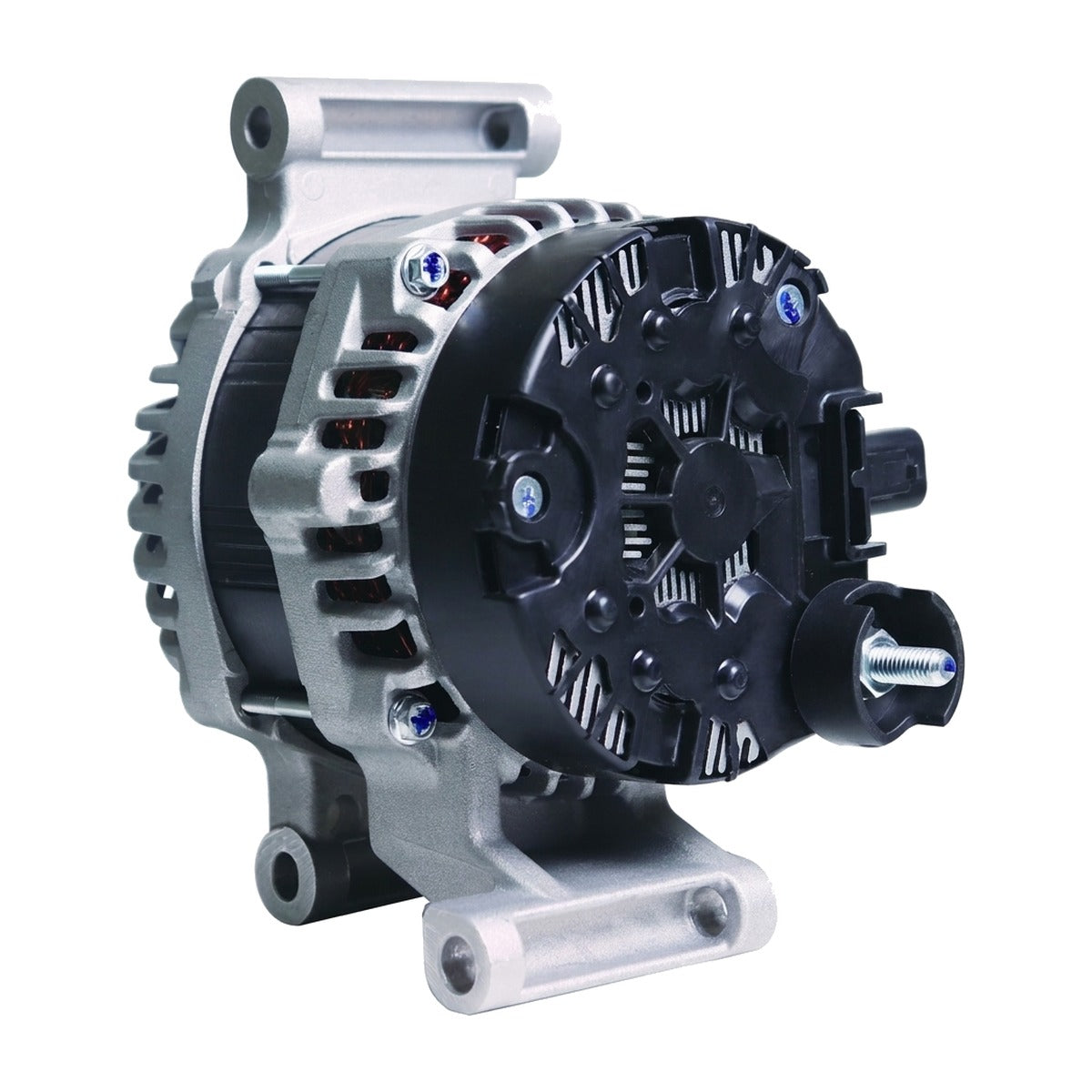

High Output Alternator for Chevrolet Cruze (2016-2019) 1.4L

High-Amperage 250A Alternator for 2016-2019 Chevrolet Cruze (D2XX)

What it Does: The High Output Alternator replaces the low-output factory charging unit on the 2016-2019 Chevrolet Cruze to deliver up to 250 amps of stable current for demanding aftermarket electronics and optimal battery replenishment.

The Stock Chevrolet Cruze Electrical Bottleneck

The factory charging system in the second-generation D2XX Cruze is strictly engineered for baseline operational draw. When accessorized with high-wattage sound systems, aftermarket lighting, or auxiliary loads, the OEM alternator suffers rapid thermal saturation. Excessive stator heat causes severe voltage drop down to 12.2V or lower at idle, inducing headlight flicker, erratic electronic control module (ECM) signals, battery sulfation, and premature diode pack burnout.

The Engineering Solution

Engineered for high current density and thermal stability, this 250-amp direct-replacement unit features heavy-gauge, high-temperature copper stator windings and a dynamic-balanced precision rotor to handle sustained RPM cycling without distortion. Built with premium sealed bearings, a high-efficiency diode bridge rectifier, and a responsive internal solid-state voltage regulator, it stabilizes system charging voltage between 13.5V and 14.5V across all engine speeds. It integrates directly into the original bracketry, utilizing the factory serpentine belt profile and OEM connector for seamless plug-and-play installation.

What's Included

• 1 x 250-Amp High Output Alternator (Part # 44002)

Technical Specifications

Compatibility

• 2016 Chevrolet Cruze 1.4L Turbocharged I4 (LE2)
• 2017 Chevrolet Cruze 1.4L Turbocharged I4 (LE2)
• 2018 Chevrolet Cruze 1.4L Turbocharged I4 (LE2)
• 2019 Chevrolet Cruze 1.4L Turbocharged I4 (LE2)

Frequently Asked Questions & Fitment Warnings

Does this fit the D2XX Cruze?

Yes, this is a direct bolt-on fit for the 2016-2019 Chevrolet Cruze equipped with the 1.4L LE2 turbocharged inline-4 engine.

Do I need to upgrade my wiring when installing this unit?

While this alternator utilizes the factory plug, performing a 4-gauge or 1/0-gauge "Big 3" charge lead upgrade is recommended to transfer 250 amps safely without voltage resistance.

The Chevrolet Reliability Standard

Modern GM platforms rely heavily on clean electrical current to power sensitive CAN-bus networks and direct-injection ECUs. Delivering robust current reserve and superior thermal mitigation, this high-output alternator eliminates voltage sag and keeps mission-critical engine management systems operating flawlessly.
