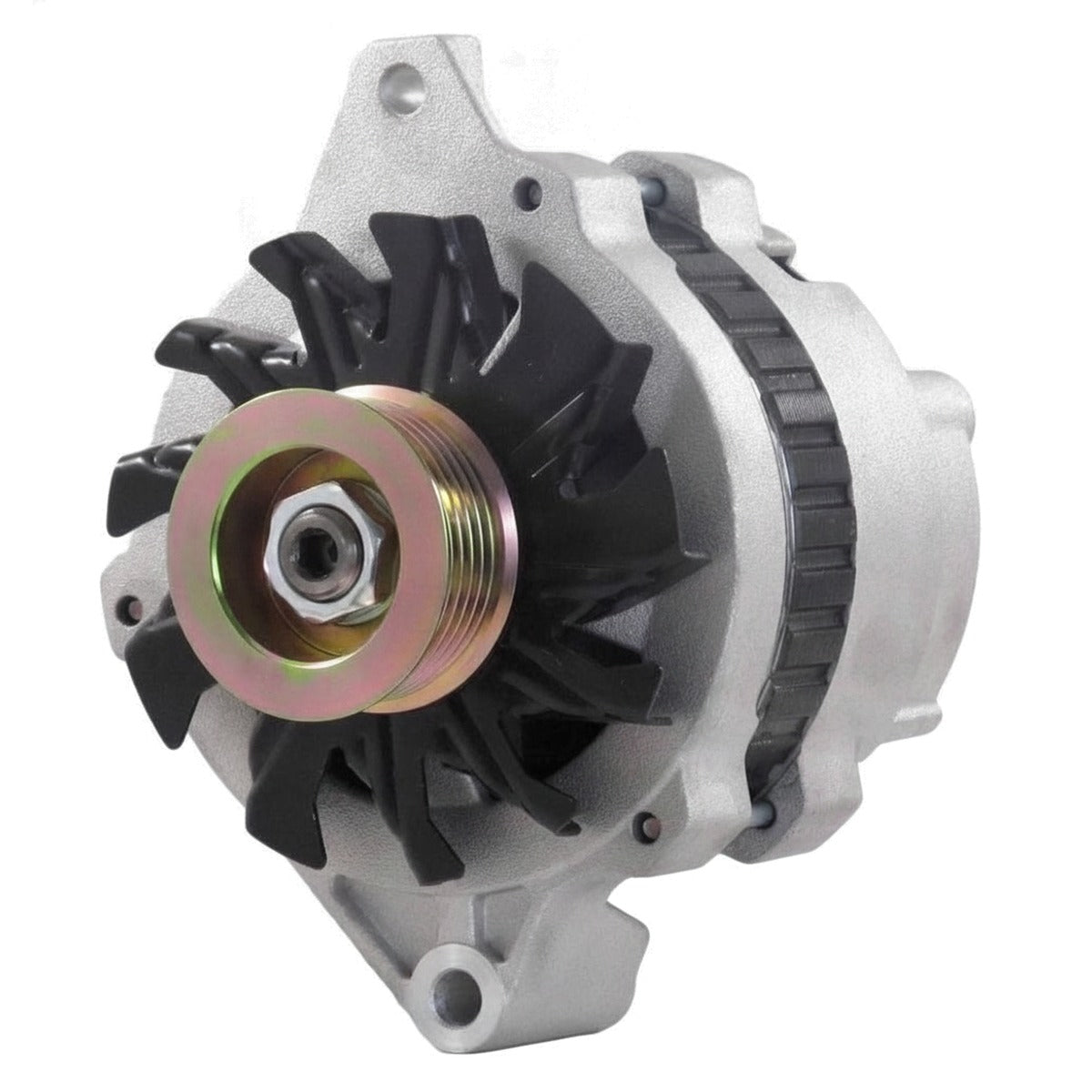

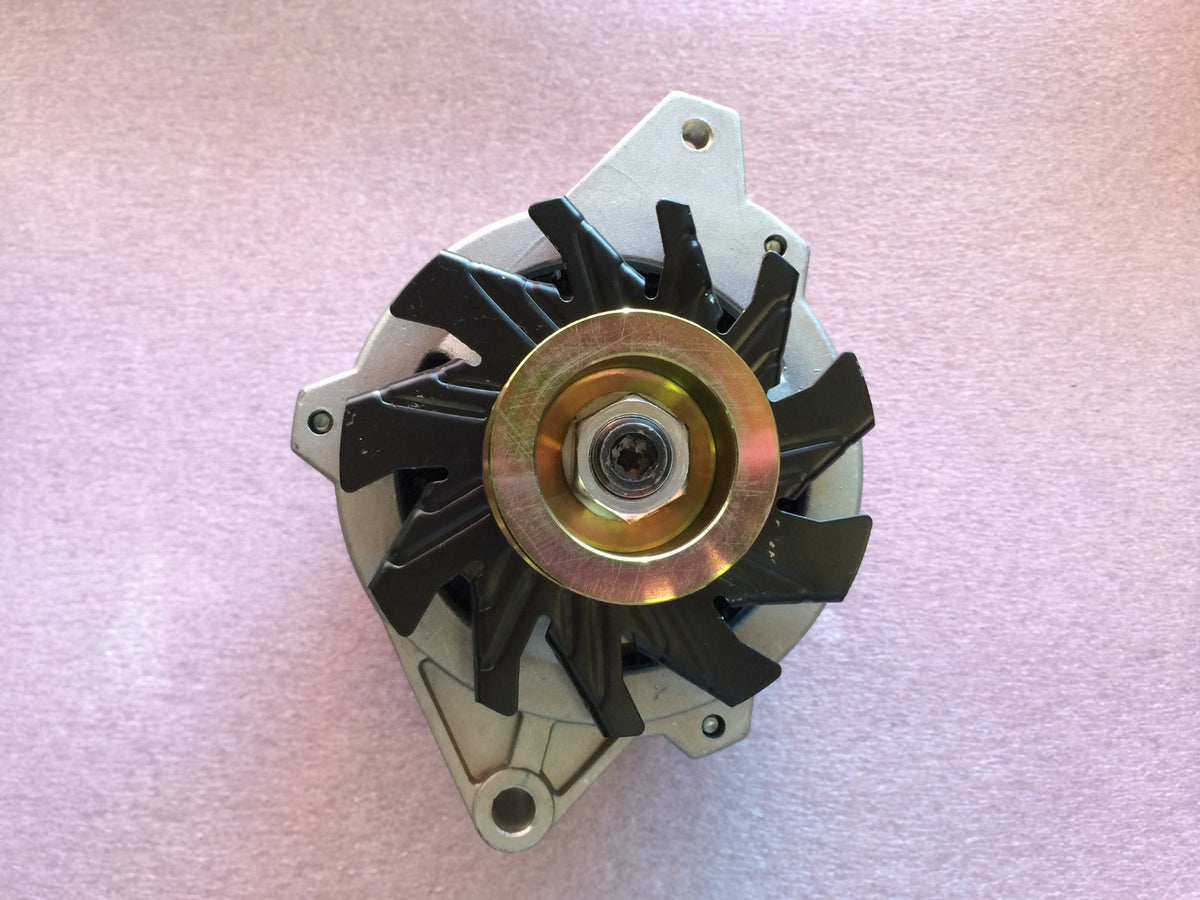

High Output Alternator for Chevrolet Corvette (1987-1991) 5.7L

High-Amp 200A Output Alternator for 1987-1991 Chevrolet Corvette (C4)

What it Does: The 200 Amp High Output Alternator supplies stable electrical current to the 1987-1991 Corvette to eliminate voltage drop caused by modern electronics, electric cooling fans, and high-draw accessories.

The Stock Chevrolet Corvette Charging Limitations

Factory C4 Corvettes equipped with the L98 were originally built with Delco CS130-series units rated for roughly 100 to 105 amps. In the tight, heat-intensive engine bay of the 1987-1991 Corvette, these OEM units suffer severe thermal breakdown. Elevated ambient temperatures degrade the internal diode trio, fry the stator windings, and cause catastrophic bearing seizure. When running modern upgrades like upgraded auxiliary electric fans, aftermarket digital dashes, or high-draw sound systems, the factory alternator fails to deliver sufficient charging voltage at idle, plunging system pressure below 12.4V and causing ignition misfires and erratic ECM sensor readings.

The Engineering Solution

Engineered and assembled in the USA, this heavy-duty 200-amp unit addresses thermal failure with heavy-gauge pure copper windings, a reinforced low-loss stator, and a high-efficiency internal avalanche diode rectifier capable of handling high continuous thermal loads. The housing provides superior convective cooling to protect sensitive internal regulators against premature heat soak. It provides immediate electrical headroom, producing reliable charging voltage both at idle and under high RPM, directly matching the factory serpentine bracket architecture for seamless mounting.

What's Included

• 1 x 200 Amp High Output Alternator

Technical Specifications

Compatibility

• 1987 Chevrolet Corvette Base 5.7L V8
• 1988 Chevrolet Corvette Base / 35th Anniversary Edition 5.7L V8
• 1989 Chevrolet Corvette Base 5.7L V8
• 1990 Chevrolet Corvette Base 5.7L V8
• 1991 Chevrolet Corvette Base 5.7L V8

Frequently Asked Questions & Fitment Warnings

Does this fit the C4 Corvette?

Yes, this is a direct bolt-on fit for the 1987-1991 Chevrolet Corvette equipped with the L98 5.7L small block engine; it does not fit overhead-cam LT5 (ZR-1) models.

Should I upgrade the main charging wire with a 200A alternator?

Yes, running an upgraded 4-gauge or 2-gauge fused power cable from the alternator positive post directly to the battery is strongly recommended to safely carry the increased amperage.

The Chevrolet Muscle Caliber

Sustain peak ignition performance, reliable fuel delivery, and uncompromised spark energy throughout the entire rev band on your classic American small block.
