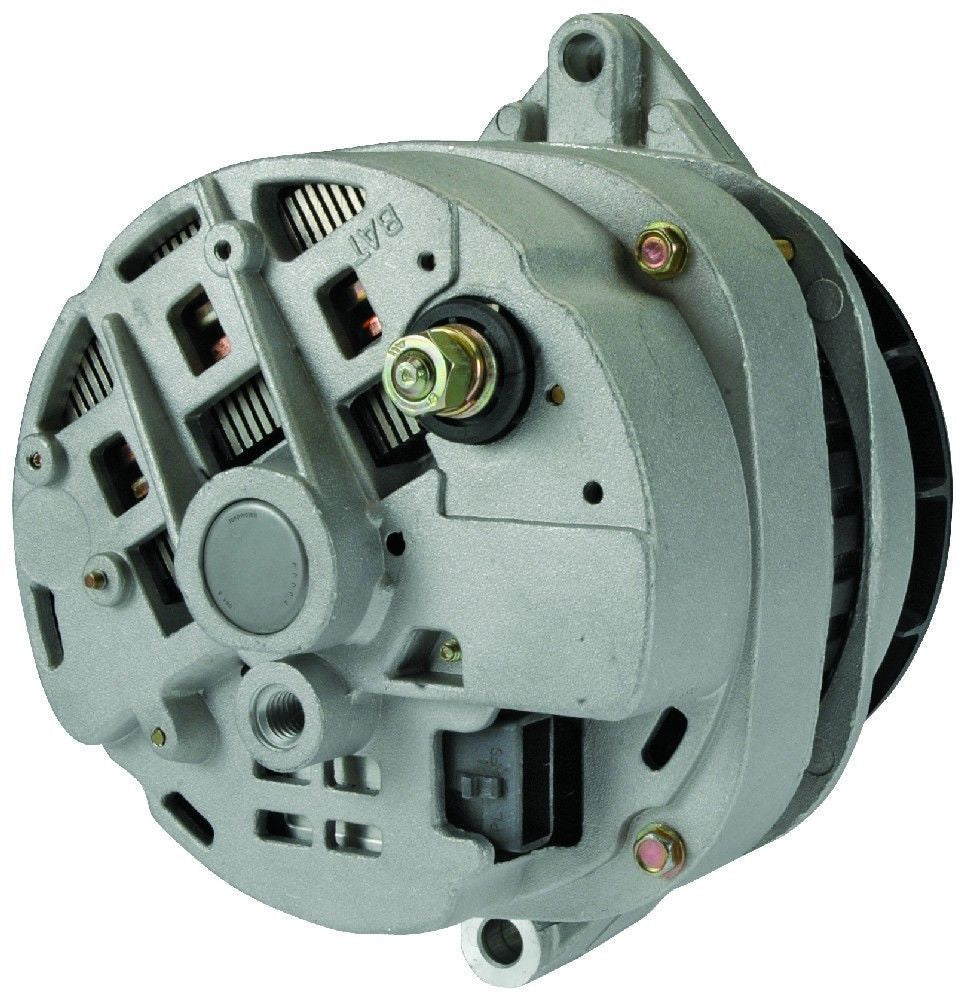

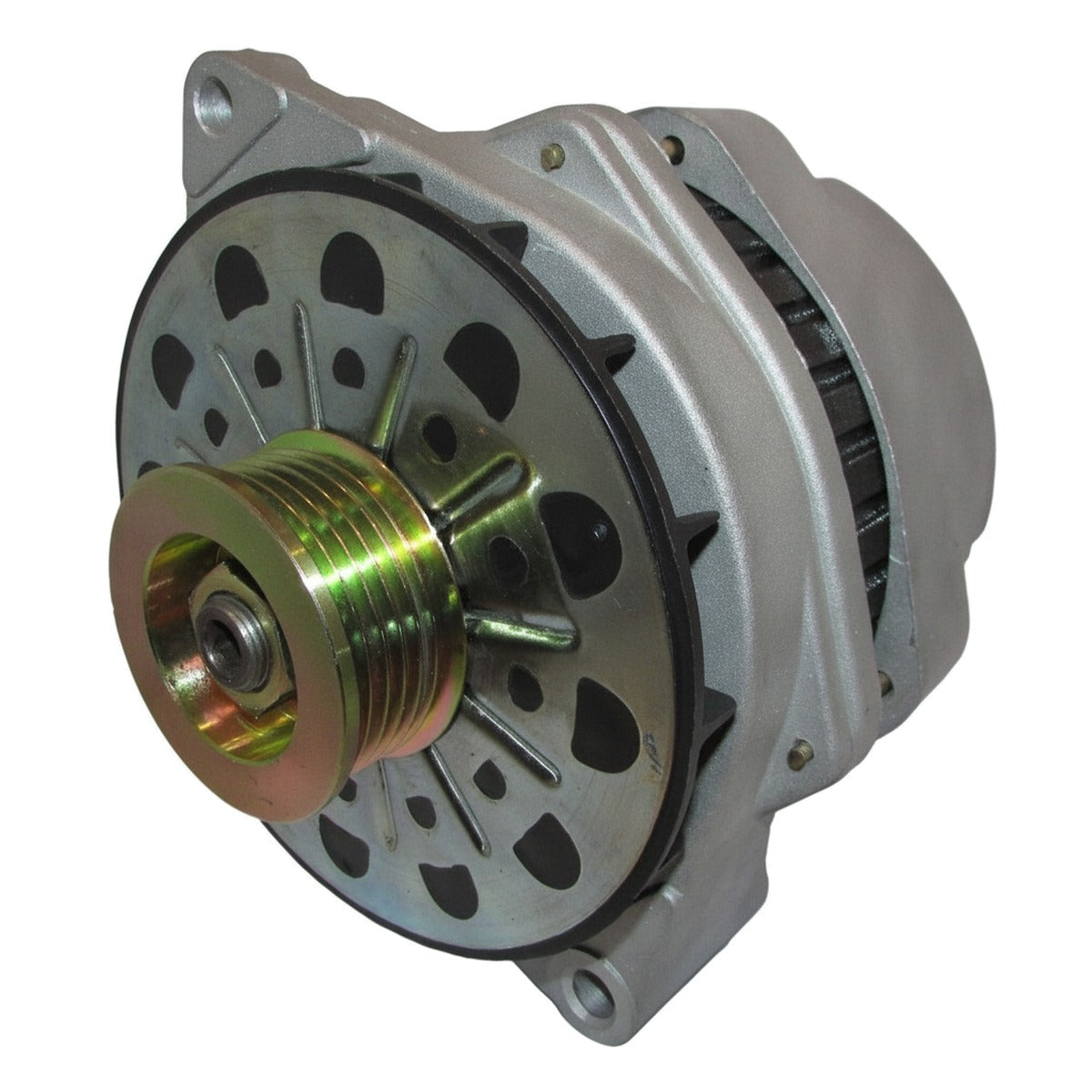

High Output Alternator for Chevrolet Caprice (1994-1996) 4.3L 5.7L

High-Output 300A Alternator for 1994-1996 Chevrolet Caprice (B-Platform)

What it Does: The 300-amp high-output alternator upgrades the factory charging system on the 1994-1996 Caprice to deliver stable, high-amperage electrical current under heavy auxiliary accessory loads and high-draw thermal conditions.

The Stock Chevrolet Caprice Charging Bottleneck

Factory B-body charging systems were originally spec'd with Delco CS130D or CS144 units delivering 105 to 140 amps. The stock diode bridges and small-gauge copper windings suffer thermal saturation under elevated underhood temperatures typical of the iron-block LT1 and L99 V8 engines. As internal operating temperatures spike, voltage sag occurs at idle, pulling system voltage below 12.6V. This results in dimming cabin electronics, fluctuating fuel pump voltage, ignition coil voltage instability, and premature stator burnout when aftermarket audio, upgraded cooling fans, or auxiliary pursuit electronics are added.

The Engineering Solution

This 300-amp unit is engineered with high-temperature, pure copper hairpin stator windings and precision-machined heavy-duty press-fit rectifier diodes to maximize electrical efficiency and minimize resistance heat. Built with dual internal cooling fans and a high-efficiency rotor assembly, it maintains peak current output without suffering thermal degradation. The heavy-duty internal voltage regulator delivers consistent charging voltage (14.2V–14.8V) from curb idle through peak redline. Direct bolt-in fitment preserves OEM belt alignment, dropping seamlessly into factory GM accessory brackets using OEM interchange numbers such as 10463338 and 10480201.

What's Included

• 1 Alternator

Technical Specifications

Compatibility

• 1994-1996 Chevrolet Caprice 4.3L
• 1994-1996 Chevrolet Caprice 5.7L

Frequently Asked Questions & Fitment Warnings

Does this fit the B-Platform Caprice?

Yes, this is a direct fit for the 1994-1996 Chevrolet Caprice equipped with the L99 (4.3L) and LT1 (5.7L) Small-Block V8 engines.

Do I need to upgrade my main charging cable?

A Big 3 wiring upgrade (minimum 4-gauge or 1/0 power and ground cabling) is strongly recommended to safely carry 300-amp maximum current to the battery without voltage drop.

The Chevrolet Muscle Standard

Heavy classic American V8 iron demands consistent electrical delivery to feed ignition coils and high-demand cooling systems under intense load.
