High Output Alternator for Chevrolet Caprice (1992-1993) 4.3L 5.0L 5.7L

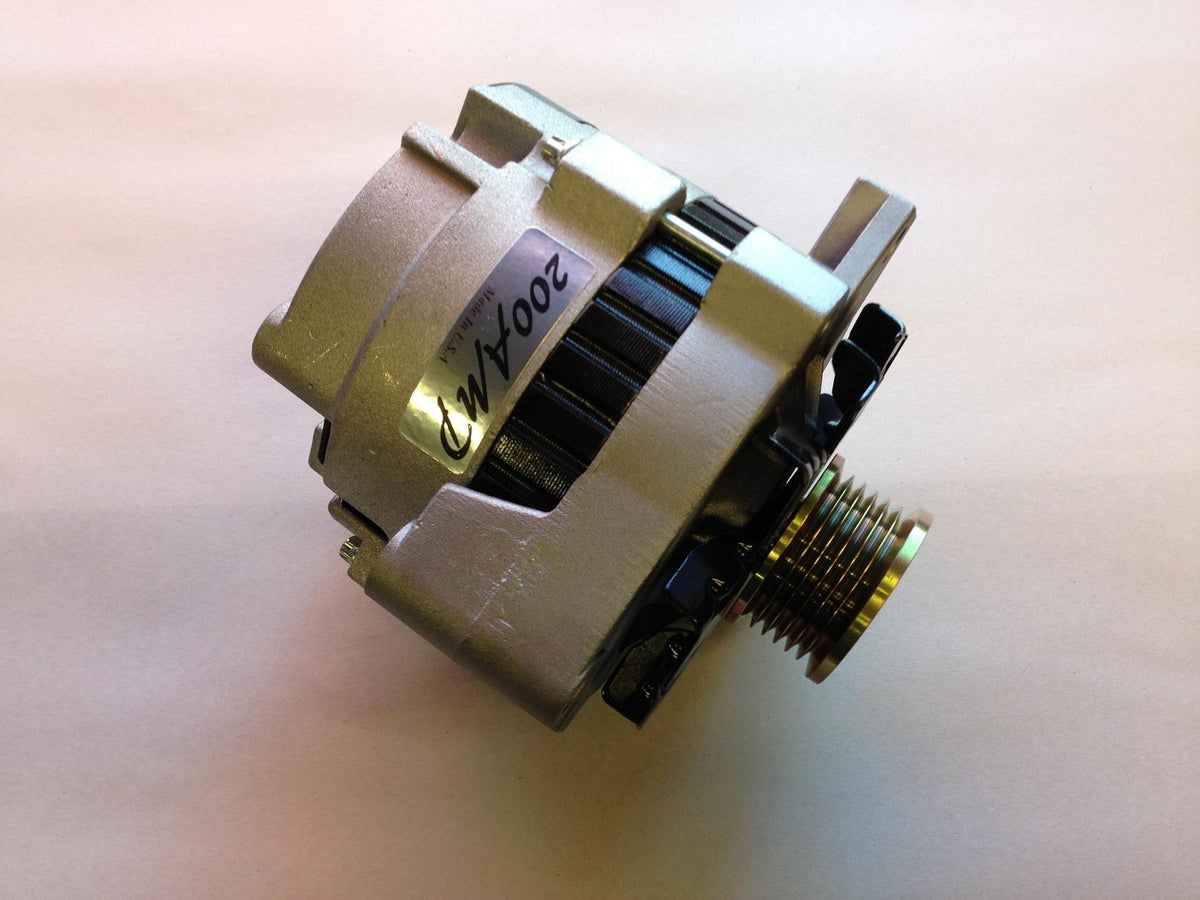

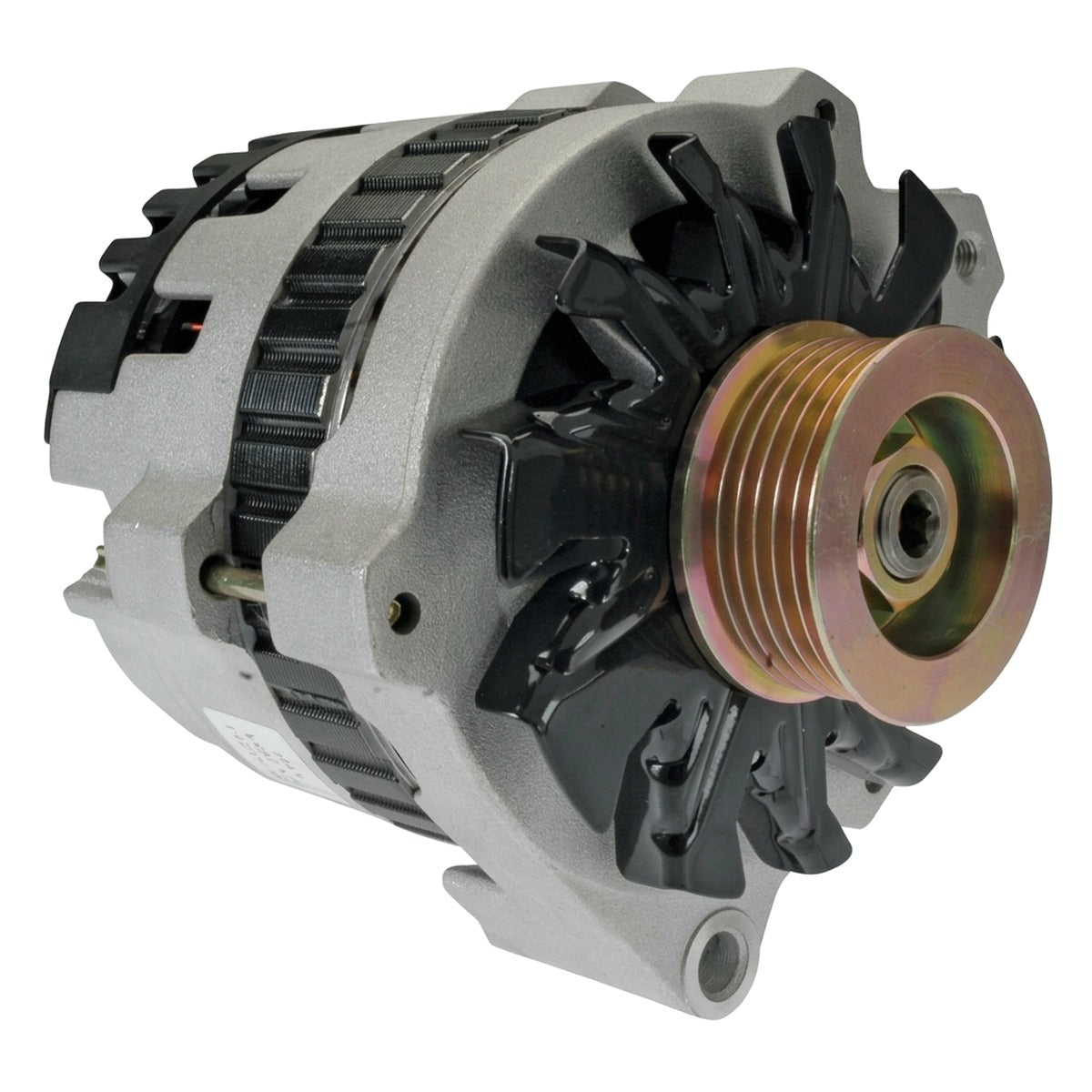

High-Output 200-Amp Alternator for 1992-1993 Chevrolet Caprice (B-Body)

What it Does: The 200-Amp High Output Alternator replaces the low-output factory charging unit on the 1992-1993 Caprice to supply continuous, high-amperage electrical current across all RPM bands and eliminate voltage drop under heavy accessory loads.

The Stock Chevrolet Caprice Charging Deficit

Factory 1992-1993 B-Body platforms utilized factory Delco CS130-series alternators producing merely 85 to 105 amps. These original units suffer severe thermal breakdown due to undersized internal cooling fans and inadequate heat-sink surface area on the factory rectifier. When subjected to extended idling, upgraded stereo systems, auxiliary lighting, or modern thermo-fans, the stock unit experiences diode burn-out, rotor winding insulation breakdown, and chronic low-voltage sag below 12.0 volts, starving the ignition module and TBI fuel management systems of proper operating voltage.

The Engineering Solution

Engineered as a direct bolt-in upgrade, this 200-amp unit features heavy-gauge, high-temperature copper stator windings coupled with a high-capacity avalanche diode rectifier bridge to handle heavy thermal cycling. The housing integrates an optimized internal fan assembly and an upgraded solid-state voltage regulator, delivering strong charging current right off idle (130+ amps at low RPM) and full 200-amp capacity at operating revs. Designed to seamlessly interface with factory bracketry, it directly replaces OE units carrying part numbers 10463002, 1101111, and 321-473 without requiring custom shimming.

What's Included

• 1x 200-Amp High Output Alternator

Technical Specifications

Compatibility

• 1992-1993 Chevrolet Caprice 4.3L V6 (LB4)
• 1992-1993 Chevrolet Caprice 5.0L V8 (L03)
• 1992-1993 Chevrolet Caprice 5.7L V8 (L05)

Frequently Asked Questions & Fitment Warnings

Does this fit the B-Body Caprice?

Yes, this is a direct bolt-in fit for the 1992-1993 Chevrolet Caprice equipped with the LB4, L03, or L05 small-block engine platforms.

Do I need to upgrade my main charging cable?

Yes, installing a high-gauge fused charging lead (4-gauge minimum "Big 3" upgrade) directly from the alternator output stud to the battery is strongly recommended to handle the 200-amp capacity safely.

The Chevrolet B-Body Standard

Built for the sustained demands of full-size GM fleet and cruiser chassis, this alternator ensures consistent 14.4-volt power distribution, protecting sensitive engine sensors and secondary electrical systems under the heaviest operational loads.
