High Output Alternator for Chevrolet Camaro (1994-1997) 5.7L

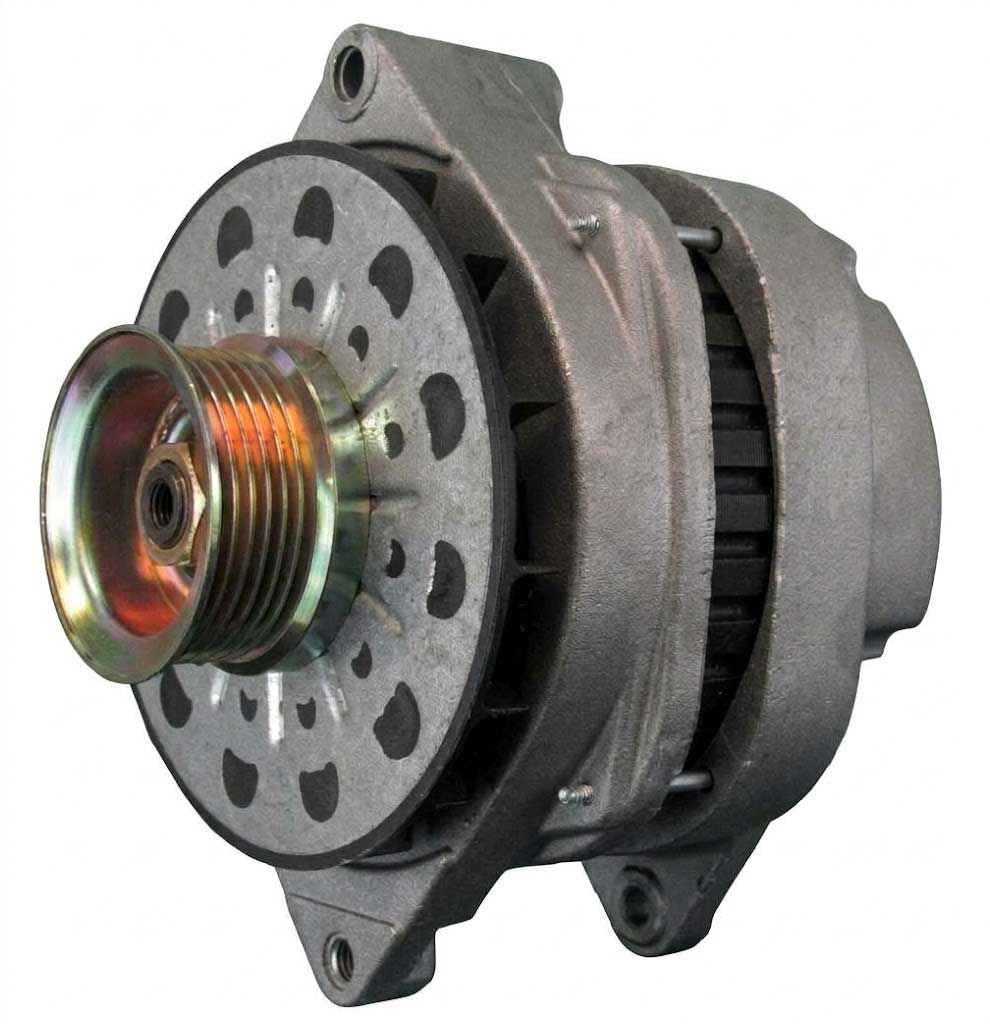

High-Output 200-Amp Alternator for 1994-1997 Chevrolet Camaro (F-Body)

What it Does: The 200-Amp High Output Alternator replaces the low-output factory charging unit on the 1994-1997 Chevrolet Camaro to eliminate voltage sag, stabilize ignition performance, and deliver reliable current to high-draw electrical accessories.

The Stock Chevrolet Camaro Charging Weakness

Factory Delco CS130D alternators on the fourth-generation F-Body were engineered for minimal base electrical loads, delivering only 105 to 124 amps from the factory. Trapped beneath the recessed cowl of the LT1 engine bay, factory units suffer severe heat soak. This thermal stress degrades internal voltage regulators and rectifiers, resulting in severe voltage drops at idle when cooling fans cycle, auxiliary audio systems draw power, or aftermarket ignition boxes demand constant 14-volt delivery.

The Engineering Solution

Constructed in the USA, this high-output 200-amp unit delivers steady voltage regulation across the entire rev range while substantially boosting idle amperage output. Built with high-purity copper windings, heavy-duty press-fit diodes, premium dual-sealed bearings, and high-temp insulating resins, it resists thermal breakdown under grueling engine bay conditions. The precision-machined casing maintains OEM mounting geometry, allowing it to drop into the factory bracket assembly with direct compatibility for original pulley alignment and wiring interfaces.

What's Included

• 1x 200 Amp High Output Alternator

Technical Specifications

Compatibility

• 1994-1997 Chevrolet Camaro Z28 (5.7L LT1 V8)
• 1996-1997 Chevrolet Camaro SS (5.7L LT1 V8)
• 1997 Chevrolet Camaro Z28 30th Anniversary Edition (5.7L LT1 V8)

Frequently Asked Questions & Fitment Warnings

Does this fit the F-Body Camaro?

Yes, this is a direct fit for the 1994-1997 Chevrolet Camaro equipped with the LT1 5.7L V8 engine. It does not fit 3.4L or 3.8L V6 models.

Do I need to upgrade my main power wire?

To safely handle the full 200-amp capacity without resistive voltage loss or thermal overheating, upgrading the main alternator-to-battery charge lead with a fused 4-gauge or larger cable is strongly recommended.

The Chevrolet Muscle Caliber

The small block LT1 platform requires rock-solid voltage stability to maintain consistent spark energy and fuel delivery under load; this high-output unit supplies relentless reserve amperage designed to keep your muscle car running at peak performance.
