High Output Alternator for Cadillac Escalade (2007-2014) 6.2L

Heavy-Duty 300 Amp High Output Alternator for 2007-2014 Cadillac Escalade (GMT900)

What it Does: The 300 Amp High Output Alternator replaces the low-output factory charging unit on the 2007-2014 Cadillac Escalade to supply robust continuous electrical current and eliminate idle voltage drops under heavy auxiliary accessory loads.

The Stock Cadillac Escalade Voltage Drop and Heat Saturation Issue

The factory 145-amp and 160-amp units on the GMT900 platform struggle to support demanding electrical systems. Between factory amenities like Autoride/MagneRide suspension compressors, multi-zone HVAC, and high-draw aftermarket audio or auxiliary lighting, the stock alternator operates at near-peak thermal duty cycles. Under elevated engine bay temperatures, internal diodes degrade, rotor winding resistance increases, and system voltage often plummets below 12.8V at idle, starving onboard modules and accelerating battery sulfation.

The Engineering Solution

Engineered for high-demand duty cycles, this 300-amp high-output replacement utilizes high-temperature copper windings and an oversized heavy-duty avalanche diode rectifier bridge to reject internal heat soak. Precision-balanced rotor assemblies and high-speed bearings prevent harmonic deflection at high RPM, delivering over 180 amps at curb idle and a continuous 300 amps at highway cruise speeds. Designed as a direct bolt-in unit, it restores a stable 14.4-volt charge to safeguard sensitive electronics and handle high-draw accessories without throwing DTCs.

What's Included

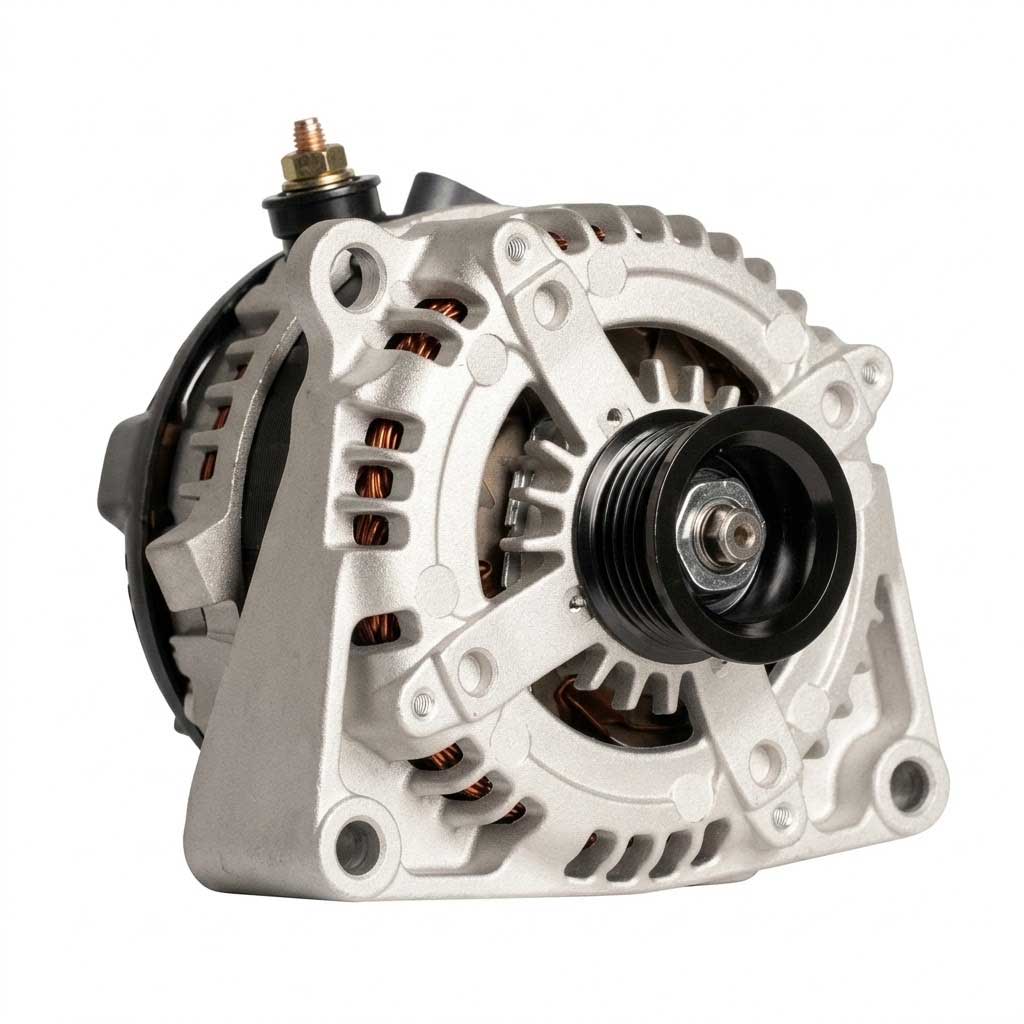

• 1 x 300 Amp High Output Alternator

Technical Specifications

Compatibility

• 2007-2014 Cadillac Escalade 6.2L V8
• 2007-2014 Cadillac Escalade ESV 6.2L V8
• 2007-2013 Cadillac Escalade EXT 6.2L V8

Frequently Asked Questions & Fitment Warnings

Does this fit the GMT900 Escalade?

Yes, this is a direct fit for the 2007-2014 Cadillac Escalade equipped with the L92, L9H, or L94 6.2L V8 engine.

Do I need to upgrade my charging wiring for this 300A unit?

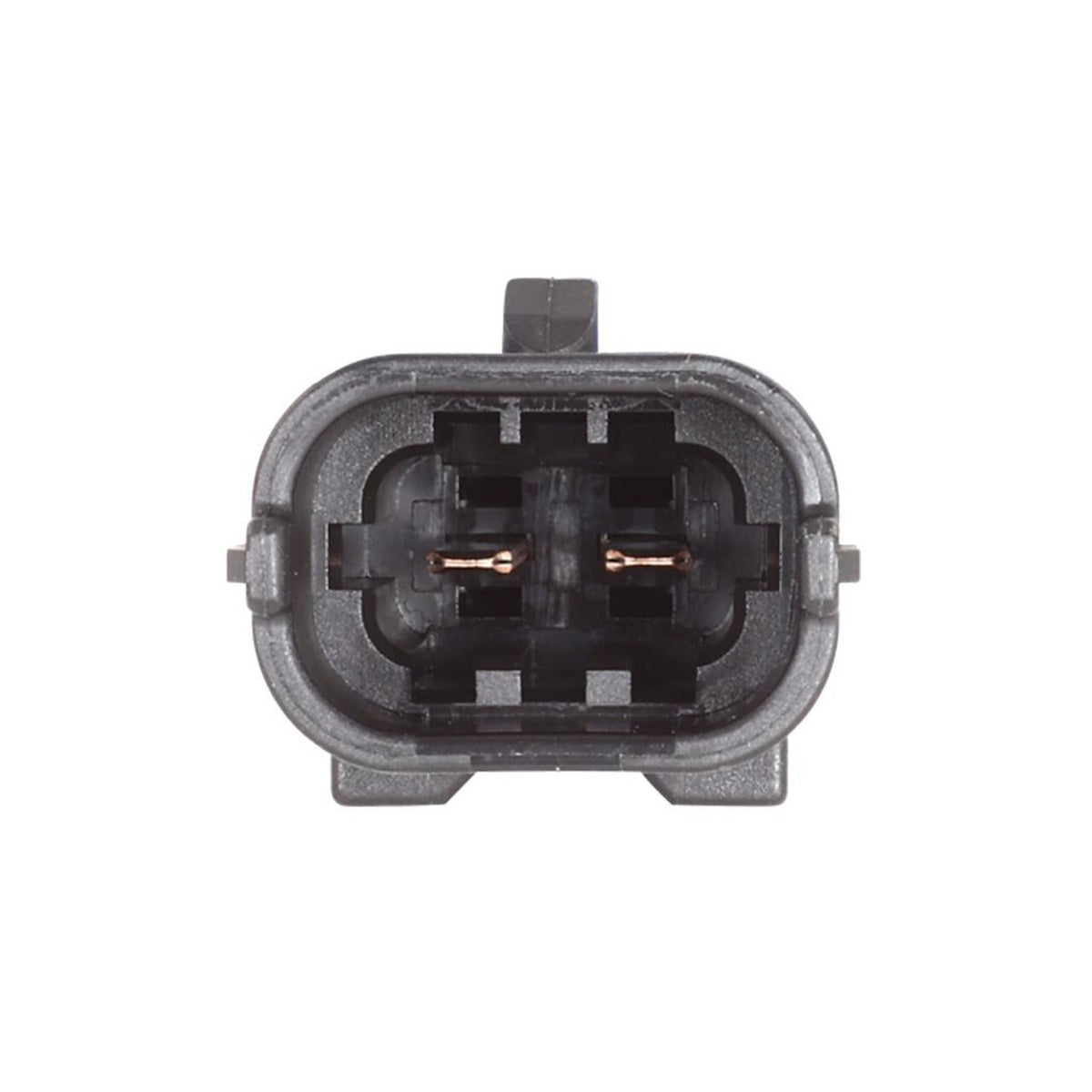

While this alternator utilizes the factory plug and mounting locations, a "Big 3" 0-gauge or 4-gauge main charge and ground wire upgrade is highly recommended to safely flow full 300-amp loads without line resistance.

The Cadillac Heavy-Duty Standard

Built to handle heavy towing, loaded air suspensions, and auxiliary vehicle electronics, this unit provides the continuous current integrity required for heavy-duty SUV performance.
