High Output Alternator for Cadillac Eldorado Fleetwood Seville (1986-1987) 4.1L

High-Amp Charging 400A High Output Alternator for 1986-1987 Cadillac Eldorado, Fleetwood, Seville (E/K/C-Body)

What it Does: The 400-amp high output alternator replaces the low-amperage factory charging unit on 1986-1987 Cadillac models to eliminate voltage drop and deliver stable 15.1-volt electrical current across all operating RPMs.

The Stock Cadillac Eldorado, Fleetwood, Seville Charging System Limitations

Factory charging systems on the transverse HT4100 engine utilize early Delco units rated for a meager 85 to 100 amps peak, which collapse down to under 40 amps at curb idle. When modern electrical demands—such as electric cooling fans, upgraded audio amplifiers, and auxiliary lighting—are added, the OEM diode bridge suffers thermal saturation and voltage drops below 12.5 volts. This chronic undercharging causes dimming instrument clusters, premature battery sulfation, slow starter cranking, and ECM sensor signal drift on sensitive GM digital dashboards.

The Engineering Solution

Engineered around a high-density hairpin stator architecture, this direct-mount 400-amp unit delivers approximately 200 amps at idle and reaches full rated output by 1,200 engine RPM. Heavy-gauge pure copper windings decrease internal resistance, while heavy-duty internal heat sinks and premium sealed bearings withstand high underhood thermal soak. A built-in, one-wire internal regulator holds system voltage rock-solid at 15.1 volts, bypassing complex factory harness resistance. It directly mounts into OEM brackets for casting numbers 10463069, 10463330, and 10497111.

What's Included

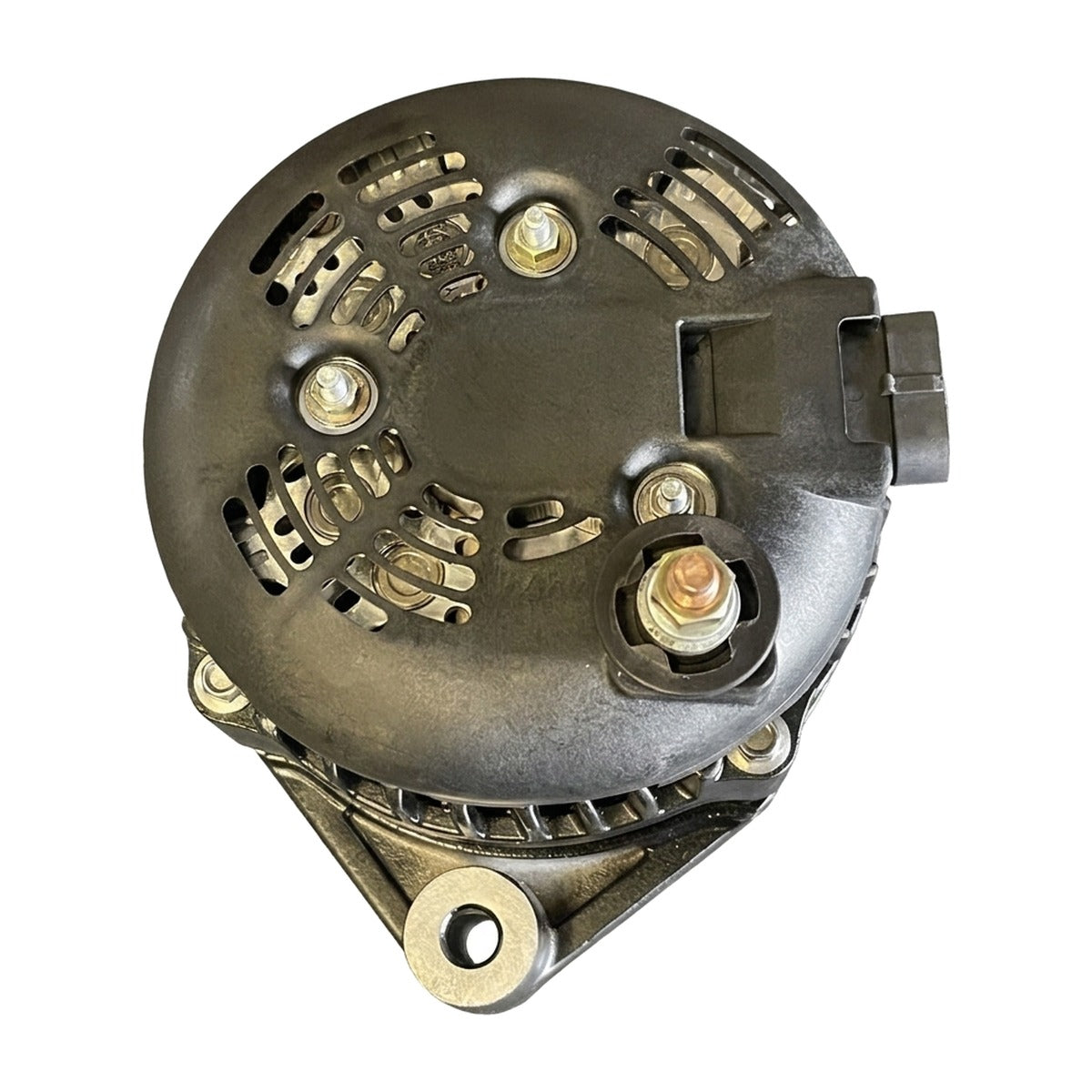

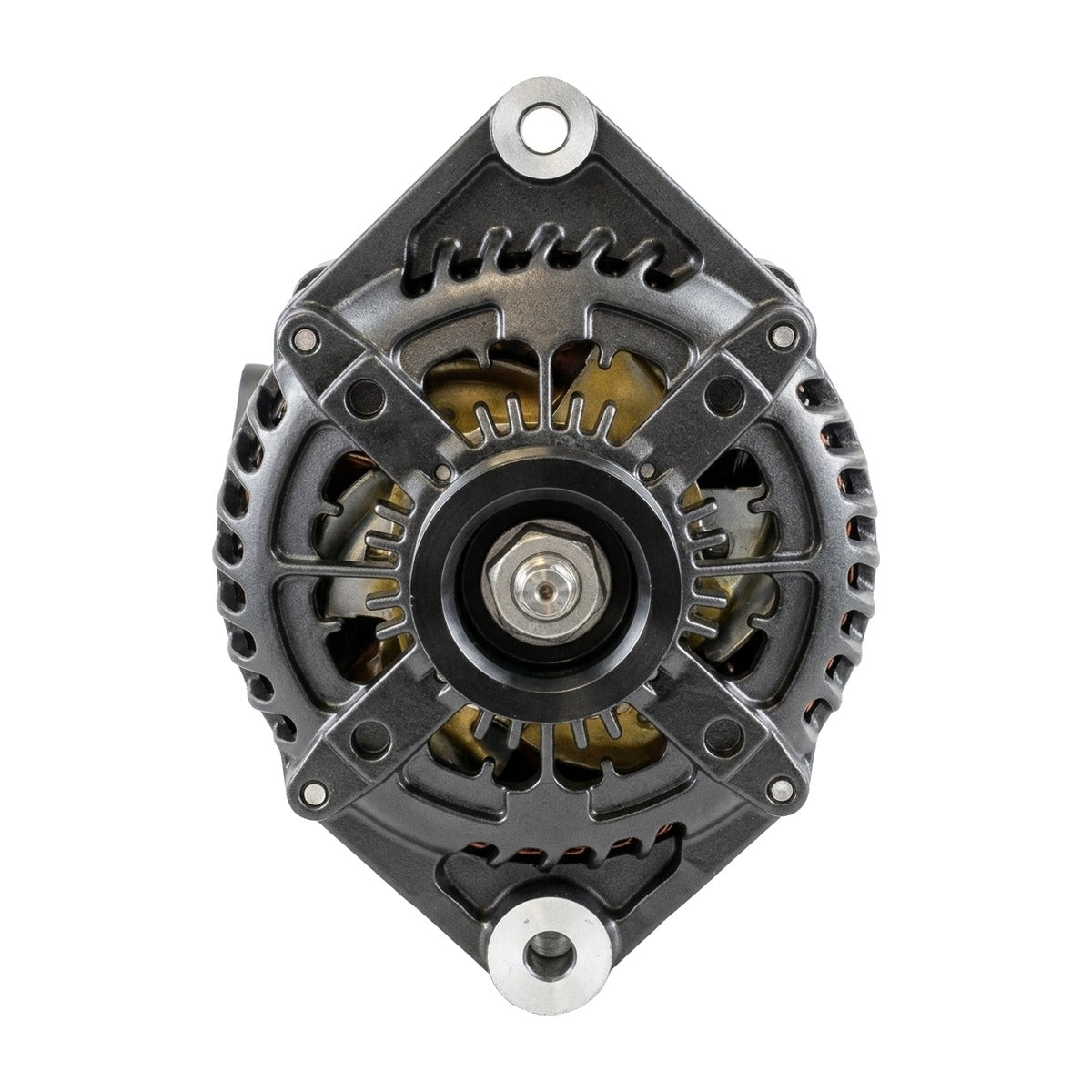

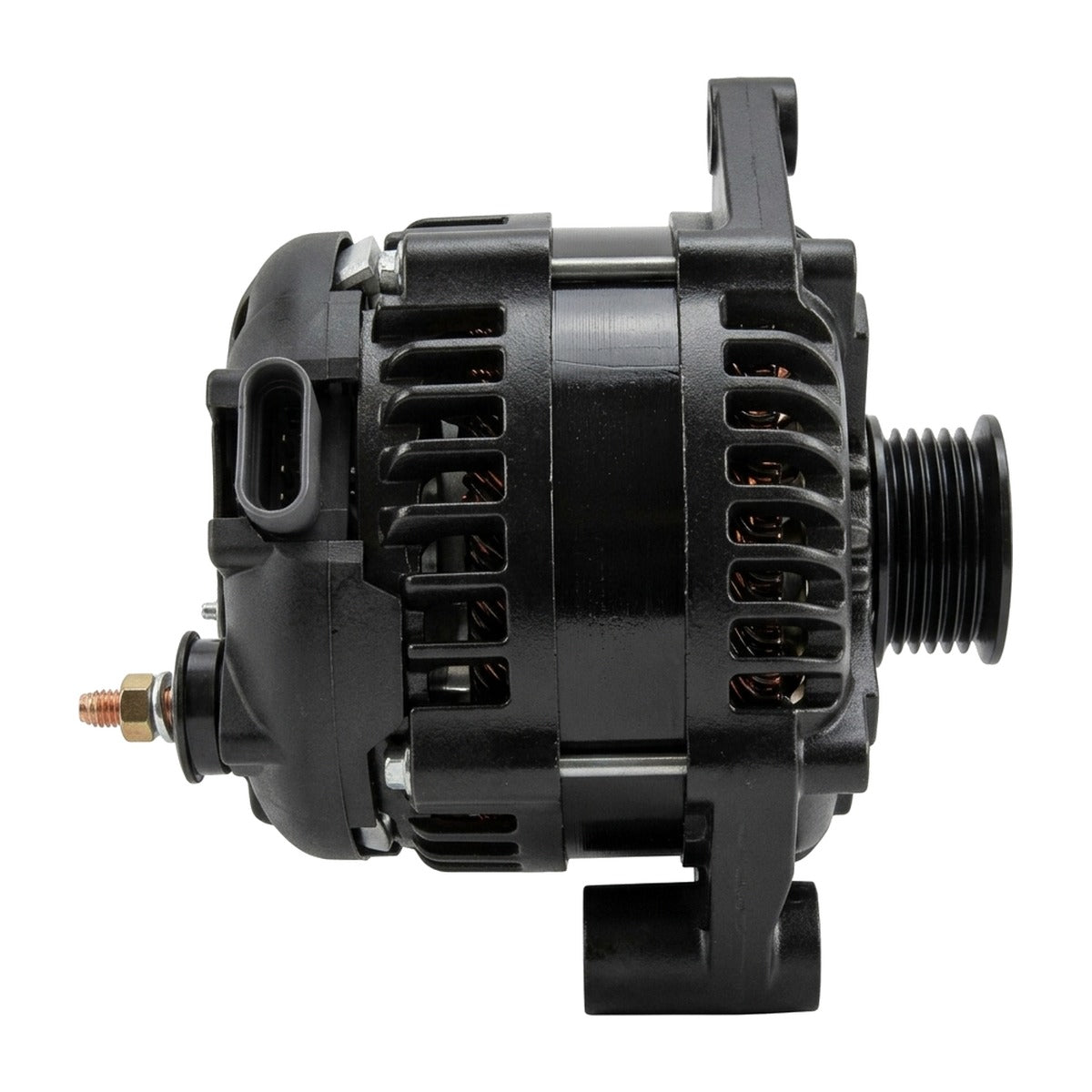

• 1 High Output 400A Alternator with Internal 15.1V One-Wire Regulator (Part # 7806-2)

Technical Specifications

Compatibility

• 1986-1987 Cadillac Eldorado 4.1L V8 (E-Body)
• 1986-1987 Cadillac Fleetwood 4.1L V8 (C-Body FWD)
• 1986-1987 Cadillac Seville 4.1L V8 (K-Body)

Frequently Asked Questions & Fitment Warnings

Does this fit the E/K/C-Body Eldorado, Fleetwood, Seville?

Yes, this is a direct bolt-in fit for transverse 1986-1987 Cadillac models running the 4.1L HT4100 engine; it does not fit rear-wheel-drive Brougham models equipped with the 5.0L Oldsmobile V8.

What wiring and belt modifications are required for installation?

Due to the one-wire 15.1V configuration and 400A peak draw, a dedicated 0-gauge all-copper charging cable to the positive battery terminal and a drive belt one size shorter than factory are required.

The Cadillac Caliber

Vintage Cadillac luxury depends on flawless electrical stability. This heavy-duty charging platform preserves analog and digital electronics alike, providing the unrelenting power delivery necessary to support high-draw modern comfort and audio upgrades without compromise.
