High Output Alternator for Cadillac CTS (2014-2019) 2.0L

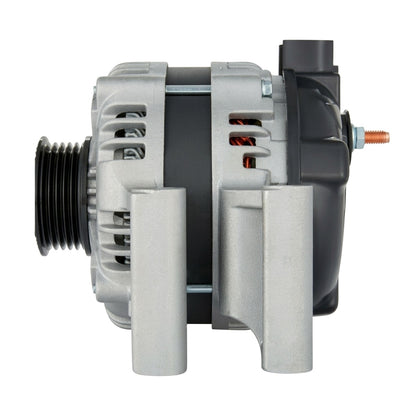

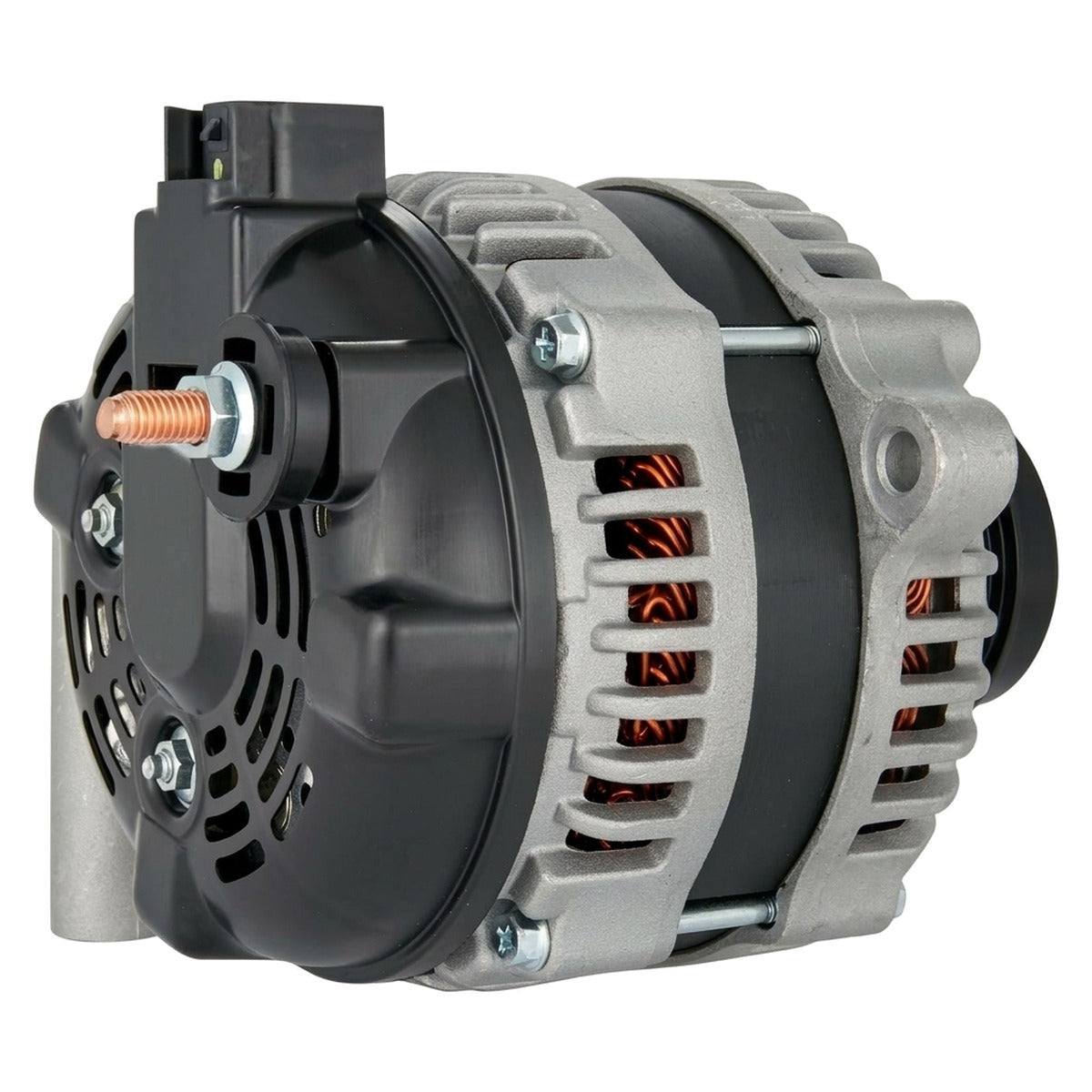

High-Output 250-Amp Alternator for 2014-2019 Cadillac CTS (Alpha)

What it Does: The High-Output 250-Amp Alternator replaces the factory charging unit on the 2014-2019 Cadillac CTS to deliver steady charging voltage and eliminate electrical system brownouts under high electrical loads.

The Stock Cadillac CTS Charging Deficits

Factory charging systems on the third-generation Alpha platform CTS powered by the LTG 2.0L turbo run a standard 150-amp unit engineered solely for baseline electrical demand. Under continuous thermal cycling inside the compact engine bay, the stock diode bridge suffers heat soak, creating internal resistance. When high-draw aftermarket equipment—such as auxiliary air compressors, audio amplifiers, or auxiliary cooling—is added, the stock unit cannot sustain target system voltage at idle. This leads to voltage drops below 12.8V, battery discharge, sensor voltage instability, and electrical ripple through the CAN-bus architecture.

The Engineering Solution

Engineered and manufactured in the USA, this direct-replacement 250-amp alternator provides the amperage needed for heavy electrical demands. Built with high-efficiency stator windings and heavy-duty avalanche diodes, it produces substantial output at engine idle while sustaining a full 250-amp peak at operating RPM. The unit bolts directly into the factory accessory bracket, replacing OEM part numbers 104210-1960, 13592811, and 22892569 without modification to the factory mounting points. Upgraded internal rectifiers and heavy-duty rotor bearings resist thermal degradation and parasitic rotational loss, delivering clean 14.4V regulation directly to the vehicle harness.

What's Included

• 1x 250-Amp High-Output Alternator

Technical Specifications

Compatibility

• 2014-2019 Cadillac CTS Base 2.0L Turbo
• 2014-2019 Cadillac CTS Luxury 2.0L Turbo
• 2014-2019 Cadillac CTS Premium Luxury 2.0L Turbo

Frequently Asked Questions & Fitment Warnings

Does this fit the Alpha CTS?

Yes, this is a direct fit for the 2014-2019 Cadillac CTS equipped with the LTG 2.0L turbo engine; it does not fit 3.6L V6 (LFX/LGX) or 6.2L V8 (LT4) CTS-V models due to differing bracket orientation.

Do I need to upgrade my main charging cables?

Upgrading the primary charging wire to a 4-gauge or 1/0 "Big 3" cable setup is strongly recommended to safely deliver the full 250-amp capacity without bottlenecking the factory wiring harness.

The Cadillac Precision Standard

Modern Cadillac electronic architectures require stable DC voltage to run sensitive chassis modules, active suspension systems, and direct-injection management without triggering communication fault codes or sensor drift.
