High Output Alternator for Cadillac ATS (2013-2017) 2.0L 2.5L

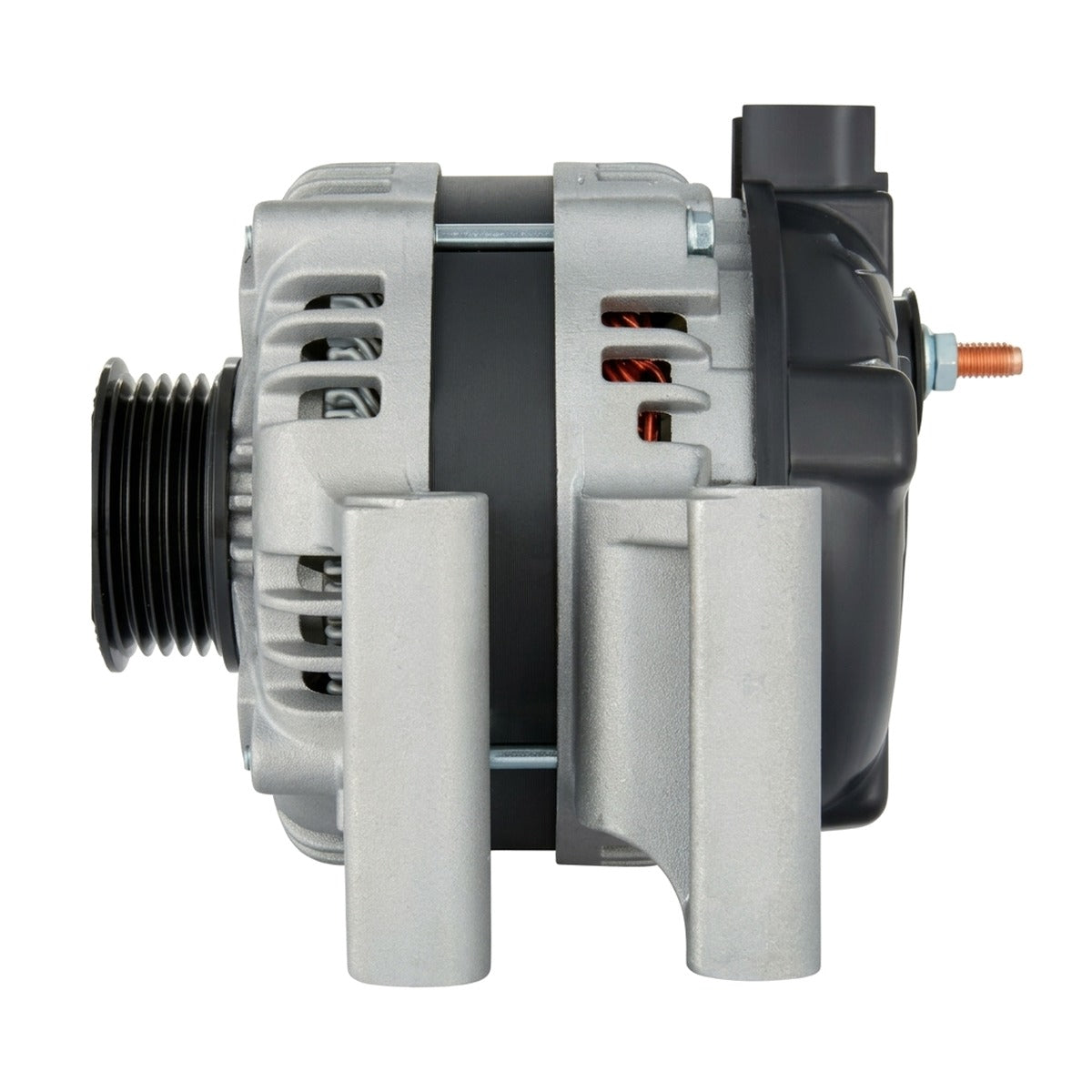

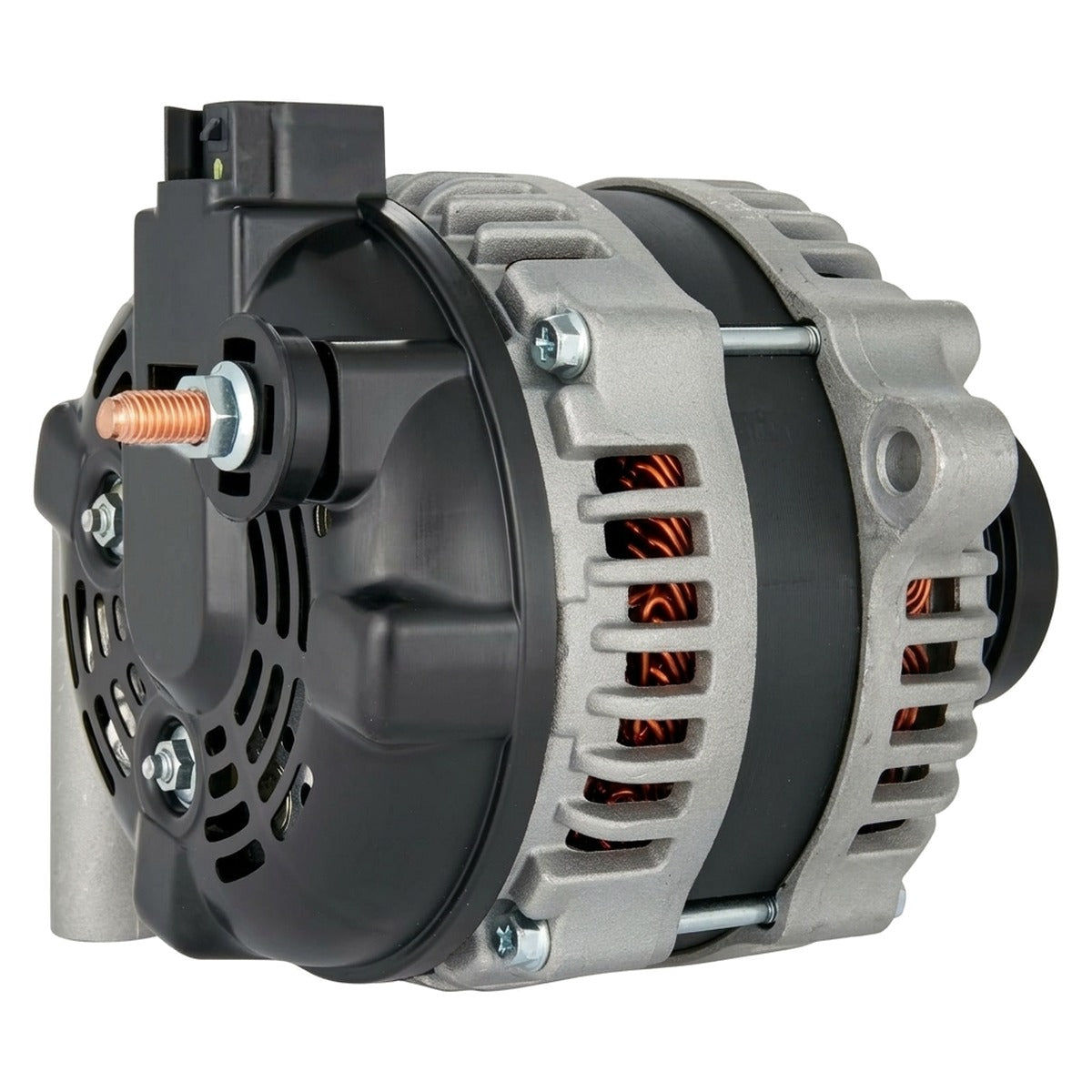

High-Output 250-Amp Alternator for 2013-2017 Cadillac ATS (Alpha Platform)

What it Does: The 250-Amp High-Output Alternator replaces the factory charging unit on the 2013-2017 Cadillac ATS to deliver sustained electrical amperage, prevent voltage drop under heavy electrical loads, and maintain stable line current to onboard control modules.

The Stock Cadillac ATS Charging Deficiencies

Factory alternators on the Alpha platform Cadillac ATS are engineered with standard 130A to 150A output profiles, which are adequate solely for stock baseline loads. Once auxiliary accessories—such as upgraded audio hardware, high-flow fuel pumps, or secondary cooling fans—are integrated, the factory diode pack suffers from severe heat soak. In the tight engine bay of the LTG and LCV engines, elevated ambient underhood temperatures degrade OEM rectifier efficiency. This thermal throttling drops system potential below 12.8V at idle, generating erratic CAN-bus communication faults, inconsistent spark coil dwell times, and premature AGM battery failure.

The Engineering Solution

Manufactured in the USA, this direct-replacement 250A high-output unit solves high-load thermal and inductive bottlenecking. It features precision-wound, heavy-gauge copper stators alongside heavy-duty avalanche diode rectifiers to provide rapid heat dissipation and maximum electrical throughput. The unit produces over 140 amps at curb idle and delivers full 250-amp saturation through higher RPM bands, maintaining a consistent 14.4V supply. It directly supersedes OEM part numbers 104210-1960 and 13592811, installing into factory mounting brackets without bracket modification.

What's Included

• 1x 250-Amp High-Output Alternator

Technical Specifications

Compatibility

• 2013-2017 Cadillac ATS 2.0L L4 Turbo (Engine Code: LTG)
• 2013-2017 Cadillac ATS 2.5L L4 Naturally Aspirated (Engine Code: LCV)

Frequently Asked Questions & Fitment Warnings

Does this fit the Alpha ATS?

Yes, this is a direct bolt-on fit for the 2013-2017 Cadillac ATS equipped with the LTG 2.0L Turbo and LCV 2.5L 4-cylinder engines. This alternator does not fit models equipped with the 3.6L V6 (LFX/LGX) or the ATS-V 3.6L Twin Turbo (LF4) engine.

Do I need to upgrade my battery cables?

To safely handle continuous 250-amp loads, executing a "Big 3" electrical upgrade using 1/0 or 4-gauge power and chassis ground cabling is strictly recommended to prevent cable overheating and resistance losses.

The Cadillac Precision Standard

Modern luxury-sport platforms rely on precise sensor telemetry and consistent module voltage; this charging upgrade safeguards vehicle microcontrollers from destabilizing ripple current and voltage drops under extreme operational demands.
