High-Amp 210A Alternator for 2002-2005 Acura RSX (DC5)
What it Does: The 210-Amp High Output Alternator replaces the factory charging unit on the 2002-2005 Acura RSX to eliminate severe system voltage drop and supply stable current under heavy electrical demands.
The Stock Acura RSX Charging Limitations
The factory charging system on the DC5 chassis was engineered for minimal factory accessory draw, utilizing an OEM unit rated at only 70 to 80 amps. When modifying the vehicle with high-draw components—such as high-volume electric fuel pumps, aftermarket audio amplifiers, auxiliary cooling fans, or standalone engine management systems—the factory alternator cannot keep pace. At idle, voltage regularly dips below 12.5 volts, causing sluggish fuel pump delivery, erratic sensor readouts, and dimming lights. Sustained high-RPM operation common to the K20 engine family also induces severe thermal stress on the stock internal rectifier and regulator, leading to premature diode breakdown and charging failure.
The Engineering Solution

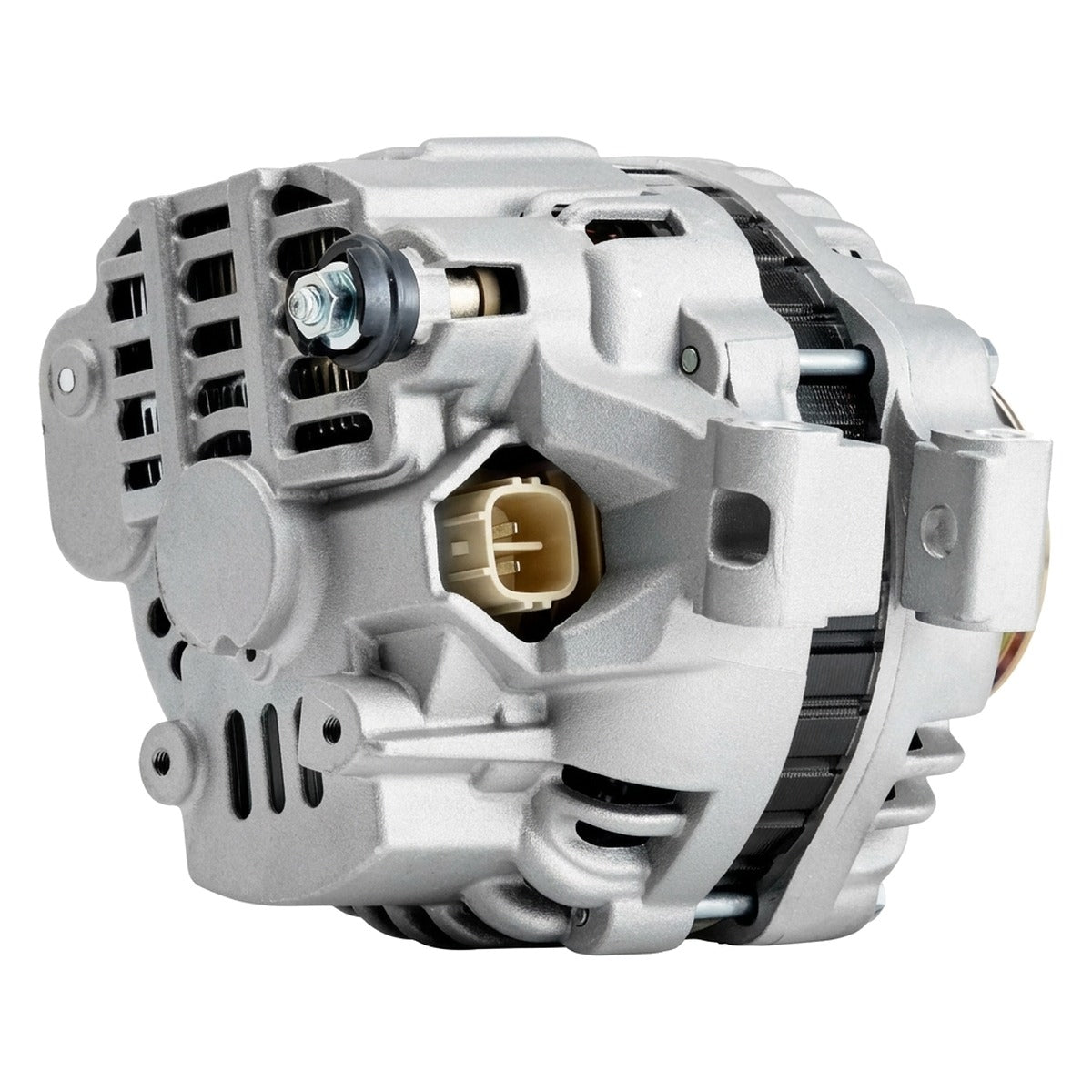

Assembled in the USA, this heavy-duty 210-amp unit is engineered with high-temperature copper stator windings, a heavy-duty avalanche diode rectifier, and oversized internal bearings capable of withstanding prolonged 8,000+ RPM sweeps. By more than doubling factory amperage output, it sustains clean 14.2V–14.6V rail charging across the entire rev band, protecting sensitive ignition coils and fuel injectors from erratic voltage fluctuations during aggressive driving.
What's Included
- 1x 210-Amp High Output Alternator
Technical Specifications
| Fitment | 2002-2005 Acura RSX |
|---|---|
| Engine / Chassis | K20 2.0L / DC5 |
| Stock Output | 160 hp / 141 lb-ft (Base) |
| Replaces OEM Part # | A2TB7591, 31100PND004, AL1290X, 13966, 13966N, 13966R, 31100-PND-004, 210-4168, AHGA55, 13966-210A |
Compatibility
- 2002-2005 Acura RSX 2.0L
Frequently Asked Questions & Fitment Warnings
Does this fit the DC5 RSX?
Yes, this is a direct bolt-in fit for the 2002-2005 Acura RSX equipped with the K20 2.0L engine.
Do I need to upgrade my charging wiring for this alternator?
Yes, performing a 'Big 3' upgrade with minimum 4-gauge (or 1/0-gauge) fused power cabling between the alternator output stud, battery, and chassis ground is required to safely carry the full 210-amp current load.
The Acura Caliber
The high-revving DC5 platform demands uncompromising electrical stability; maintaining rigid primary voltage ensures optimal injector opening speeds, uninterrupted spark energy through VTEC cross-over, and peak track-day reliability.
