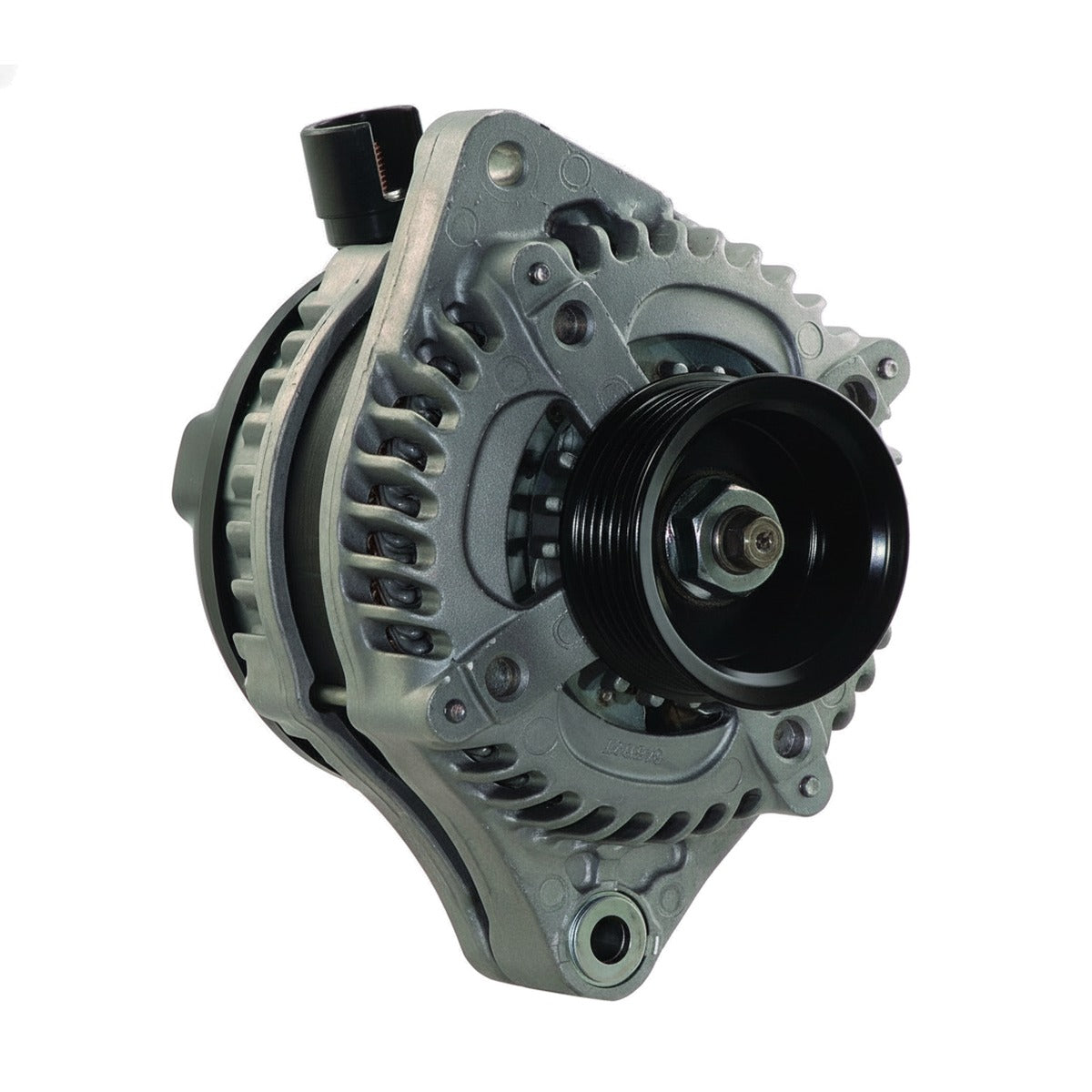

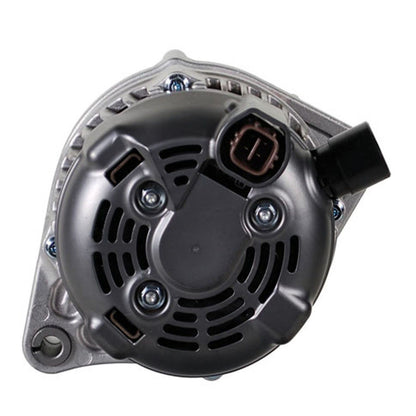

High Output Alternator for Acura RL (2005-2008) 3.5L

High-Capacity 200-Amp Alternator for 2005-2008 Acura RL (KB1)

What it Does: The High Output Alternator replaces the factory charging unit on the 2005-2008 Acura RL to eliminate electrical voltage drop, maintain consistent battery charging, and deliver uninterrupted 200-amp current to high-draw onboard electronics.

The Stock Acura RL Electrical System Limitations

The factory 130-amp alternator on the KB1 platform struggles under heavy sustained electrical loads. Equipped with advanced chassis electronics—including the power-hungry electromagnetic clutches in the Super Handling All-Wheel Drive (SH-AWD) differential, power-seat heaters, and complex infotainment—the factory charging system operates near maximum thermal capacity. Heat soak in the stock rectifier bridge causes severe amperage degradation at hot idle, dropping system voltage below 12.8V. This voltage sag causes intermittent false sensor codes, sluggish accessory response, and accelerated battery degradation.

The Engineering Solution

This Made in USA 200-amp high-output unit re-engineers the charging architecture for the J35A8 engine. Featuring precision-wound, heavy-gauge copper stators and high-temperature-rated avalanche diodes, it maximizes current generation across all RPM bands. The internal rectifier efficiently dissipates heat through a low-resistance aluminum housing, preventing thermal clipping. Engineered as a direct drop-in replacement, it utilizes OEM mounting locations and matches factory pulley alignment to maintain proper serpentine belt tension without custom bracket fabrication.

What's Included

• 1x 200-Amp High Output Alternator

Technical Specifications

Compatibility

• 2005 Acura RL 3.5L V6 (KB1)
• 2006 Acura RL 3.5L V6 (KB1)
• 2007 Acura RL 3.5L V6 (KB1)
• 2008 Acura RL 3.5L V6 (KB1)

Frequently Asked Questions & Fitment Warnings

Does this fit the KB1 RL?

Yes, this is a direct fit for the 2005-2008 Acura RL equipped with the J35A8 3.5L V6 engine.

Do I need to upgrade my charging cables with this unit?

While this alternator utilizes the factory plug and post configuration, performing a 4-gauge or 1/0-gauge 'Big 3' wire upgrade is strongly advised to safely transfer the full 200-amp capacity without thermal line loss.

The Acura Engineering Caliber

Engineered for high-demand Japanese luxury platforms, this alternator maintains stable voltage across complex multi-bus electronic systems, ensuring peak performance from transmission solenoids, ignition coils, and active all-wheel-drive controllers under any ambient operating condition.
