High Output Alternator for Acura MDX (2007-2009) 3.7L

High-Amp 200A Alternator for 2007-2009 Acura MDX (YD2)

What it Does: The 200 Amp High Output Alternator replaces the factory charging unit on the 2007-2009 Acura MDX to provide stable electrical current, eliminate voltage sag, and support high-draw electronics.

The Stock Acura MDX Electrical Limitations

The factory charging system on the YD2 platform utilizes a stock 130-amp alternator engineered strictly for factory base loads. When driving the J37A1 engine, elevated under-hood ambient temperatures combine with the demands of the factory SH-AWD electro-magnetic clutch packs, seat heaters, and navigation systems to push the OEM unit to its thermal ceiling. Under sustained accessory load or idling in traffic, the stock stator windings suffer heat soak, causing charging voltage to drop below 13.2V. This induces battery drain, erratic sensor signals, and premature diode pack burnout.

The Engineering Solution

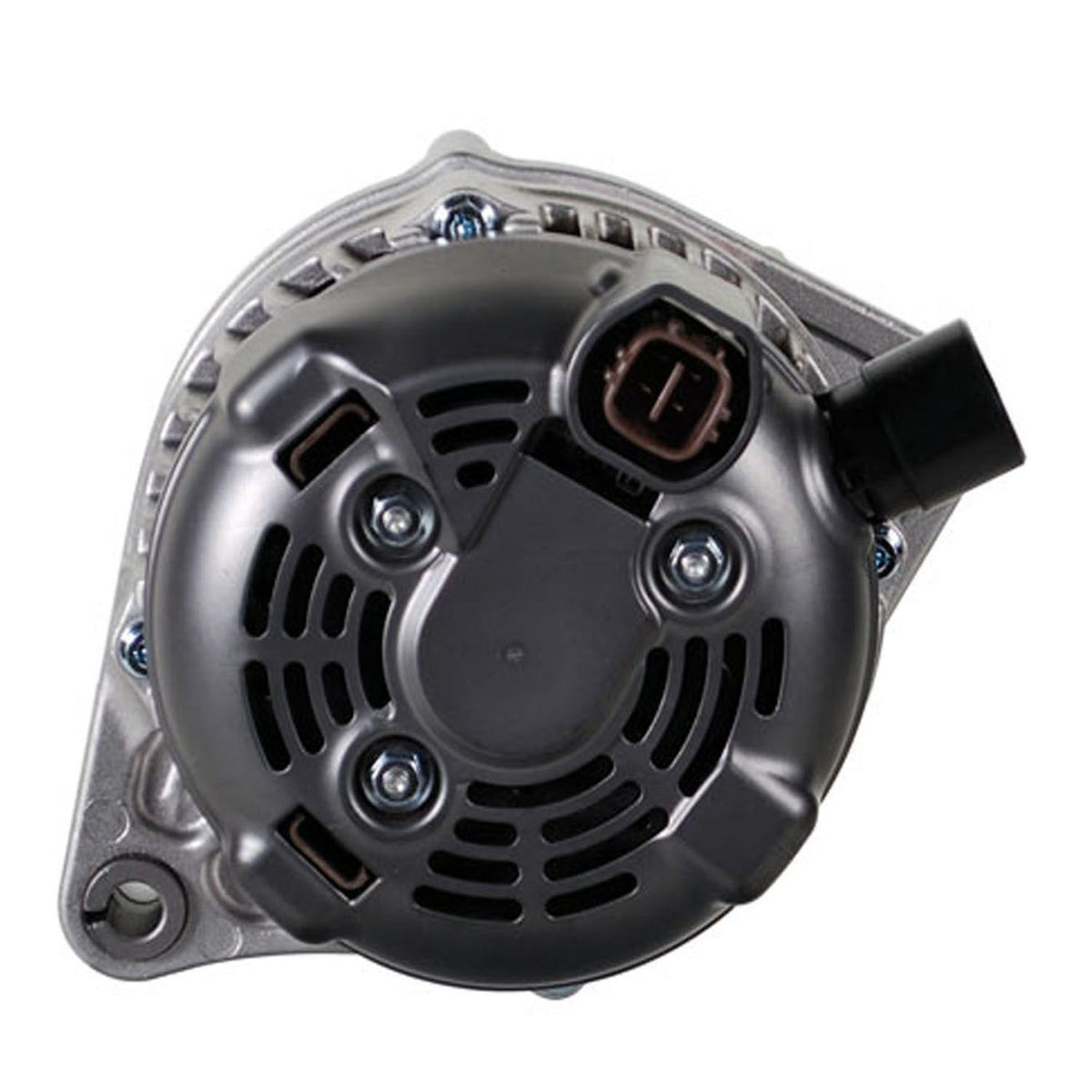

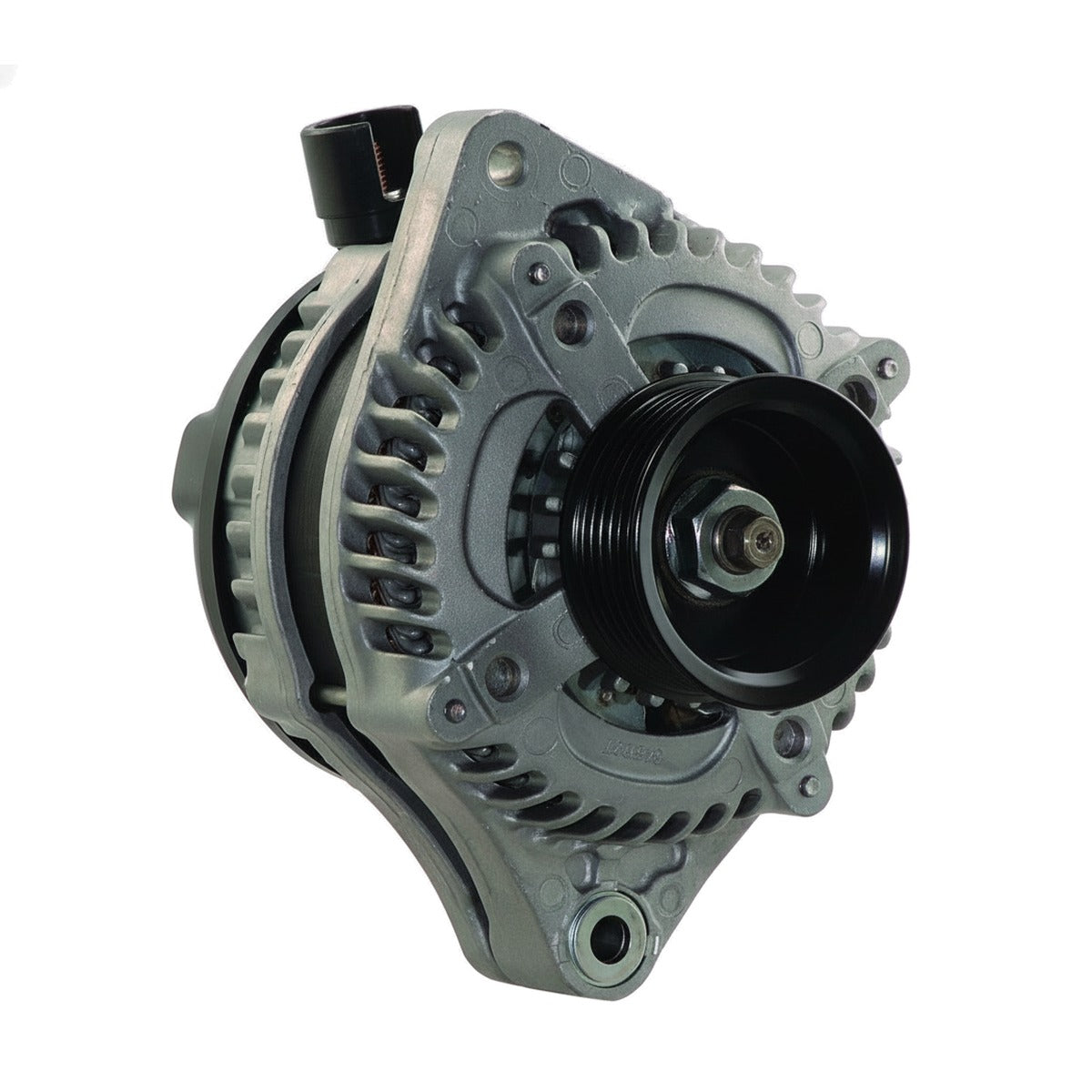

This heavy-duty 200-amp replacement delivers high current output across the entire RPM range, maintaining stable rail voltage even at low idle. Manufactured in the USA with heavy-gauge pure copper windings, a high-efficiency rotor/stator assembly, and heavy-duty silicon rectifiers, this unit dissipates internal thermal buildup efficiently. The direct-fit housing retains factory mounting geometry and harness connectivity to ensure seamless replacement of OEM part number 31100-RGM-A01 without bracket modification.

What's Included

• 1 x 200 Amp High Output Alternator

Technical Specifications

Compatibility

• 2007 Acura MDX 3.7L V6 (All Trims)
• 2008 Acura MDX 3.7L V6 (All Trims)
• 2009 Acura MDX 3.7L V6 (All Trims)

Frequently Asked Questions & Fitment Warnings

Does this fit the YD2 MDX?

Yes, this is a direct bolt-on fit for the 2007-2009 Acura MDX equipped with the 3.7L J37A1 V6 engine.

Do I need to upgrade my charging wiring?

While this alternator utilizes the factory plug, completing a "Big 3" 4-gauge or 1/0-gauge wiring upgrade from the alternator positive stud to the battery is strongly recommended to handle 200-amp peak currents safely.

The Acura Caliber

Preserve the performance reliability of your luxury AWD platform with an electrical system capable of supporting both demanding onboard computers and high-draw aftermarket gear without hesitation.
