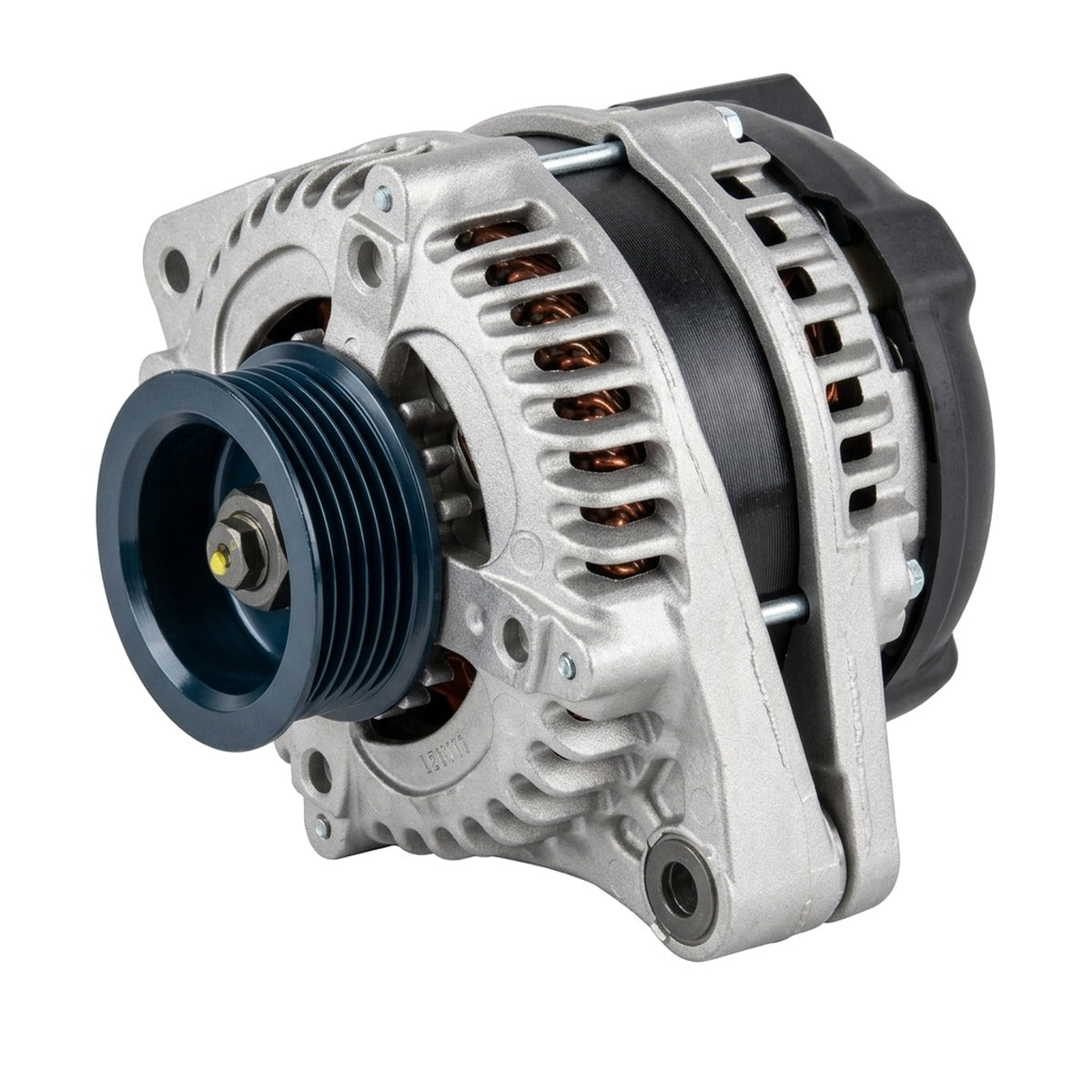

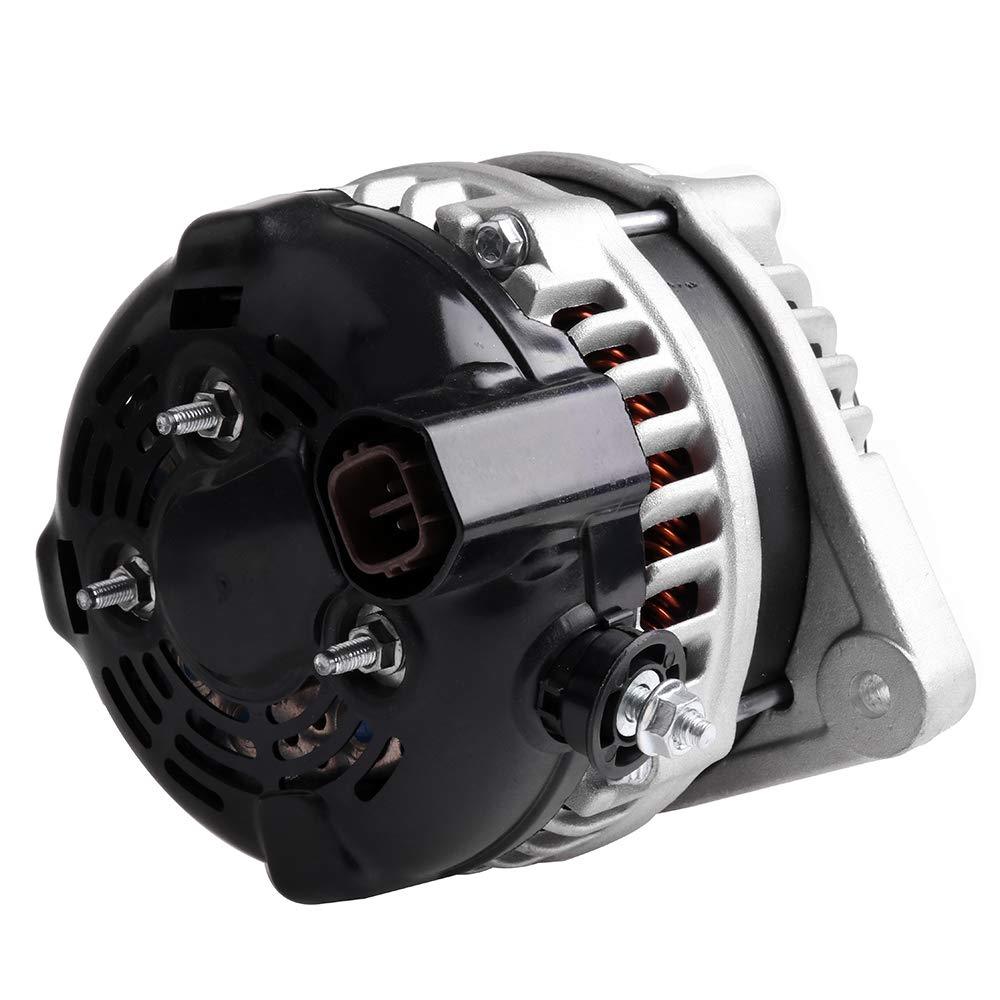

High-Output 200-Amp Alternator for 2003-2004 Acura MDX (YD1)
What it Does: The high output 200-amp alternator replaces the factory charging unit on the 2003-2004 Acura MDX to supply stable, high-amperage current for auxiliary electronics and eliminate low-RPM voltage drop.
The Stock Acura MDX Charging Limitations
The factory Denso-style charging unit on the first-generation YD1 chassis is rated at a modest factory amperage engineered strictly for stock electrical loads. Over time, heat exposure inside the cramped J35A5 engine bay degrades the OEM internal rectifier and diode bridge. When accessories such as aftermarket audio, inverters, or towing gear are added, the stock unit suffers severe thermal load. At curb idle, factory amperage output falls off sharply, causing voltage sag, flickering gauge clusters, sluggish power windows, and premature battery degradation.
The Engineering Solution
This 200-amp alternator upgrade resolves charging deficits with high-conductivity copper windings designed to maximize magnetic field density and produce significantly higher idle output. Featuring an upgraded heavy-duty rectifier equipped with high-amp avalanche diodes, the unit efficiently dissipates heat soak under prolonged high-demand cycles. It is housed in a precision-cast aluminum case engineered to direct OEM bolt locations, providing a direct-fit replacement for part numbers 31100-RDJ-A01 and 104210-3100 while maintaining correct belt alignment on the factory accessory drive.
What's Included
- 1x 200-Amp High Output Alternator
Technical Specifications
| Fitment | 2003-2004 Acura MDX |
|---|---|
| Engine / Chassis | J35A5 3.5L V6 / YD1 |
| Stock Output | 260 hp / 250 lb-ft |
| Replaces OEM Part # | 31100-RDJ-A01, CSC10, AL1297X, 210-0529, 104210-3100, 11099 |
Compatibility
- 2003 Acura MDX Base 3.5L V6 (J35A5)
- 2003 Acura MDX Touring 3.5L V6 (J35A5)
- 2004 Acura MDX Base 3.5L V6 (J35A5)
- 2004 Acura MDX Touring 3.5L V6 (J35A5)
Frequently Asked Questions & Fitment Warnings
Does this fit the YD1 MDX?
Yes, this is a direct fit for the 2003-2004 Acura MDX equipped with the J35A5 engine.
Do I need to upgrade my factory wiring?
A "Big 3" electrical upgrade using 4-gauge or 1/0-gauge fused wiring between the alternator, battery, and ground is highly recommended to safely support full 200-amp continuous current.
The Acura Caliber
Maintain consistent ignition voltage, optimal spark energy, and uninterrupted power across all factory and aftermarket electrical systems on your J-series V6.
