Engine Block Heater for Perkins 4.108 4-236 4-248 (4 cyl.) Diesel Engines

Direct-Immersion Engine Block Heater for Perkins 4.108, 4-236, 4-248 (LD/LF/ED Platform)

What it Does: The Engine Block Heater installs into the cylinder water jacket on Perkins 4.108, 4-236, and 4-248 diesel engines to pre-heat coolant, dramatically reducing parasitic starter drag and ensuring rapid cold-weather compression ignition.

The Stock Perkins 4.108, 4-236, 4-248 Cold-Starting Vulnerability

Direct and indirect injection Perkins diesels rely strictly on compression heat to combust diesel fuel. In sub-freezing ambient conditions, cold cast-iron cylinder walls rapidly conduct heat away from the combustion chamber, preventing atomized diesel from reaching autoignition temperature. Combined with high-viscosity cold 15W-40 oil creating severe hydrodynamic drag across the crank journals, OEM starting systems suffer extreme battery draw, extended cranking cycles, unburnt fuel bore wash, and severe ring and bearing wear before oil pressure establishes.

The Engineering Solution

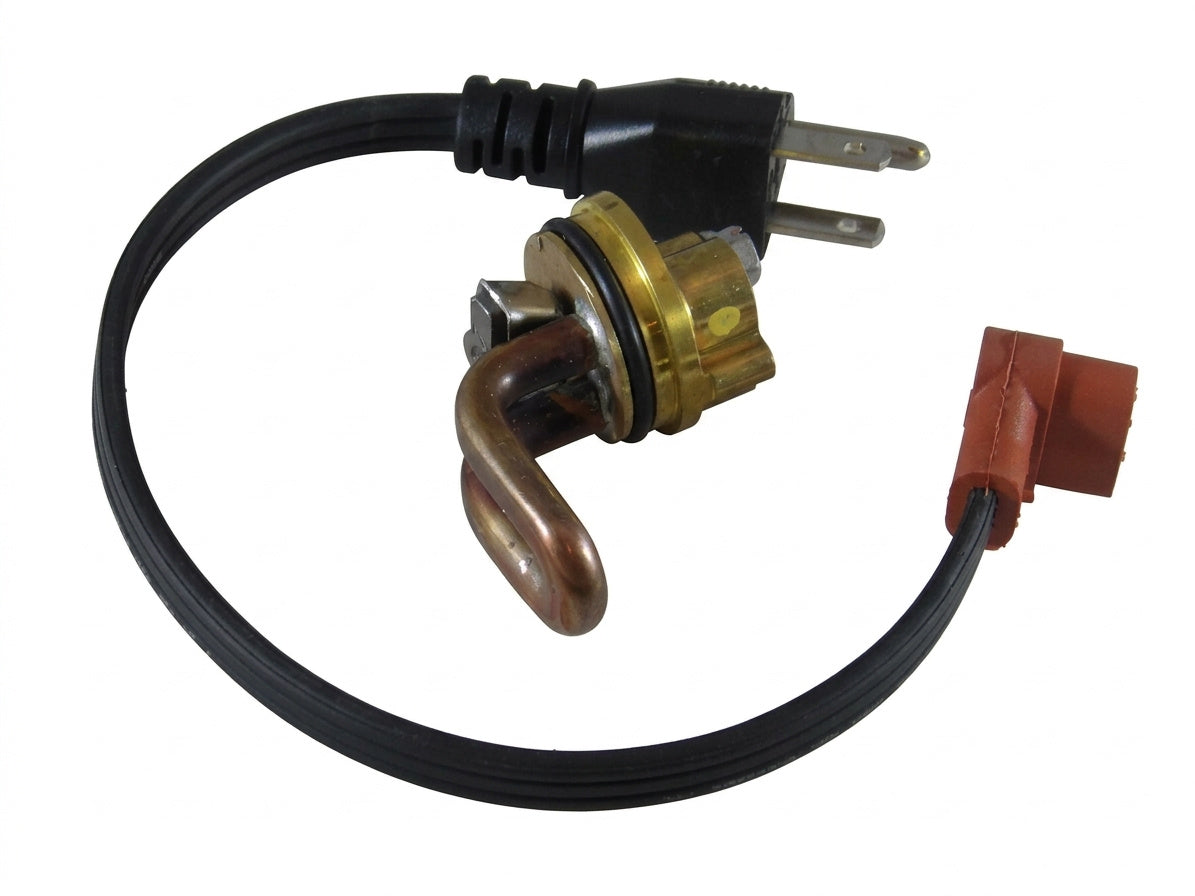

This direct-immersion freeze plug heater delivers 600 watts of thermal energy at 110/120V AC directly into the engine’s water jacket. Manufactured with a corrosion-resistant heating element press-fit to a precise 1-1/4 inch diameter, it establishes a natural thermal siphon across the block without hot spots. Heating the coolant evenly warms cylinder sleeves and upper block journals, thinning engine oil to reduce starter fatigue and delivering instantaneous combustion pressures without the aid of volatile ether starting fluids.

Technical Specifications

Compatibility

• Perkins 4.108 (E-Series / ED) 4-Cylinder Diesel
• Perkins 4-236 (LD Series) 4-Cylinder Diesel
• Perkins 4-248 (LF Series) 4-Cylinder Diesel

Frequently Asked Questions

Does this fit the Industrial/Ag Platform 4.108, 4-236, 4-248?

Yes, this heater is engineered specifically for direct installation on Perkins 4.108, 4-236, and 4-248 engines utilizing standard 1-1/4 inch core freeze plug ports.

Where is the heater element positioned during installation?

Install the assembly on the left side of the block in the second freeze plug port from the rear, aligning the element either vertically up or down before torquing the retainer.

The Perkins Heavy-Duty Standard

Agricultural, marine, and commercial machinery relying on Perkins power demand maximum mechanical uptime under severe working conditions. Eliminating dry friction start-ups and reducing cylinder taper wear safeguards critical rotating assemblies, providing dependable cold-weather ignition and extended service life across demanding industrial duty cycles.
