Engine Block Heater for Jeep Wrangler (1987-2006) 4.0L 4.2L

Cold-Start Freeze Plug Engine Block Heater for 1987-2006 Jeep Wrangler (YJ / TJ)

What it Does: The Zerostart 3100072 Engine Block Heater directly warms internal engine coolant on the 1987-2006 Wrangler to eliminate severe cold-start wear and provide immediate cabin heat in freezing ambient conditions.

The Stock Jeep Wrangler Cold Weather Weakness

The heavy cast-iron construction of the AMC 242 (4.0L) and AMC 258 (4.2L) inline-six engines acts as a massive thermal sink in sub-freezing weather. Frigid temperatures drastically thicken motor oil, delaying hydrodynamic oil pressure to critical flat-tappet camshaft lobes, lifters, and rod bearings during initial cranking. This severe friction accelerates internal bore wear, strains the starter motor and battery, and results in extended cold-idle fuel wash down the cylinder walls.

The Engineering Solution

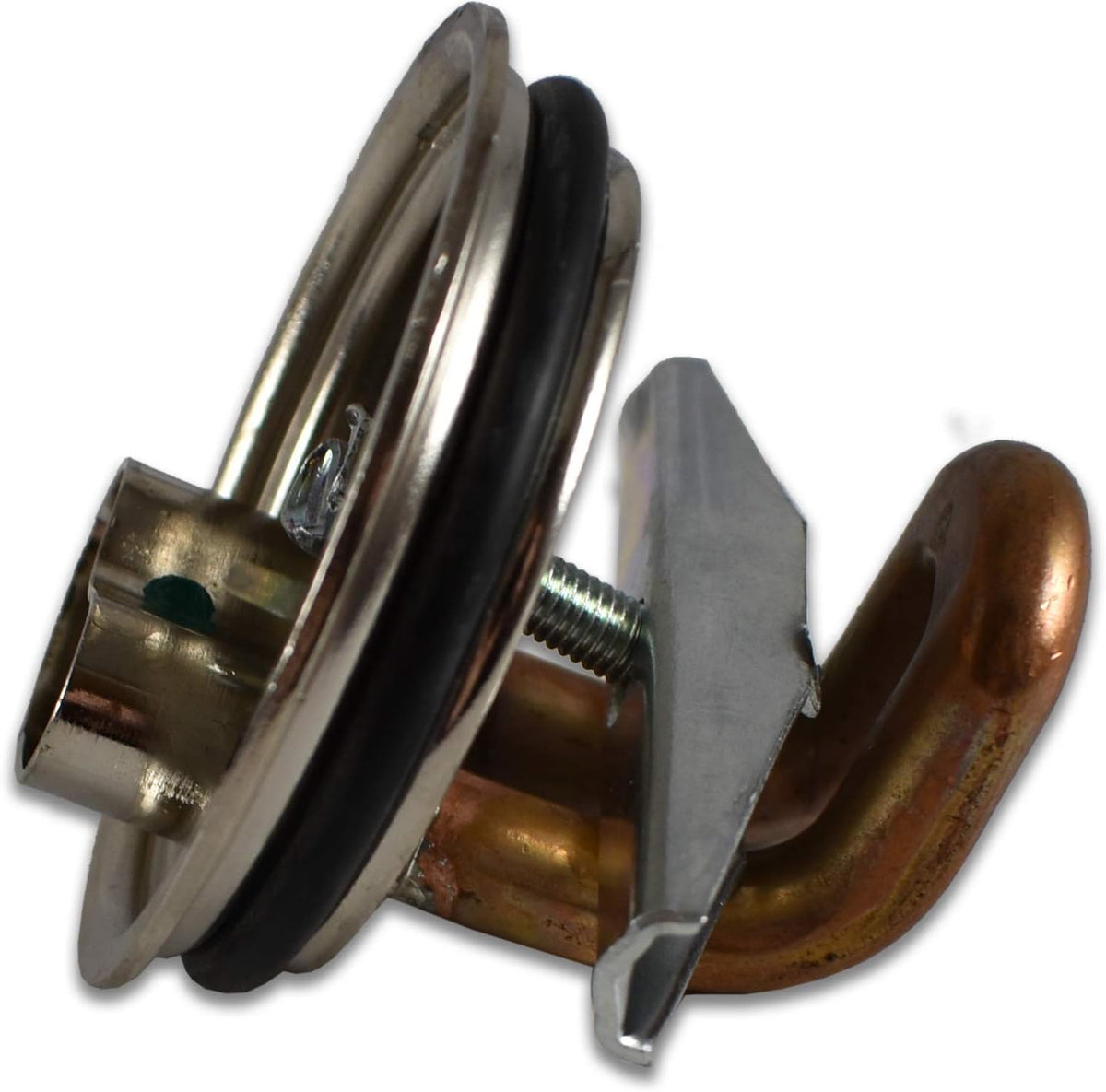

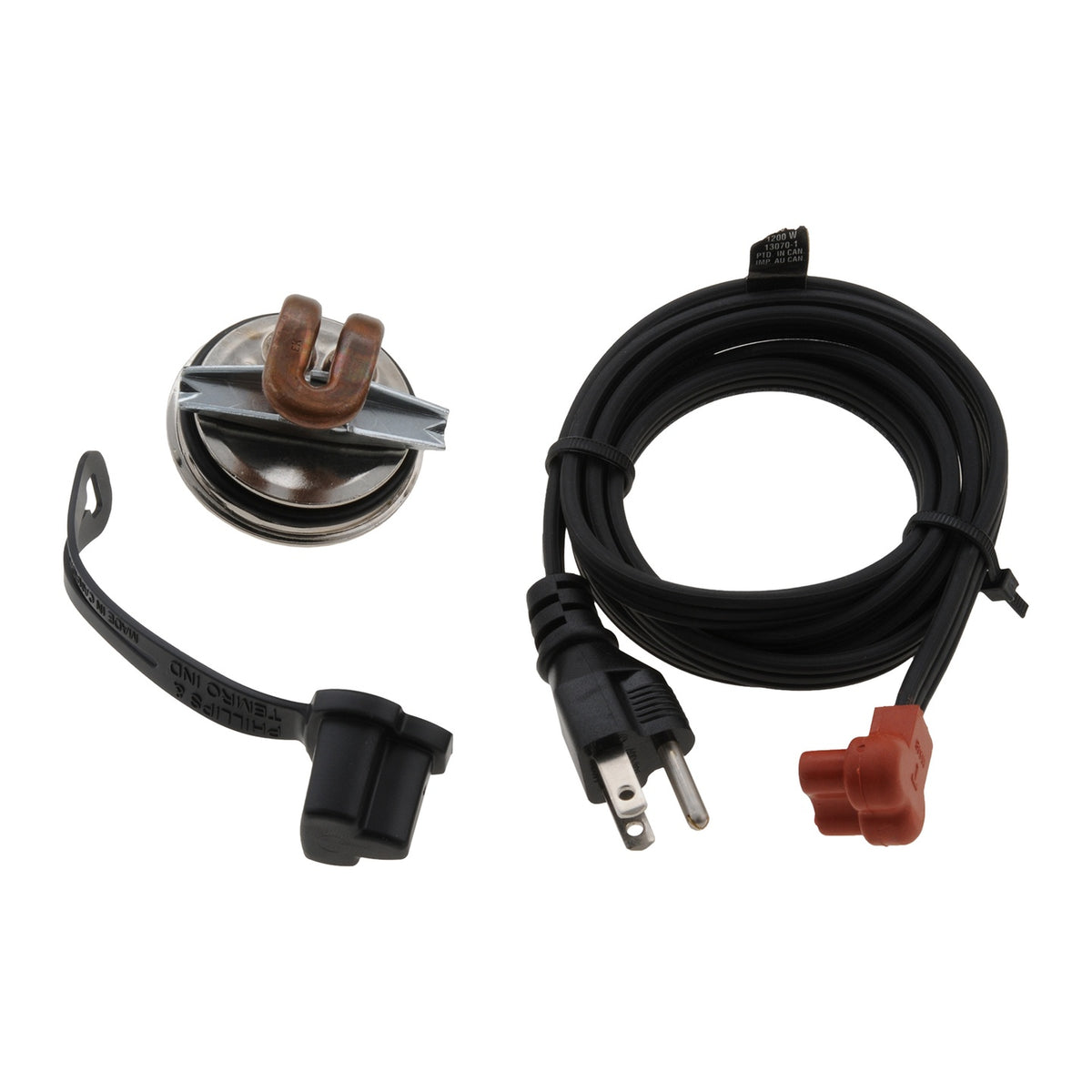

This 600-watt, 120-volt direct immersion heating element installs directly into the engine water jacket via a 2-inch freeze core hole. By transferring heat straight into the engine coolant through thermal convection, it maintains elevated block temperatures overnight. The unit features heavy-duty brass element construction for galvanic corrosion resistance and a positive O-ring seal to prevent coolant seepage under thermal expansion cycles. Pre-heating the iron block preserves oil viscosity, ensures immediate cold-weather ignition, and drastically mitigates bearing starvation on sub-zero starts.

Technical Specifications

Compatibility

• 1987-1990 Jeep Wrangler YJ (4.2L AMC 258 Inline-6)
• 1991-1995 Jeep Wrangler YJ (4.0L AMC 242 Inline-6)
• 1997-2006 Jeep Wrangler TJ (4.0L AMC 242 Inline-6)
• 2004-2006 Jeep Wrangler Unlimited LJ (4.0L AMC 242 Inline-6)
• Note: Fits 2-inch freeze plug ports only; does not fit 2.4L, 2.5L, or modern V6/V8 conversions.

Frequently Asked Questions

Does this fit the YJ and TJ Wrangler?

Yes, this is a direct fit for the 1987-2006 Jeep Wrangler equipped with the AMC 242 4.0L or AMC 258 4.2L inline-six engine.

Which block location is used for installation?

This unit installs directly in place of a factory 2-inch freeze (core) plug on the engine block after draining the cooling system.

The Jeep Trail Durability Standard

Engineered to handle extreme winter conditions, this immersion heater maintains cast-iron block readiness so your Wrangler cranks reliably without mechanical wear on frozen backcountry trails.
