Engine Block Heater for Ford E-Series (1998-2010) 6.8L V10

Direct-Immersion Engine Block Heater for 1998-2010 Ford E-Series (VN Platform)

What it Does: The Engine Block Heater pre-warms engine coolant on the 1998-2010 E-Series to ensure rapid fluid circulation, eliminate cold-start wear, and reduce starter load in sub-zero environments.

The Stock Ford E-Series Sub-Zero Ignition Deficiencies

Sub-freezing ambient temperatures severely challenge the large-displacement 6.8L Triton V10. During extreme cold soak, high motor oil viscosity delays lubrication delivery to the overhead camshafts and valvetrain, leading to metal-to-metal contact, increased cylinder wall friction, and prolonged starter engagement. Additionally, cold thermal cycling stresses the VN Platform electrical system, draining battery reserve capacity during high-amperage crank cycles.

The Engineering Solution

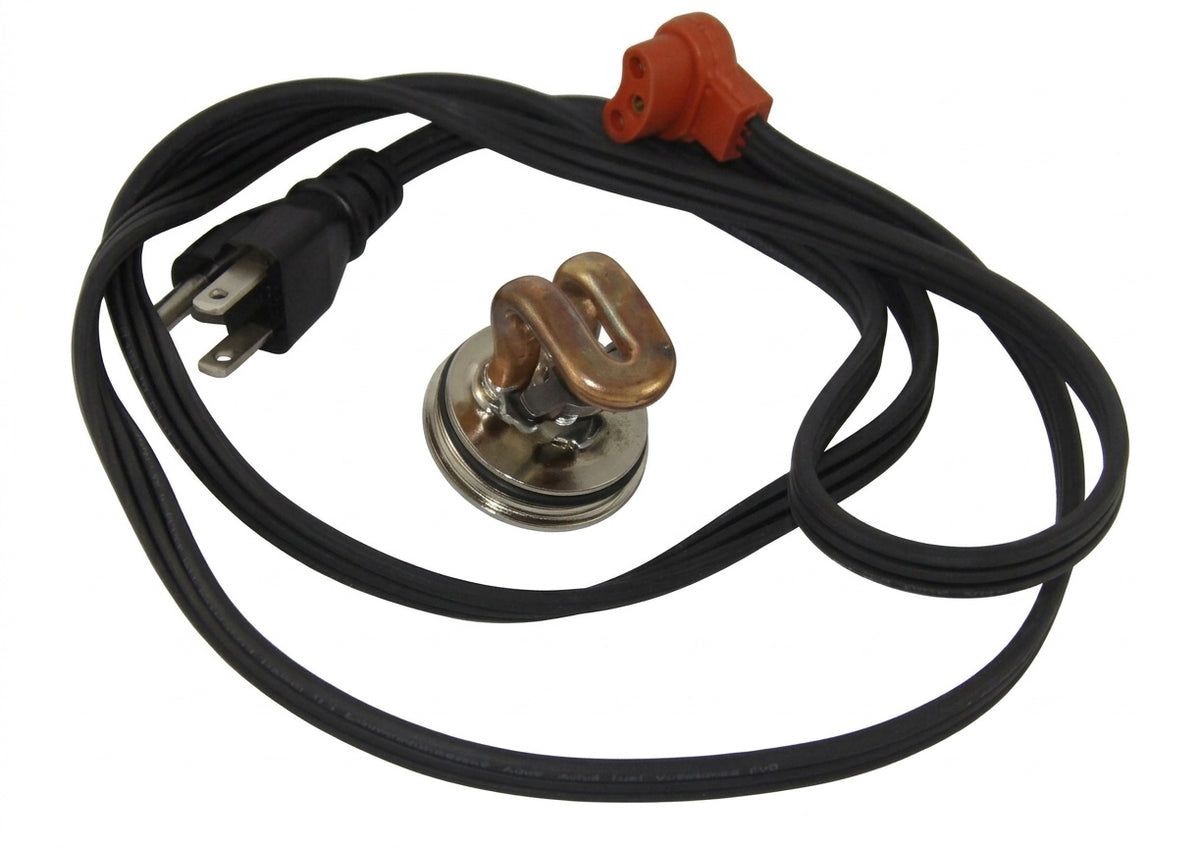

This 600W direct-immersion freeze plug heater mounts straight into the engine block's 1-1/2 inch core hole, conducting heat straight to the internal water jacket. Utilizing high-grade thermal conductive elements and corrosion-resistant brass retention, it initiates natural convection throughout the cooling passages. This maintains elevated coolant and oil temperatures prior to crank, preserving viscosity, protecting journal bearings, and accelerating closed-loop fuel injection warmup. The assembly includes a heavy-duty, weather-shielded 5-foot power harness rated for commercial fleet duty cycles.

Technical Specifications

Compatibility

• 1998-2010 Ford E-250 Econoline 6.8L V10
• 1998-2010 Ford E-350 Econoline / Club Wagon 6.8L V10
• 1998-2010 Ford E-350 Super Duty 6.8L V10
• 1998-2010 Ford E-450 Super Duty / Econoline 6.8L V10

Frequently Asked Questions

Does this fit the VN Platform E-Series?

Yes, this is a direct fit for the 1998-2010 Ford E-Series equipped with the 6.8L Triton V10 engine.

Does installation require draining the cooling system?

Yes, because the element seats into a 1-1/2 inch core plug opening, the engine coolant must be fully drained and subsequently bled post-installation.

The Ford Heavy-Duty Workhorse Standard

Built to sustain severe commercial haul and cold-weather fleet routes, this immersion heater eliminates cold-weather engine stress, ensuring reliable starting and extended powertrain longevity under the heaviest operational demands.
