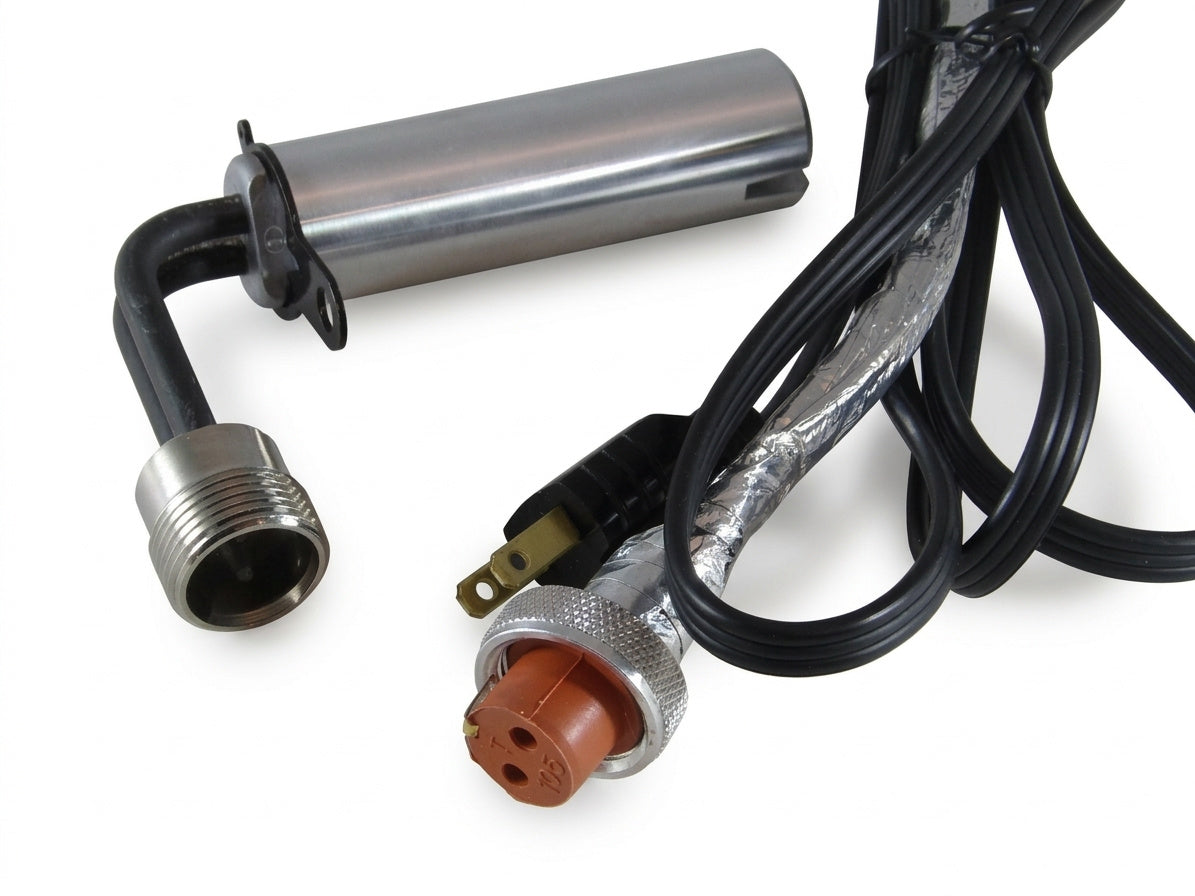

Engine Block Heater for Dodge Magnum (2005-2008) 5.7L Hemi

Direct-Immersion Engine Block Heater for 2005-2008 Dodge Magnum (LX)

What it Does: The Engine Block Heater pre-warms engine coolant in the water jacket on the 2005-2008 Dodge Magnum to reduce cold-crank friction, protect internal valvetrain components, and deliver rapid cabin warmth in sub-zero climates.

The Stock Dodge Magnum Sub-Zero Lubrication Deficit

During freezing conditions, the heavy cast-iron block of the 5.7L HEMI in the LX chassis operates as a massive heat sink. Sub-zero temperatures severely elevate motor oil viscosity, stalling initial oil pressure to the overhead valvetrain, camshaft journals, and Multi-Displacement System (MDS) lifters during ignition. Extended cranking under cold oil friction accelerates cylinder bore scuffing, drains battery reserves, strains the starter drive, and creates rich-condition cylinder washdown before the powertrain control module achieves closed-loop status.

The Engineering Solution

This 600-watt, 120-volt block heater utilizes a direct-immersion design that seats directly into the factory engine core plug port. By submerging a corrosion-resistant heating element into the internal water jacket, it establishes natural thermal siphon convection throughout the cylinder block and heads. This conductive heat migration keeps the oil galleries warm, preventing starvation at the roller lifters upon start-up and eliminating cold-cranking drag. Built with a solid brass retaining body to resist electrochemical corrosion, it features a heavy-duty, silicone-insulated 7-foot power cord routed safely from high-temperature exhaust headers to an external 120V standard outlet.

Technical Specifications

Compatibility

• 2005-2008 Dodge Magnum R/T (5.7L HEMI V8, RWD / AWD)
• Note: Incompatible with 2.7L V6, 3.5L V6, and 6.1L SRT8 models.

Frequently Asked Questions

Does this fit the LX Magnum?

Yes, this is a direct fit for the 2005-2008 Dodge Magnum equipped with the 5.7L HEMI engine.

Does installing this block heater require draining the cooling system?

Yes, the cooling system must be partially drained because the heating element mounts directly into an engine block freeze plug port.

The Dodge Muscle Standard

Keep your Hemi powerplant firing instantly in harsh winter conditions, ensuring rapid oil circulation to maintain mechanical integrity and deliver immediate V8 torque when you turn the key.
