Aluminum Radiator for Toyota Sienna (2007-2010) 3.5L

Heavy-Duty 3-Row Aluminum Performance Radiator for 2007-2010 Toyota Sienna (XL20)

What it Does: The all-aluminum 3-row performance radiator replaces the failure-prone factory plastic-tank radiator on the 2007-2010 Sienna to maximize heat dissipation and eliminate coolant leaks during heavy load or towing.

The Stock Toyota Sienna Radiator Failure Point

The factory radiator on the second-generation XL20 chassis utilizes stamped aluminum cores crimped to molded composite plastic end tanks. Over repeated thermal heat cycles, the 3.5L engine bay generates substantial localized under-hood temperatures that cause these plastic end tanks to embrittle, craze, and rupture along the crimp seam. Furthermore, high-mileage minivans operating under family hauling or towing duty suffer from internal sediment blockage and micro-fractures near the inlet and outlet necks, resulting in catastrophic loss of coolant, head gasket warping, and severe engine overheating.

The Engineering Solution

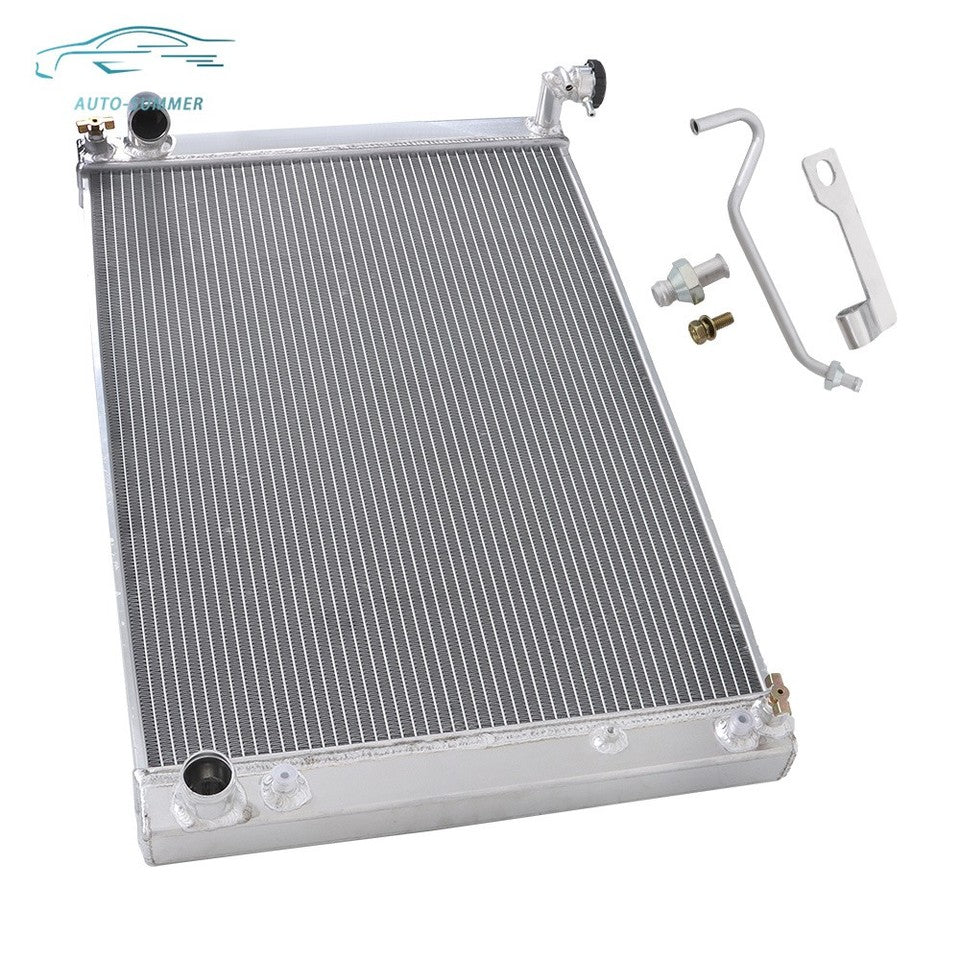

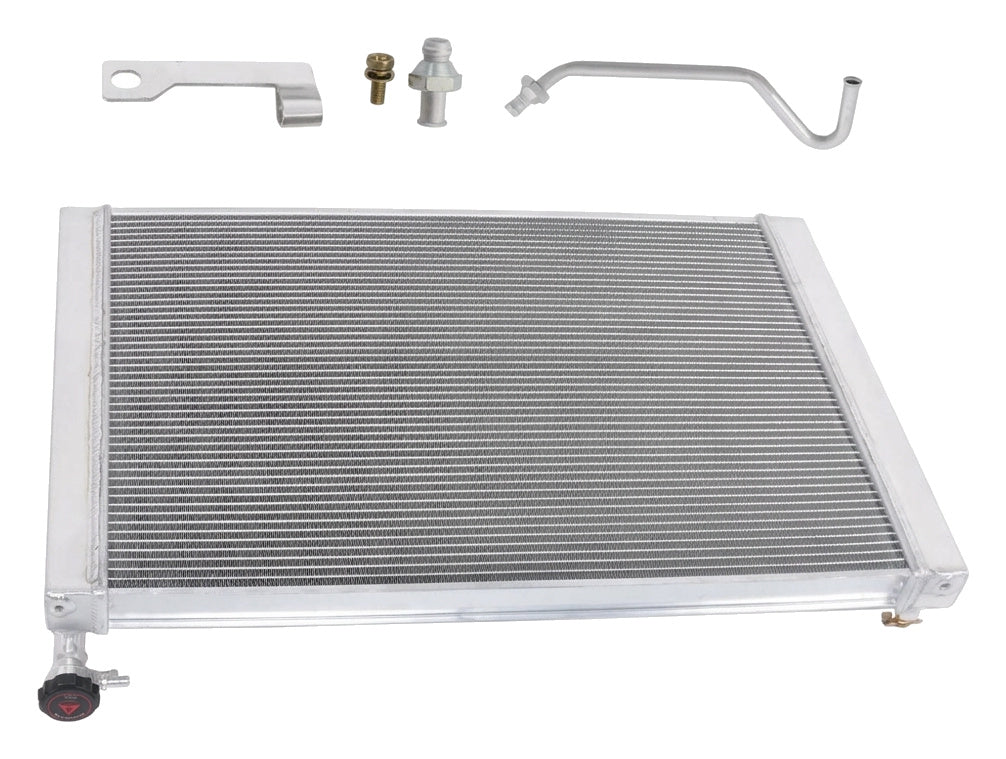

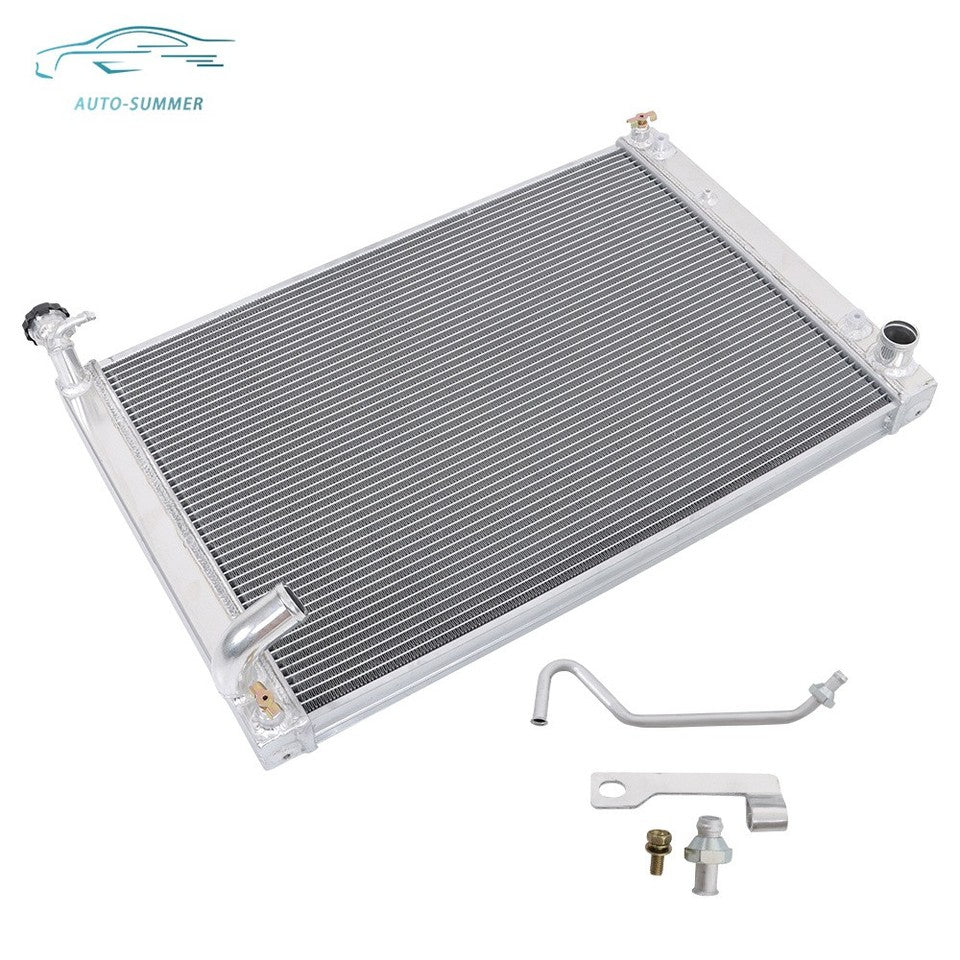

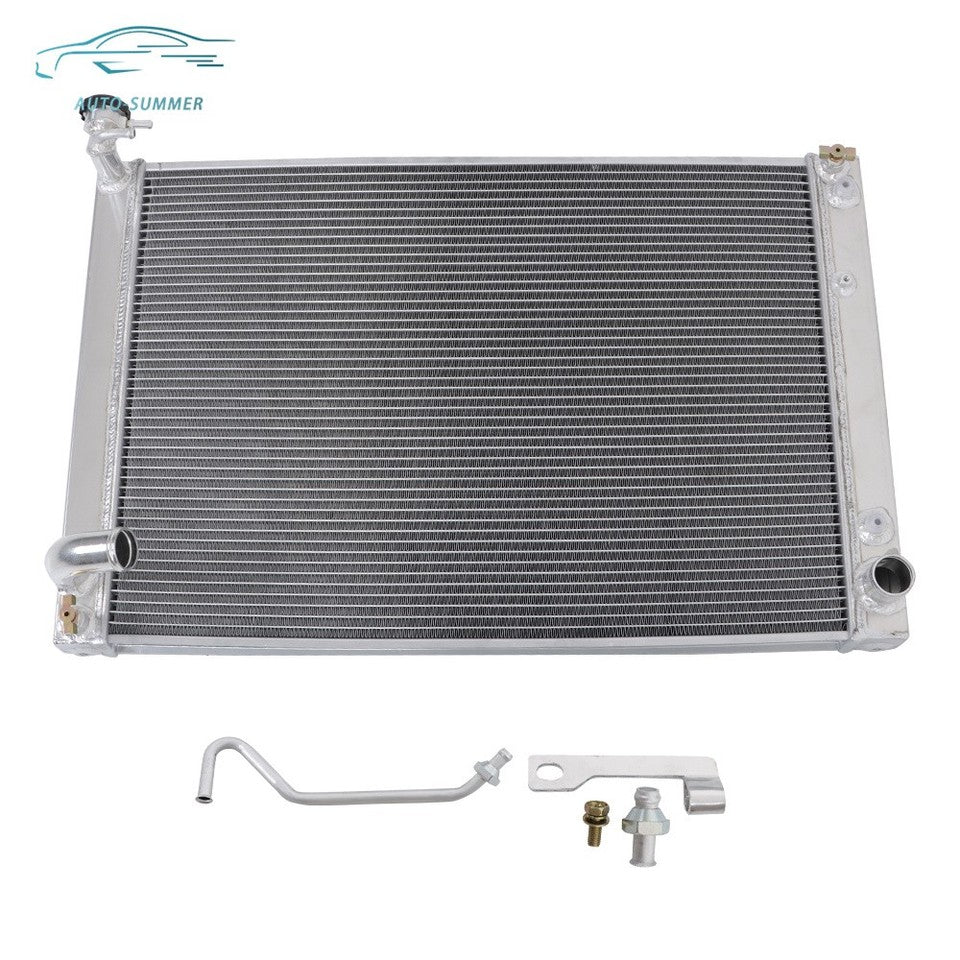

This high-efficiency replacement features a 100% all-aluminum 3-row tube-and-fin core joined to heavy-gauge aluminum end tanks with precise, robotic TIG-welded seams, eliminating vulnerable elastomeric gaskets and plastic seam crimps entirely. By substituting plastic with aircraft-grade aluminum, the unit yields higher thermal conductivity, resists elevated operational pressures, and provides superior resistance to mechanical vibration and road debris. Designed as a direct bolt-in cooling upgrade, it preserves factory hose routing, engine bay clearances, and transmission cooler provisions without requiring core support modifications.

What's Included

• 1 x All-aluminum 3-row radiator assembly
• Protective caps on fluid ports

Technical Specifications

Compatibility

• 2007 Toyota Sienna 3.5L V6 (CE, LE, XLE, Limited)
• 2008 Toyota Sienna 3.5L V6 (CE, LE, XLE, Limited)
• 2009 Toyota Sienna 3.5L V6 (CE, LE, XLE, Limited)
• 2010 Toyota Sienna 3.5L V6 (CE, LE, XLE, Limited)

Frequently Asked Questions & Fitment Warnings

Does this fit the XL20 Sienna?

Yes, this is a direct fit for the 2007-2010 Toyota Sienna equipped with the 2GR-FE 3.5L engine. This product is specified exclusively for the 3.5L V6 models and will not fit earlier 3.3L (3MZ-FE) variants or universal applications.

Do I need to bleed the cooling system after installing this radiator?

Yes, thoroughly flush the cooling system, refill it with OEM-spec 50/50 coolant, and execute a full air purge to prevent air pockets from causing hot spots in the cylinder heads.

The Toyota Durability Standard

Engineered to handle sustained highway climbs, passenger loads, and heavy-duty towing duty, this all-aluminum cooling system upgrade safeguards your 2GR-FE engine against high-temperature stress and cyclic heat-soak failure.
