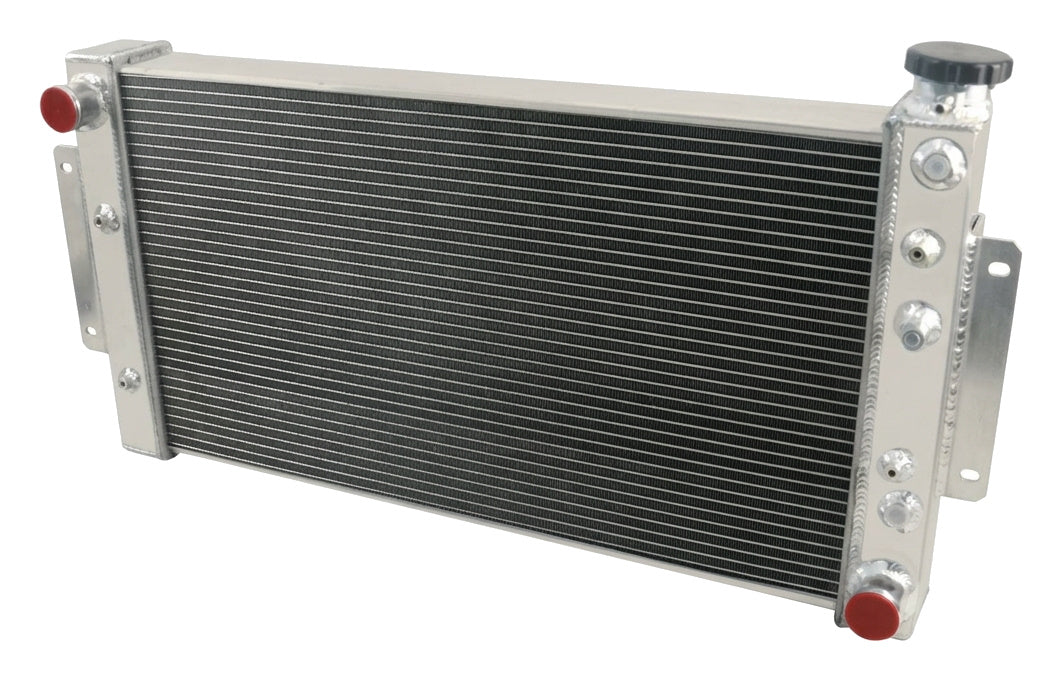

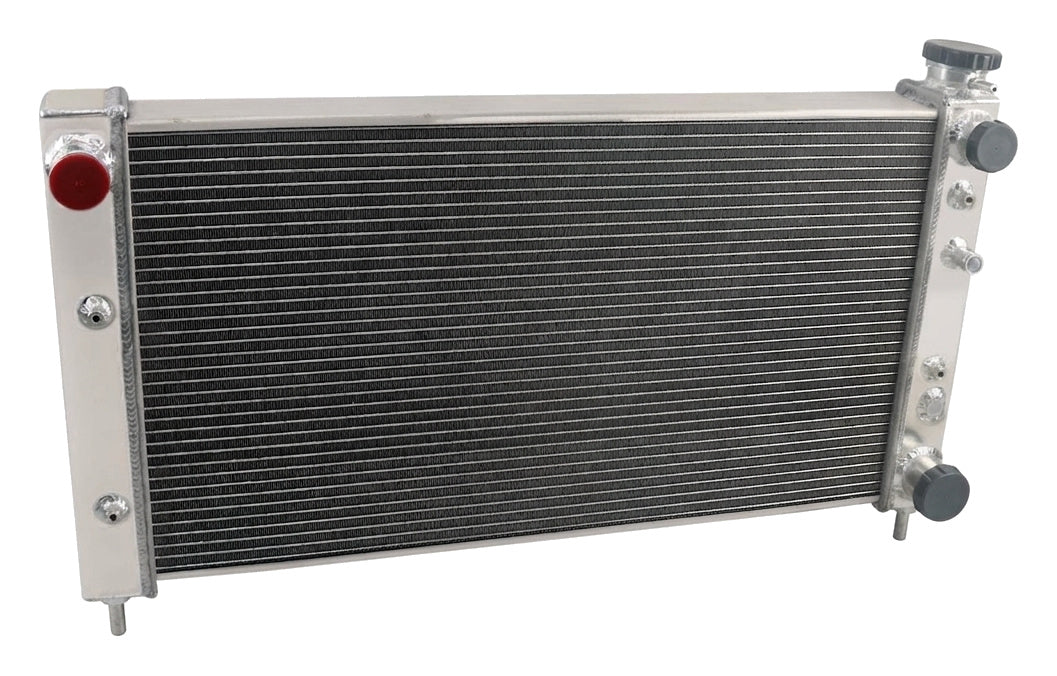

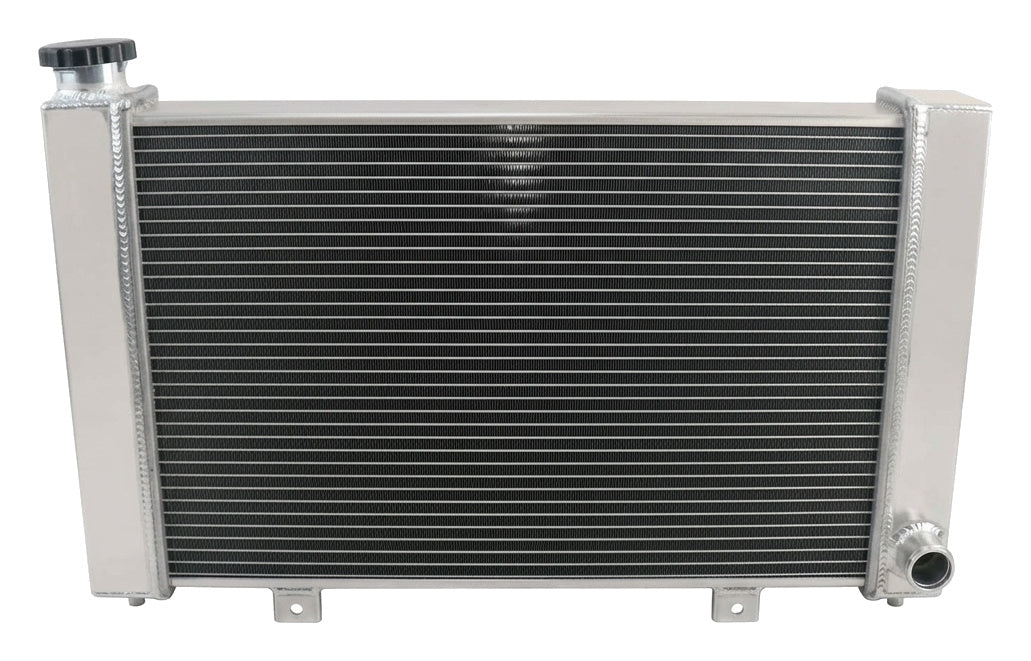

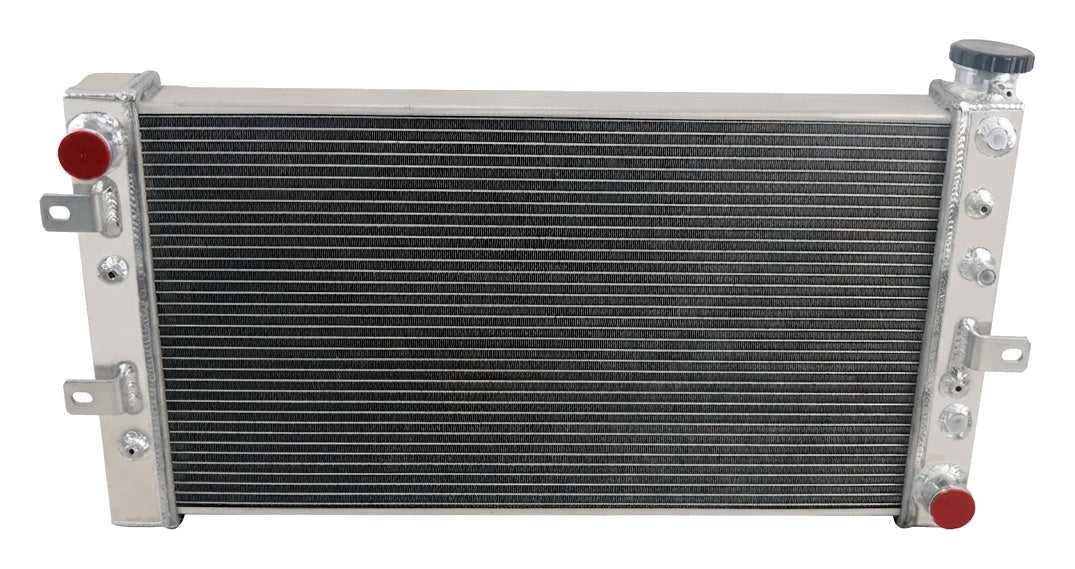

Aluminum Radiator for Oldsmobile Bravada (1991-1994) 4.3L

High-Efficiency 4-Row Aluminum Radiator for 1991-1994 Oldsmobile Bravada

Direct-Fit Cooling Upgrade: Engineered to eliminate thermal throttling and cooling system failure by replacing the failure-prone factory composite heat exchanger with an all-aluminum multi-core assembly.

The Stock Bravada Thermal Bottleneck

Factory GMT330 cooling modules rely on crimped composite-plastic end tanks mated to a lightweight core with elastomeric O-rings. Over decades of continuous thermal cycling, these plastic tanks oxidize, becoming brittle and developing hairline stress fractures at the transmission oil cooler fittings and tank seams. Furthermore, restricted factory tube profiles are prone to mineral scale accumulation, severely degrading heat rejection capacity when the 4.3L V6 is under sustained load or towing with the SmartTrak AWD system engaged.

The Engineering Solution

This replacement radiator utilizes a heavy-duty 4-row furnace-brazed core constructed from aircraft-grade aluminum, paired with hand TIG-welded 5052 aluminum end tanks. By removing mechanical crimp seams and composite plastics, structural integrity is preserved under elevated cooling system pressures. The high-density louvered fin pack and multi-pass wide-tube configuration maximize core contact surface area, dramatically accelerating heat rejection and maintaining stable coolant temperatures even under heavy payload demands.

Technical Specifications

Compatibility

• 1991 Oldsmobile Bravada Base 4.3L V6 (LB4 TBI) AWD
• 1992 Oldsmobile Bravada Base 4.3L V6 (L35 CPI) AWD
• 1993 Oldsmobile Bravada Base 4.3L V6 (L35 CPI) AWD
• 1994 Oldsmobile Bravada Base 4.3L V6 (L35 CPI) AWD

The Oldsmobile Durability Standard

Built for rugged utility and sustained drivetrain load, this all-aluminum cooling upgrade provides the thermal overhead required for reliable hauling, towing, and daily all-wheel-drive operation without risk of tank separation.
