Aluminum Radiator for Lincoln Navigator (2003-2004) 5.4L

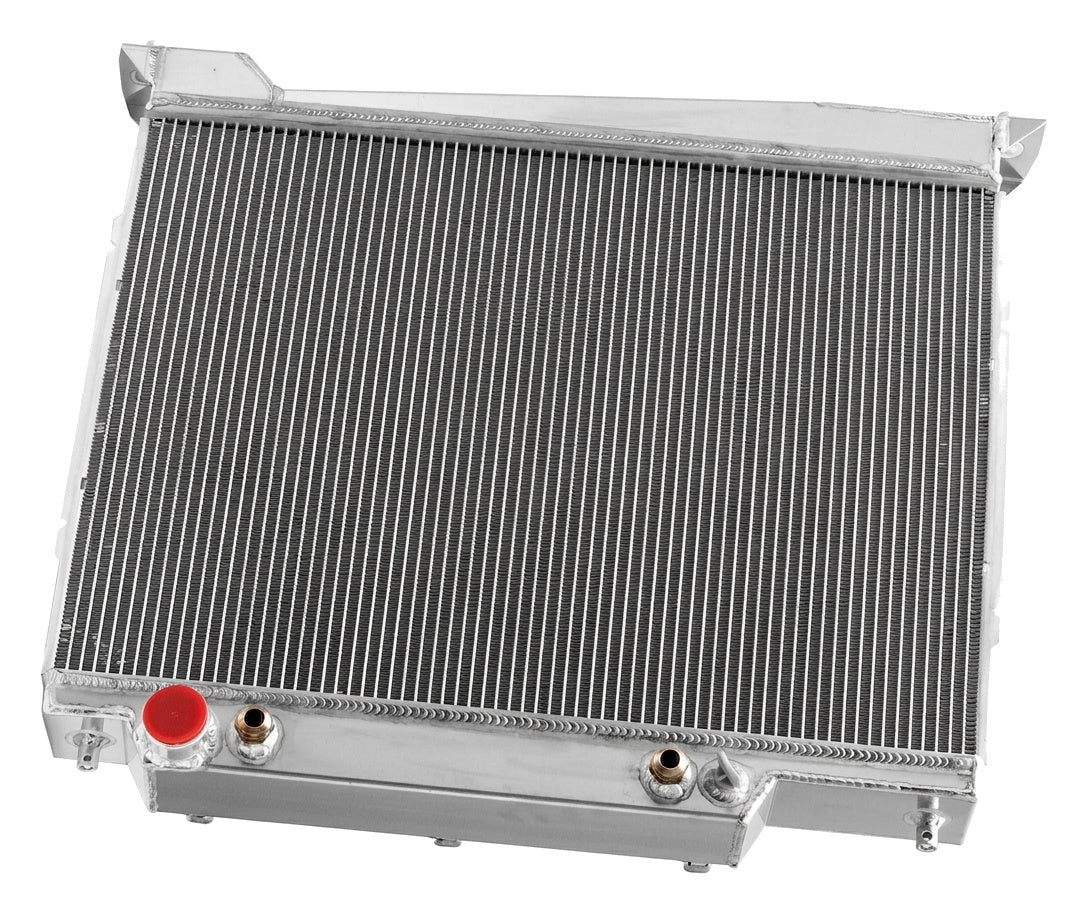

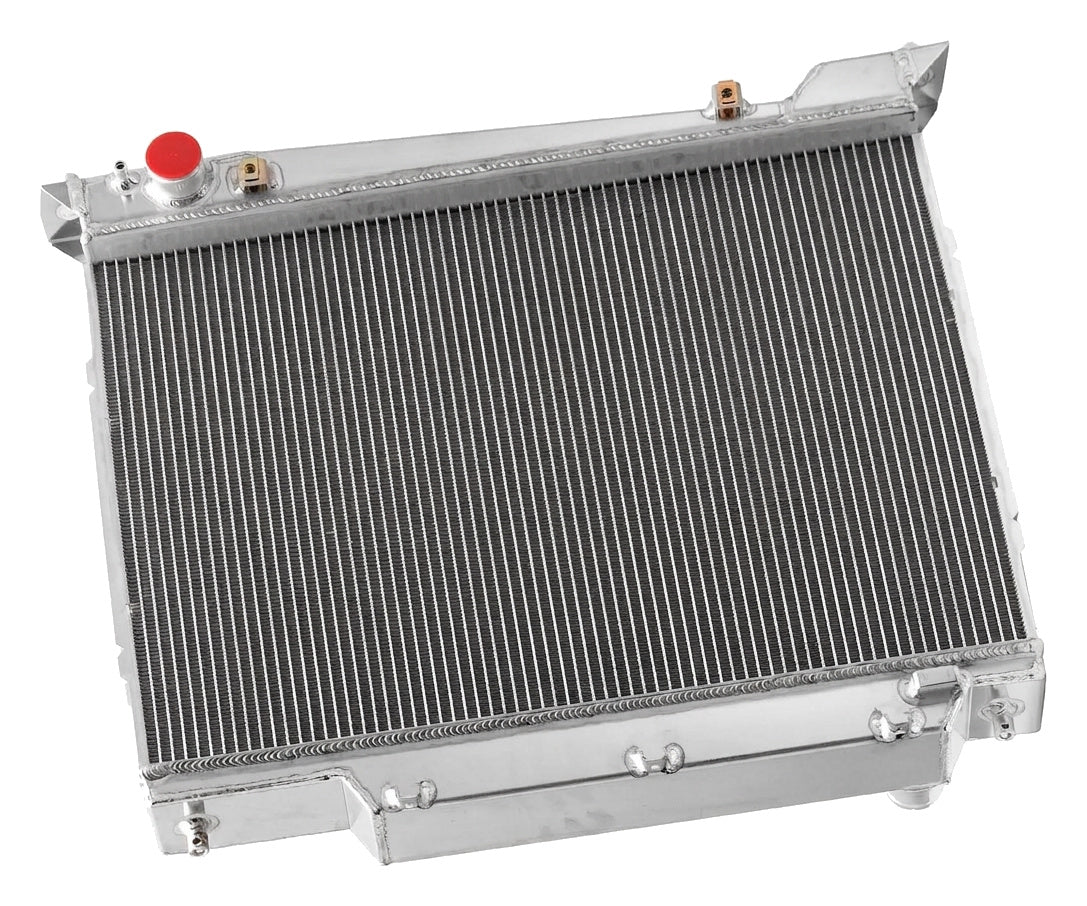

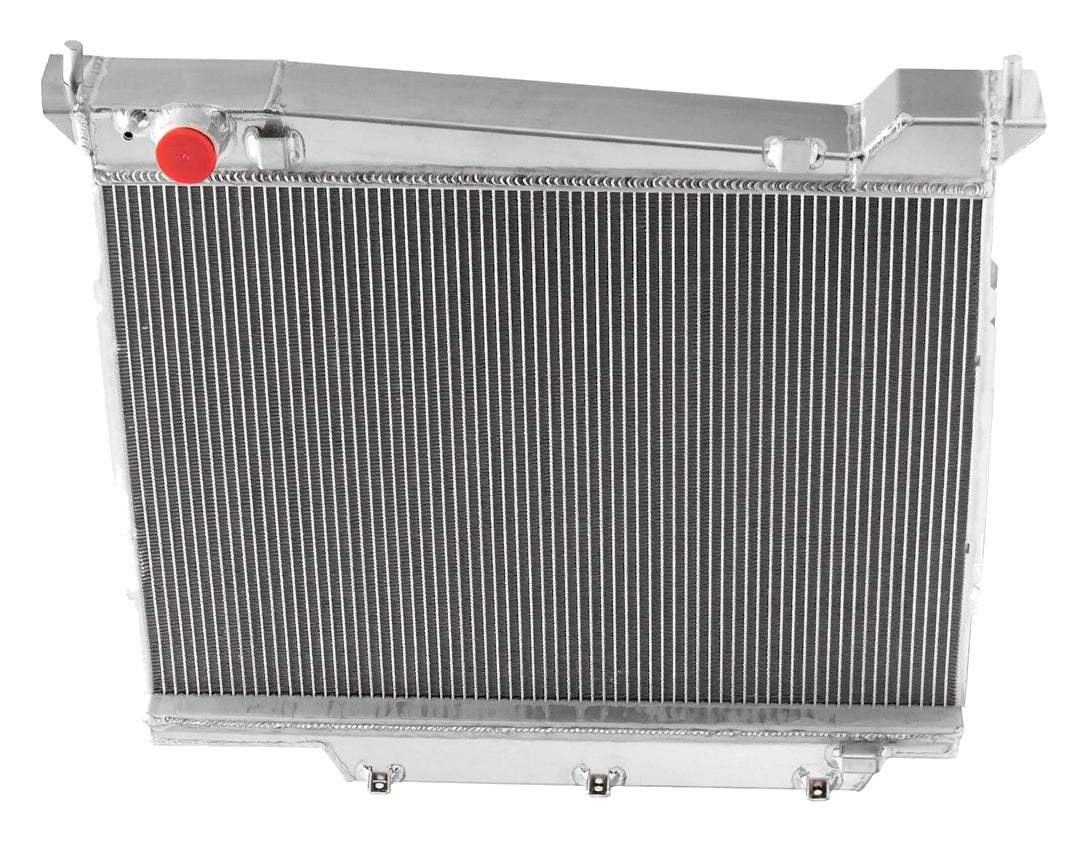

Heavy-Duty 4-Row Aluminum Radiator for 2003-2004 Lincoln Navigator

Engineered Cooling Upgrade: Replaces the failure-prone factory radiator with an all-aluminum 4-row core to maximize thermal rejection and stabilize operating temperatures under severe towing loads.

The Stock Navigator Plastic End Tank Vulnerability

The factory cooling unit on the U228 platform relies on a thin core crimped to composite nylon end tanks. Repeated thermal expansion cycles embrittle these polymer tanks over time, leading to micro-fractures around the inlet neck and catastrophic seam blowouts. Furthermore, the OEM core capacity lacks sufficient fluid volume, making the 32-valve modular engine vulnerable to rapid heat soak under heavy payload or high ambient trailer pulling.

The Engineering Solution

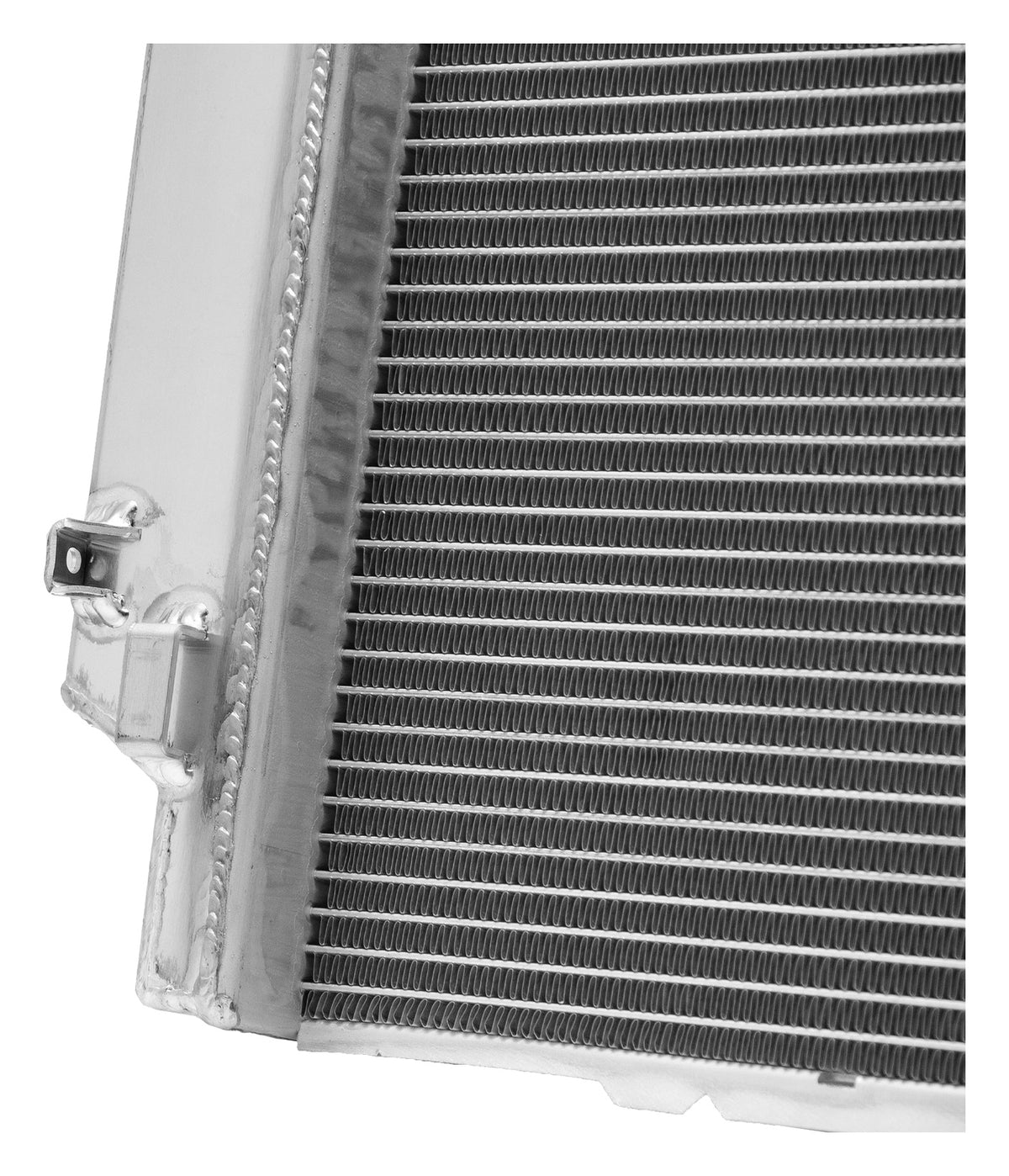

This high-efficiency replacement features a fully brazed, 4-row aluminum tube-and-fin core matched with hand TIG-welded aluminum end tanks, permanently eliminating brittle plastic seams and leak-prone rubber gaskets. The expanded core depth increases overall cooling capacity and surface area, optimizing laminar fluid crossflow for superior heat dissipation. Built as a direct-fit component, it drops into factory mounting locations while integrating proper clearance for the engine shroud and cooling fan assembly.

Technical Specifications

Compatibility

• 2003 Lincoln Navigator Base 5.4L V8
• 2003 Lincoln Navigator Luxury 5.4L V8
• 2003 Lincoln Navigator Ultimate 5.4L V8
• 2004 Lincoln Navigator Base 5.4L V8
• 2004 Lincoln Navigator Ultimate 5.4L V8

The Lincoln Durability Standard

Built to handle the rigorous demands of full-size towing and high-payload transport, this all-aluminum unit provides dependable thermal efficiency to protect your modular V8 against head gasket failure and cooling system breakdown.
